Underfloor Heating Manifold 2 Loops with NC 230V Actuators
Price: 165.20 €
| Products ID: | 171968 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000260379 |
Delivery options to:
Choose countryThe 2-loop underfloor heating manifold set serves as the control centre for floor heating, enabling individual zone control and balanced water flow distribution.
Key Features

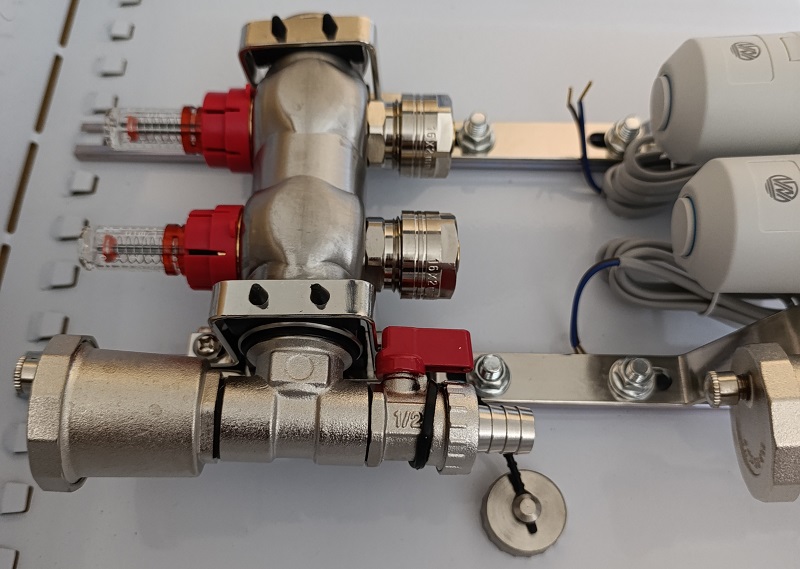

- Equipped with 2 flow meters for flow monitoring and pressure balancing
- Includes 2 NC (normally closed) AC 230V thermal actuators
- Low energy consumption of only 2W per thermal actuator
- Flush-mounting metal cabinet with lockable door opening up to 135 degrees
- Supplied with 16mm heating pipe adapters and air vent nodes
| Number of loops | 2 |
|---|---|
| Installation type | Flush mounting |
| Cabinet dimensions | 640 x 530 x 118 mm |
| Cabinet depth | 110 mm |
| Door dimensions | 578 x 475 mm |
| Cabinet color | Light gray |
| Flow meters | 2 pcs |
| Thermal actuators | 2 pcs |
| Air vent nodes | 2 pcs |
| Pipe adapters | 2 pcs (16 mm) |
| Actuator operating type | NC (normally closed) |
| Operating voltage | AC 230V, 50/60Hz |
| Power consumption | 2W |
| Starting current | Max. 300mA |
| Actuator adapter | VA80 (M30 thread) |
| Cable length | 90 cm |
| Protection rating | IP54 |
| Operating temperature | 0°C ~ +60°C |
| Actuator dimensions | Ø49.4 mm x 56.6 mm |
What is included in the package?

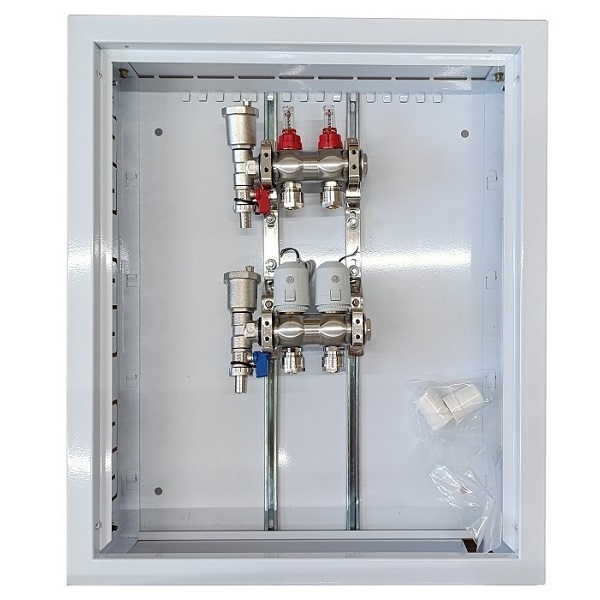

The package includes a flush mounting metal box, a 2-loop manifold, 2 flow meters, 2 NC AC230V thermal actuators, 2 air vent nodes, and two 16mm heating pipe adapters.
What thermostats are compatible with these thermal actuators?
The normally closed (NC) AC 230V actuators work with any type of programmable or non-programmable room thermostats.
