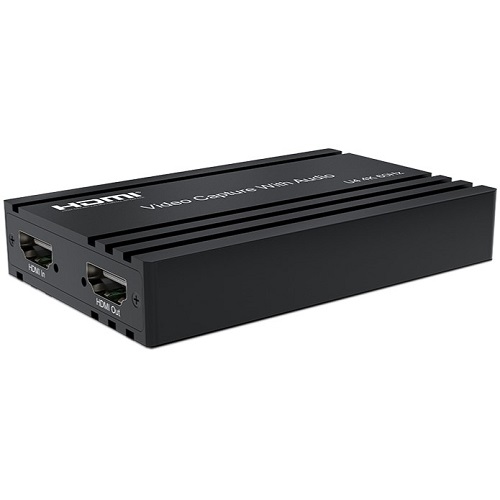

Video Capture Card with HDMI Loop, USB 3.0, 4K 60Hz
Price: 107.90 €
| Products ID: | 171977 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000916023 |
Delivery options to:

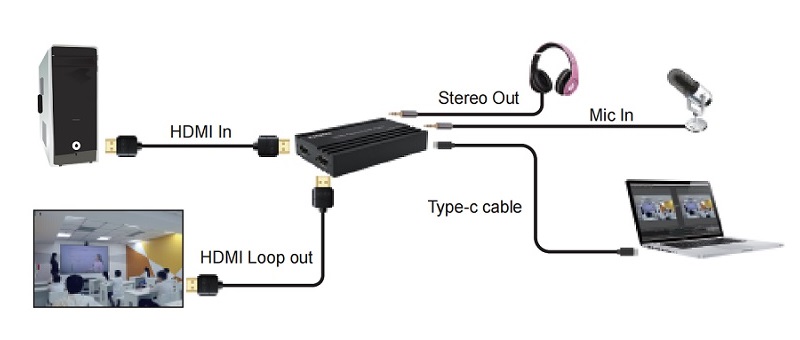

Choose countryThis HDMI video capture device captures HDMI video and audio signals with microphone audio mixing, allowing transmission to a computer or smartphone for live preview and recording at resolutions up to 4K@60Hz.
Key Features
- Supports input and output resolutions up to 4K@60Hz with HDR10 and HDCP 2.2 / HDCP 1.4
- HDMI 2.0 loop-out port for real-time passthrough display
- Dedicated 3.5 mm microphone audio input and 3.5 mm stereo audio output
- Supported video formats: MJPEG, YUY2, NV12, I420, and XRGB
- Plug & Play operation with no driver installation required via USB Type-C
- Compatible with Windows and MacOS operating systems, as well as OBS, VLC, and Vmix software
| Maximum Input Resolution | 4K@60Hz (4:4:4) |
|---|---|
| Maximum Output Resolution | 4K@60Hz |
| Input Interfaces | HDMI 2.0, 3.5 mm Microphone input |
| Output Interfaces | HDMI 2.0 Loop-out, USB Type-C (5Gbps), 3.5 mm Audio output |
| Supported Video Formats | MJPEG / YUY2 / NV12 / I420 / XRGB |
| Standards | UVC, UAC, HDCP 2.2, HDCP 1.4, HDR10 |
| Maximum Data Transfer Rate | 18Gbps |
| Maximum Bandwidth | 600MHz |
| Power Supply | 5V DC, max. 0.7A (via USB Type-C) |
| OS Compatibility | Windows, MacOS |
Does this capture card require driver installation?
No, it features Plug & Play functionality and works without installing drivers.
What streaming and recording software is supported?
It is compatible with popular software including OBS, Potplayer, VLC, and Vmix.
What is the maximum supported HDMI cable length?
It supports standard HDMI AWG26 cables up to 5 meters in length.
