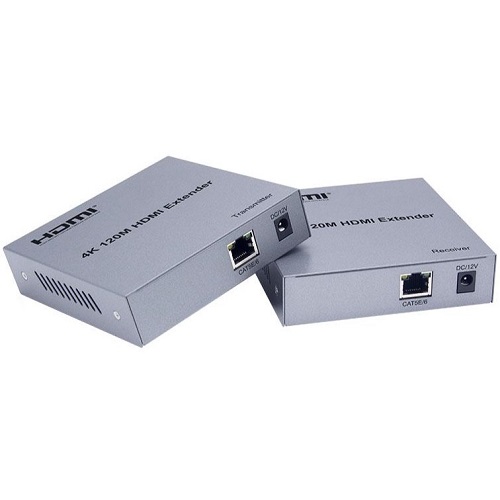

HDMI Extender over Cat5e/Cat6 up to 120m, 4K, POC, IR, Loop-Out
Price: 107.90 €
| Products ID: | 171979 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000916184 |
Delivery options to:
Choose countryThis HDMI extender transmits high-definition video and audio signals up to 120 meters using a single Cat5e or Cat6 Ethernet cable instead of a long HDMI cable.
Key Features
- Supports HDMI transmission up to 120 meters over Cat5e/Cat6
- Supports resolutions up to 4K, HDMI 1.4, and HDCP 1.4 standards
- POC (Power Over Cable) powers both transmitter and receiver from a single power source
- Local HDMI loop-out on the transmitter for a nearby display
- Dedicated 3.5mm stereo audio output on both TX and RX units
- IR pass-through support for remote device control
- Plug and play installation with no drivers or software required
| Max Transmission Distance | 120m (Cat5e / Cat6) |
|---|---|
| Supported Resolutions | 4K / 1080p / 720p / 576p / 576i / 480p / 480i |
| HDMI Version | 1.4 |
| HDCP Version | 1.4 |
| Max Bandwidth | 340MHz |
| Max Data Rate | 3x3.4Gbps |
| Audio Output | 3.5mm stereo (TX and RX) |
| Power Supply | POC (Power Over Cable), DC 12V |
| Operating Temperature | 0°C ~ +45°C |
| Dimensions | 107 x 105 x 27.3 mm |
| Weight | TX: 250g; RX: 248g |
| Warranty | 24 months |
What cable is required to connect the transmitter and receiver?
It requires a single Cat5e or Cat6 Ethernet network cable up to 120 meters in length.
Does each unit require its own power adapter?
No, POC (Power Over Cable) technology allows both the TX and RX units to be powered from a single 12V power supply.
Can I connect a monitor next to the video source?
Yes, the transmitter unit includes an HDMI loop-out port for connecting a local display.
