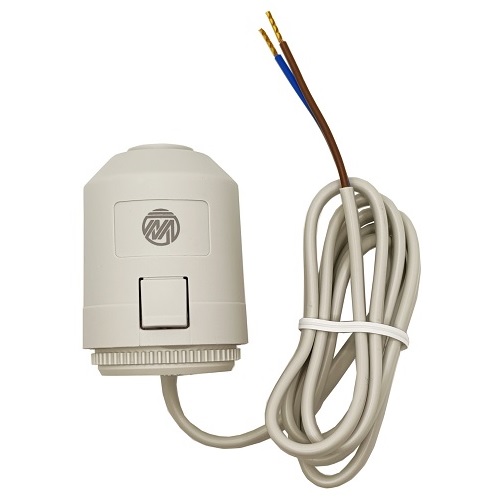

Thermal Actuator NC, 230V AC, M30 (VA80)
Price: 17.90 €
| Products ID: | 171902 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000260492 |
Delivery options to:
Choose countryThe electric thermal actuator is designed for controlling heat distribution equipment in water heating systems. It receives signals from room thermostats or hub controllers to adjust water flow.
Key Features
- Operating state: NC (normally closed)
- Works with programmable and non-programmable room thermostats
- Simple installation on manifolds via VA80 thread adapter (M30 standard thread)
- Low power consumption: 2W
- Protection rating: IP54
| Purpose | Water heating system |
|---|---|
| Operating type | NC (normally closed) |
| Operating voltage | AC 230V, 50/60Hz |
| Starting current | Max. 300mA |
| Power consumption | 2W |
| Adapter | VA80 (M30) |
| Cable length | 90 cm |
| Operating temperature | 0°C ~ +60°C |
| Storage temperature | -25°C ~ +65°C |
| Operating humidity | < 80% RH (non-condensing) |
| Safety class | IP54 |
| Dimensions | Ø49.4 mm x 56.6 mm |
What is the operating state of this thermal actuator?
The actuator operates in NC (normally closed) state.
What adapter is included for mounting?
It connects to the manifold via a VA80 thread adapter suitable for standard M30 thread.
