Underfloor Heating Manifold 3 Loops with NC 230V Thermal Actuators and Flow Meters

Price: 206.60 €

Products ID:	171969
Manufactured by:	Hismart
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000260386

Delivery options to:

Choose country

Underfloor heating manifold set for 3 loops equipped with NC thermal actuators and flow meters enables efficient zone temperature regulation and flow balancing.

Key Features

3-loop manifold with flow indicators for monitoring water flow and balancing pressure
NC (normally closed) AC 230V thermal actuators with 2W energy consumption
Compatible with programmable and non-programmable room thermostats
Flush-mounting metal cabinet with lockable door opening up to 135 degrees
Includes VA80 (M30 thread) valve adapters and 16mm heating pipe connectors

Number of loops	3
Cabinet dimensions	640x530x118mm
Cabinet depth	110mm
Door dimensions	578mm x 475mm
Installation type	Flush mounting
Cabinet color	Light gray
Flow meters quantity	3 pcs
Thermal actuators quantity	3 pcs
Air vent nodes	2 pcs
Pipe adapters	16mm (3 pcs)
Actuator operating type	NC (normally closed)
Actuator voltage	AC 230V, 50/60Hz
Power consumption	2W
Starting current	max. 300mA
Actuator adapter	VA 80 (M30 thread)
Cable length	90cm
Safety class	IP54
Actuator dimensions	Ø49.4mm x 56.6mm
Operating temperature	0°C ~ +60°C

What type of actuators are included in this set?

The set includes 3 normally closed (NC) thermal actuators operating on AC 230V (50/60Hz) with 2W power consumption.

What is included in the package?

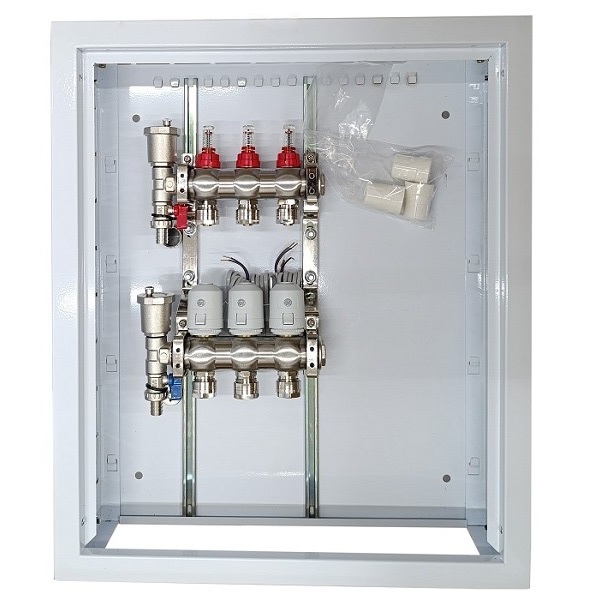

The package contains a flush-mounting metal box, a 3-loop collector, 3 flow meters, 3 NC AC 230V thermal actuators, 2 air vent nodes, and 3 adapters for 16mm heating pipes.
