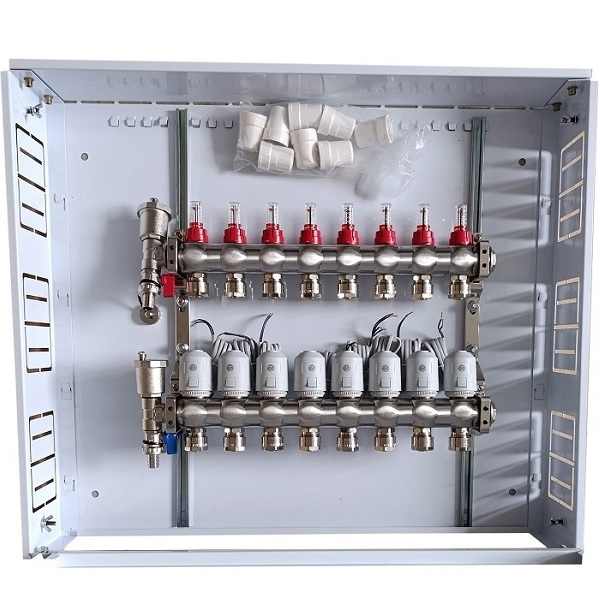

Underfloor Heating Manifold 8 Loops with NC 230V Actuators
Price: 408.00 €
| Products ID: | 172370 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000260430 |
Delivery options to:
Choose countryThe underfloor heating manifold set with 8 loops provides central control and distribution for zoned water heating systems.
Key Features

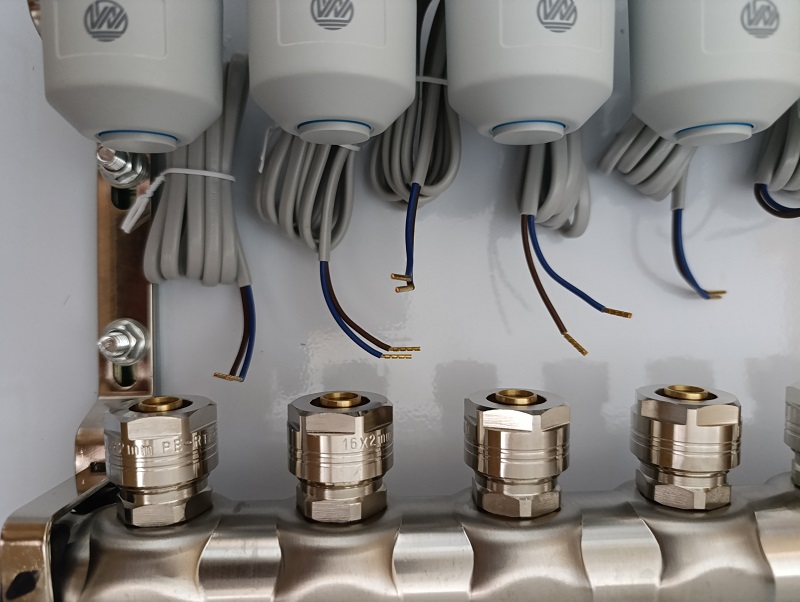

- Complete set with 8-loop collector, flow meters, and NC AC 230V thermal actuators
- Low energy consumption of 2W per thermal actuator
- Flush-mounting metal cabinet with lockable door opening up to 135 degrees
- Includes 16mm pipe adapters and 2 air vent nodes
| Number of loops | 8 |
|---|---|
| Actuator operating type | NC (normally closed) |
| Operating voltage | AC 230V, 50/60Hz |
| Power consumption | 2W |
| Flow meters | 8 pcs |
| Thermal actuators | 8 pcs |
| Air vent nodes | 2 pcs |
| Pipe adapters | 16 mm (8 pcs) |
| Thread adapter | VA80 (M30) |
| Safety class | IP54 |
| Cable length | 90 cm |
| Cabinet mounting | Flush mounting |
| Cabinet dimensions | 745 mm x 645 mm x 118 mm |
| Color | Light gray |
What type of thermal actuators are included?
The set includes normally closed (NC) thermal actuators operating at AC 230V with a power consumption of 2W each.
What size pipe adapters are included in the package?
The set includes 8 adapters designed for 16mm heating circuit pipes.
