Underfloor Heating Manifold 7 Loops with NC AC230V Thermal Actuators & Flow Meters

Price: 360.00 €

Products ID:	172363
Manufactured by:	Hismart
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000260423

Delivery options to:

Choose country

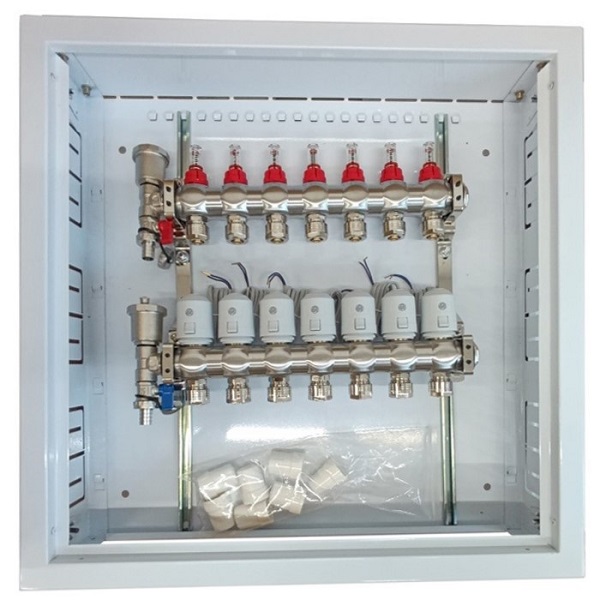

This underfloor heating manifold set for 7 loops serves as the distribution centre for heating zones. The package includes a flush mounting metal cabinet, a 7-loop collector, flow meters, and NC AC230V thermal actuators.

Key Features

7-loop distribution: enables individual control of water flow across designated heating zones.

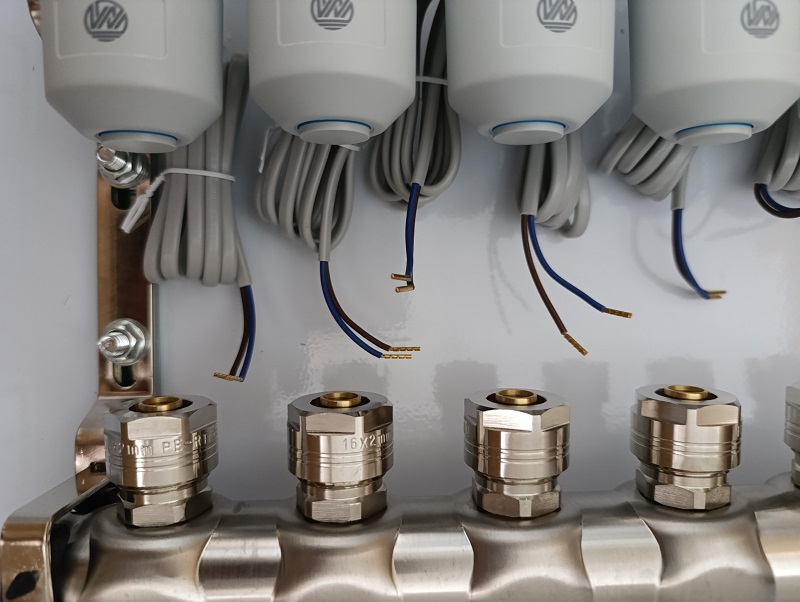

NC AC230V thermal actuators: normally closed actuators with a 2W power rating and standard VA80 adapters.
Flow meters: allow visual monitoring of water flow and pressure balancing.
Flush mounting box: durable metal cabinet with locking door that opens up to 135 degrees.

Number of loops	7
Installation type	Flush mounting
Cabinet dimensions	640 x 640 x 118 mm
Door dimensions	580 x 580 mm
Thermal actuators quantity	7 pcs.
Actuator operating type	NC (normally closed)
Operating voltage	AC 230V, 50/60Hz
Actuator power consumption	2W
Protection class	IP54
Flow meters quantity	7 pcs.
Air vent nodes	2 pcs.
Pipe adapters	16 mm (7 pcs.)
Cable length	90 cm

What is included in the package?

The set includes a flush mounting metal cabinet, a 7-loop manifold, 7 flow meters, 7 NC AC230V thermal actuators, 2 air vent nodes, and 7 16mm pipe adapters.

What are the electrical specifications of the thermal actuators?

The actuators operate at AC 230V (50/60Hz), consume 2W of power, and have a normally closed (NC) operating state.
