Underfloor Heating Manifold 6 Loops with NC AC230V Actuators & Flow Meters

Price: 324.00 €

Products ID:	172362
Manufactured by:	Hismart
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000260416

Delivery options to:

Choose country

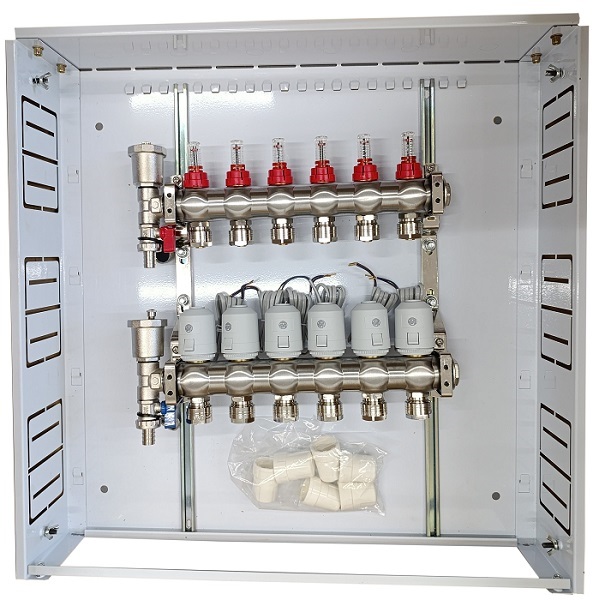

This 6-loop underfloor heating manifold serves as the central control unit for hydronic floor heating systems, providing balanced water flow distribution across individual zones.

Key Features

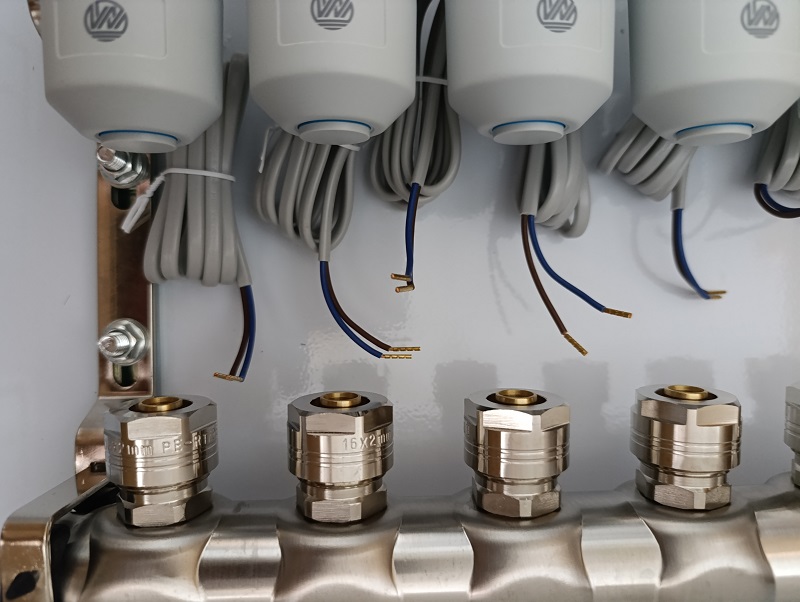

Includes 6 NC (normally closed) AC 230V thermal actuators with 2W power consumption
Equipped with 6 flow meters for real-time flow monitoring and pressure balancing
Flush-mounting metal cabinet with lockable door opening up to 135 degrees
VA80 thread adapter connects to standard M30 valve threads
Includes 2 air vent nodes and 6 pipe adapters for 16 mm heating circuits

Number of loops	6
Number of flow meters	6 pcs
Number of thermal actuators	6 pcs
Actuator operating state	NC (normally closed)
Actuator operating voltage	AC 230V, 50/60Hz
Actuator power consumption	2W
Actuator starting current	max. 300mA
Actuator ingress protection	IP54
Actuator cable length	90 cm
Thread adapter	VA80 (M30)
Cabinet installation	Flush mounting
Cabinet dimensions	640 x 640 x 118 mm
Cabinet depth	110 mm
Cabinet door dimensions	580 x 580 mm
Cabinet color	Light gray
Pipe adapters	16 mm (6 pcs)
Air vent nodes	2 pcs
Operating temperature	0°C ~ +60°C

What are the electrical specifications of the thermal actuators?

The actuators operate in an NC (normally closed) state on AC 230V (50/60Hz) power with a power consumption of 2W and a maximum starting current of 300mA.

What pipe size do the included adapters support?

The set includes 6 adapters designed for 16 mm heating circuit pipes.

What are the dimensions of the metal manifold box?

The flush-mounting box measures 640 x 640 x 118 mm with a depth of 110 mm, and its door measures 580 x 580 mm.
