Underfloor Heating Manifold 5 Loops with NC AC230V Actuators and Flow Meters
Price: 288.00 €
| Products ID: | 172361 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000260409 |
Delivery options to:

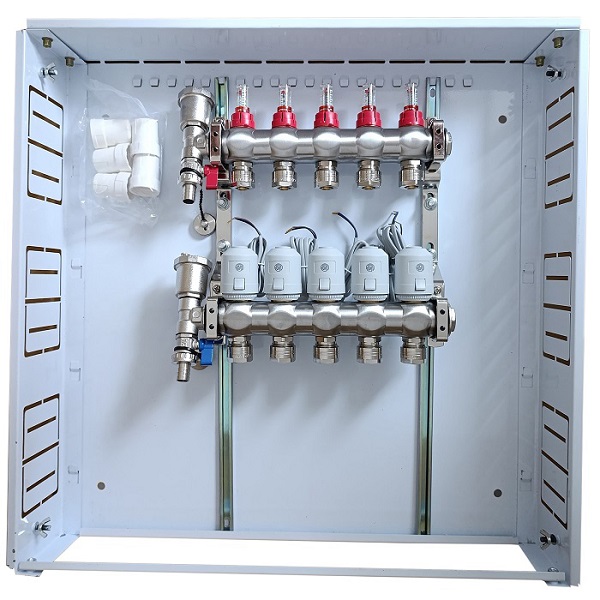

Choose countryThis underfloor heating manifold set for 5 loops serves as the central control unit for zone-based water flow and temperature regulation.
Key Features
- Complete set includes 5-loop collector, flow meters, NC AC230V thermal actuators, and flush-mounting metal box

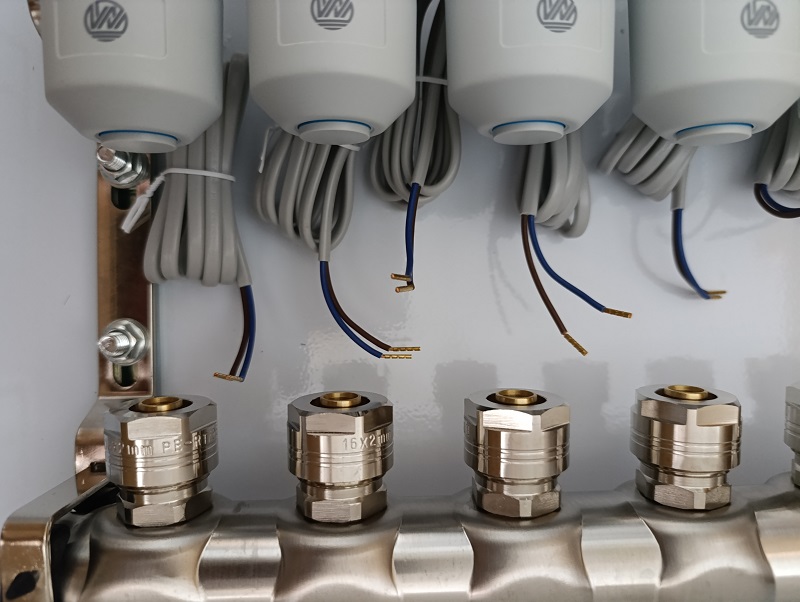

- Normally closed (NC) thermal actuators with 2W energy consumption and VA80 (M30) thread adapter
- Flow meters for water flow monitoring and pressure adjustments
- Flush-mounting metal cabinet with lockable door opening at 135 degrees
- Includes 16mm pipe connection adapters for heating circuits
| Number of loops | 5 |
|---|---|
| Cabinet installation | Flush mounting |
| Cabinet size | 640 x 640 x 118 mm |
| Cabinet depth | 110 mm |
| Door dimensions | 580 x 580 mm |
| Cabinet color | Light gray |
| Number of flow meters | 5 pcs |
| Number of thermal actuators | 5 pcs |
| Air vent nodes | 2 pcs |
| Pipe adapters | 5 pcs (16 mm) |
| Actuator operating type | NC (normally closed) |
| Actuator operating voltage | AC 230V, 50/60Hz |
| Actuator power consumption | 2W |
| Actuator starting current | max. 300mA |
| Adapter type | VA80 (M30) |
| Cable length | 90 cm |
| Protection class | IP54 |
| Operating temperature | 0°C ~ +60°C |
| Storage temperature | -25°C ~ +65°C |
| Operating humidity | < 80% RH |
| Actuator dimensions | Ø49.4 mm x 56.6 mm |
What is the operating voltage and state of the thermal actuators?
The thermal actuators operate at AC 230V (50/60Hz) with 2W power consumption and are in a normally closed (NC) state.
What pipe size are the included adapters designed for?
The set includes 5 adapters designed for 16mm heating circuit pipes.
What are the dimensions of the manifold cabinet?
The cabinet measures 640 x 640 x 118 mm with a depth of 110 mm, and the door measures 580 x 580 mm.
