Underfloor Heating Manifold 4 Loops with NC AC230V Actuators and Flow Meters
Price: 241.70 €
| Products ID: | 172360 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000260393 |
Delivery options to:

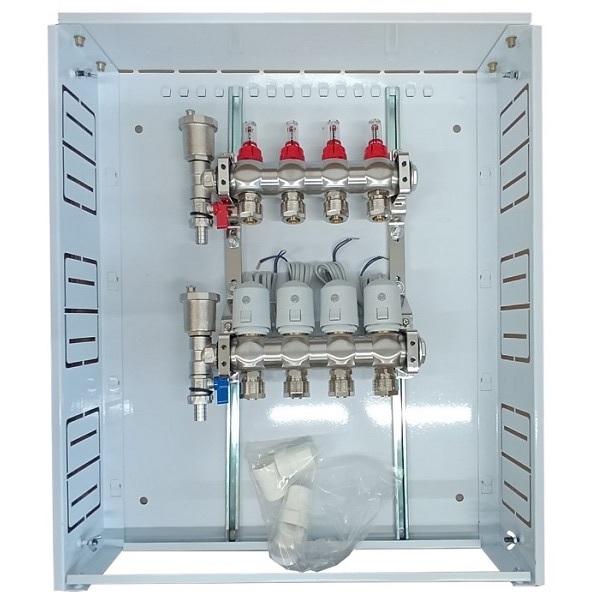

Choose countryUnderfloor heating manifold set for 4 loops, housed in a flush-mounting metal cabinet and equipped with flow meters and NC AC230V thermal actuators for individual zone control.
Key Features
- Normally closed (NC) electrothermal actuators with VA80 adapter for standard M30 thread
- Integrated flow meters for real-time water flow monitoring and pressure balancing
- Flush-mount metal cabinet with a lockable door opening up to 135 degrees
- Low energy consumption of only 2W per thermal actuator
| Mounting type | Flush mounting |
|---|---|
| Number of loops | 4 |
| Cabinet dimensions | 640 x 530 x 118 mm |
| Cabinet depth | 110 mm |
| Door dimensions | 578 x 475 mm |
| Flow meters quantity | 4 pcs. |
| Thermal actuators quantity | 4 pcs. |
| Air vent nodes | 2 pcs. |
| 16mm pipe adapters | 4 pcs. |
| Actuator operating type | NC (normally closed) |
| Operating voltage | AC 230V, 50/60Hz |
| Power consumption | 2W |
| Starting current | max. 300mA |
| Adapter | VA80 (M30) |
| Cable length | 90 cm |
| Protection rating | IP54 |
| Operating temperature | 0°C ~ +60°C |
| Actuator dimensions | Ø49.4 mm x 56.6 mm |
| Color | Light gray |
What kind of thermostats are compatible with these thermal actuators?
The thermal actuators work with any type of programmable or non-programmable room thermostats.
What connection thread does the actuator use?
The actuators connect to standard M30 manifold threads using the included VA80 thread adapter.
