Underfloor Heating Manifold 10 Loops with NC 230V Actuators and Flow Meters

Price: 479.40 €

Products ID:	172369
Manufactured by:	Hismart
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990001083533

Delivery options to:

Choose country

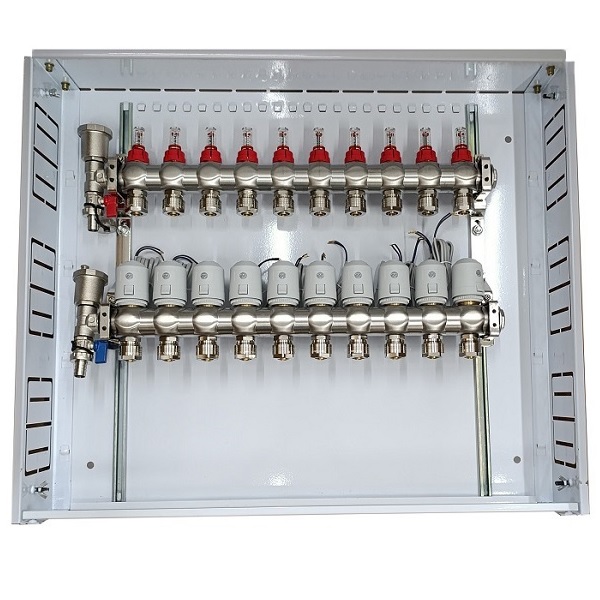

The underfloor heating manifold 10-loop set serves as the control centre for water heating systems, providing individual loop adjustment and automated zone control.

Key Features

Complete set with 10-loop manifold, flow meters, and NC AC230V thermal actuators
Flush-mounting light gray metal cabinet with a lockable door opening up to 180 degrees
Thermal actuators consume 2W each and provide IP54 protection
Connects via standard VA80 (M30) thread adapter for room thermostat automation
Includes 10 flow meters, 2 air vent nodes, and 10 adapters for 16mm pipes

Number of loops	10
Installation type	Flush mounting
Cabinet dimensions	745 mm x 645 mm x 118 mm
Cabinet depth	110 mm
Door dimensions	585 mm x 685 mm
Cabinet color	Light gray
Actuator operating type	NC (normally closed)
Operating voltage	AC 230V, 50/60Hz
Power consumption	2W
Starting current	Max. 300mA
Protection class	IP54
Cable length	90 cm
Thread adapter	VA80 (M30)
Number of flow meters	10 pcs
Number of thermal actuators	10 pcs
Air vent nodes	2 pcs
Pipe adapters	10 pcs for 16 mm pipes
Operating temperature	0°C ~ +60°C

What is included in the package?

The set includes a flush-mounting metal cabinet, a 10-loop manifold, 10 flow meters, 10 NC AC230V thermal actuators, 2 air vent nodes, and 10 adapters for 16mm heating circuit pipes.

What type of connection do the thermal actuators use?

The thermal actuators connect via a VA80 thread adapter to standard M30 threads and feature a 90 cm cable.
