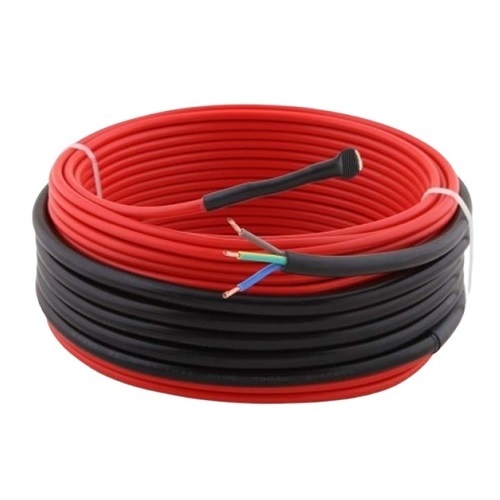

Underfloor Heating Cable 300W, 25m, 12W/m, AC 230V

Price: 36.20 €

Products ID:	172306
Manufactured by:	Hismart
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000260164

Delivery options to:

Choose country

Electric twin-conductor heating cable designed for indoor underfloor heating systems, providing uniform and comfortable heat distribution.

Key Features

Slim 3.6 mm diameter suitable for low-height installations in tile adhesive or screed
Twin-conductor structure with single-end connection and a 2.5 m cold lead
Inner FEP insulation, outer PVC jacket, and integrated aluminum shielding
IP68 protection class for safe installation in bathrooms and wet zones
Compatible with tile, laminate, wooden, marble, and PVC floor coverings

Application	Underfloor heating
Power output	300 W
Heating power	12 W/m
Cable length	25 m
Rated voltage	AC 230V
Outer diameter	3.6 mm
Cable structure	Twin conductor
Resistance	176.33 Ohm (+10% / -5%)
Insulation	FEP (fluoropolymer)
Outer jacket	PVC
Shield	Aluminum-plastic tape
Cold lead length	2.5 m
Protection class	IP68
Short-circuit protection	Yes
Certifications	CE, EAC, TUV, CSA

What are the dimensions and power specifications of this cable?

The heating cable has a length of 25 meters, a total power output of 300 W (12 W/m), an outer diameter of 3.6 mm, and includes a 2.5 m cold connection lead.

Which floor coverings are compatible with this heating cable?

It can be installed in tile adhesive or leveling compound beneath tiles, marble, stone, laminate, wood floors, and PVC flooring.

Is this heating cable safe for bathrooms?

Yes, it has an IP68 protection class and waterproof construction, making it suitable for bathrooms and other wet indoor areas.
