Tuya Smart Energy Sensor 2P+N 63A Wi-Fi Power Meter Switch
Price: 27.80 €
| Products ID: | 172859 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001085247 |
Delivery options to:

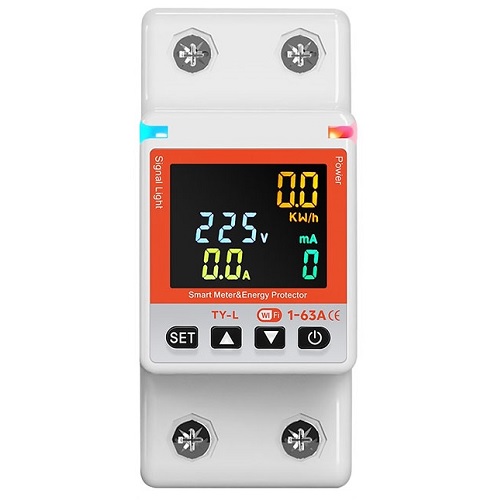

Choose countryThe 2P+N Smart Power Meter Switch with 2.4 GHz Wi-Fi and Bluetooth connectivity is designed for 35 mm DIN rail mounting. It provides real-time electrical monitoring, energy metering, and comprehensive circuit protection via the Tuya Smart and Smart Life apps.
Key Features

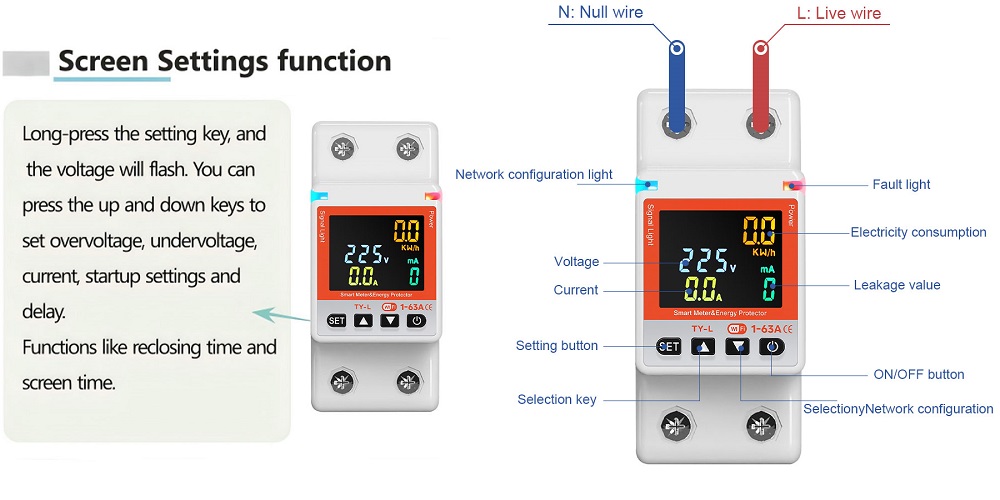

- Energy Metering: monitors voltage, current, and accumulated energy consumption (kWh) on the built-in LCD screen and mobile app.
- Adjustable Circuit Protection: protects against undervoltage, overvoltage, overcurrent, overload, and leakage current.
- Automatic Reclosing: tests for fault clearance within 1–3 seconds after tripping and automatically restores power if safe.
- Smart Control & Automation: supports schedules, countdown timers, smart automation scenarios, and voice control via Amazon Alexa and Google Assistant.
| Brand | Tuya |
|---|---|
| Poles | 2P+N |
| Rated current | 1-63 A (adjustable) |
| Rated voltage | AC 90–300 V, 50 Hz |
| Max connected load | Up to 13 kW (general appliances), up to 6 kW (electric motors) |
| Energy metering | Yes (kWh) |
| Connectivity | Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n) + Bluetooth |
| App | Tuya Smart / Smart Life (Android, iOS) |
| Undervoltage protection | 76-240 V (adjustable) |
| Overvoltage protection | 220-265 V (adjustable) |
| Leakage current protection | 10-99 mA (adjustable) |
| Mounting | 35 mm DIN rail |
| Operating temperature | -40°C to +100°C |
| Dimensions | 36 x 82 x 50 mm |
| Color | White |
What electrical values can this device measure?
It measures voltage, current, and total accumulated electricity consumption in kWh, viewable on both the LCD screen and the mobile app.
How does the automatic reclosing function operate?
When a trip occurs due to a temporary fault, the device checks if the condition clears within 1 to 3 seconds and automatically reconnects power if normal status is restored.
What type of mounting does the switch require?
The switch is designed for mounting on a standard 35 mm DIN rail.
