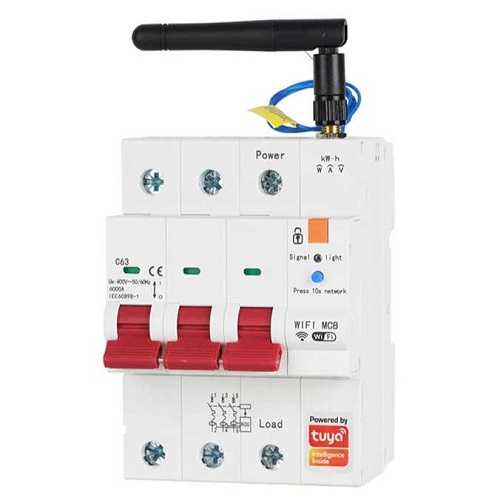

TUYA Smart Circuit Breaker 3P Wi-Fi RS485 63A
Price: 94.00 €
| Products ID: | 171950 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001084066 |
Delivery options to:
Choose countryTUYA smart 3-pole circuit breaker equipped with real-time energy metering, 2.4GHz Wi-Fi remote control, and an RS485 communication interface.
Key Features
- Remote control and energy monitoring via Tuya Smart or Smart Life app
- Voice control compatibility with Amazon Alexa and Google Assistant
- Protection against overload, short circuit, overvoltage, leakage, and high temperature
- Standard 35mm DIN rail mounting
- Mechanical safety lock and manual ON/OFF lever
- Supplied with 2 Wi-Fi antennas and an RS485 adapter
| Poles | 3P |
|---|---|
| Maximum current | 63A |
| Rated voltage | AC 400V |
| Frequency | 50/60 Hz |
| Breaking capacity | up to 6kA |
| Wireless connection | Wi-Fi 2.4 GHz (802.11b/g/n) |
| Interface | RS485 |
| Supported apps | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa, Google Assistant |
| Mounting | DIN rail, 35mm |
| Operating temperature | -25°C to +70°C |
| Housing material | PC V0 (flame-retardant) |
| Dimensions | 71 x 74 x 100 mm |
| Weight | 415g |
| Color | White |
| Package contents | 2x Wi-Fi antennas, RS485 adapter |
| Certifications | CE, RoHS, IEC60898-1 |
Which mobile apps are compatible with this smart breaker?
The breaker can be controlled using the Tuya Smart or Smart Life apps available for Android and iOS.
How is this circuit breaker installed?
It is designed for mounting on a standard 35mm DIN rail.
What is included in the package?
The package includes the smart circuit breaker, 2 Wi-Fi antennas, and an RS485 adapter.
