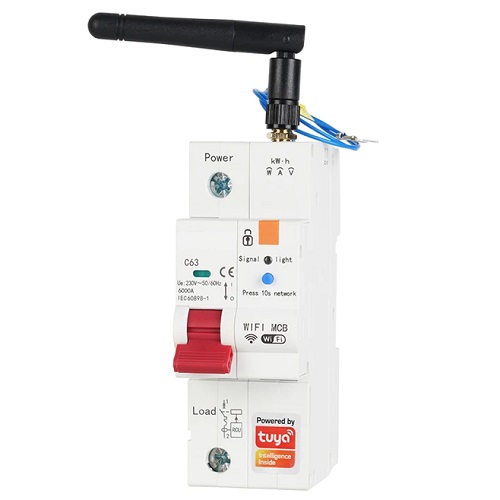

TUYA Smart Circuit Breaker, 1P, Wi-Fi, RS485, 63A, White
Price: 70.60 €
| Products ID: | 172337 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001084042 |
Delivery options to:
Choose countryThe TUYA smart 1-pole circuit breaker enables remote electrical control via 2.4GHz Wi-Fi using the TuyaSmart or SmartLife app, as well as via an RS485 interface. It is designed for 35mm DIN rail installation and includes real-time energy metering functionality.
Key Features
- Supports up to 63A maximum current with overload and short circuit protection
- Remote control and energy consumption tracking via TuyaSmart and SmartLife apps
- Voice control compatibility with Google Assistant and Amazon Alexa

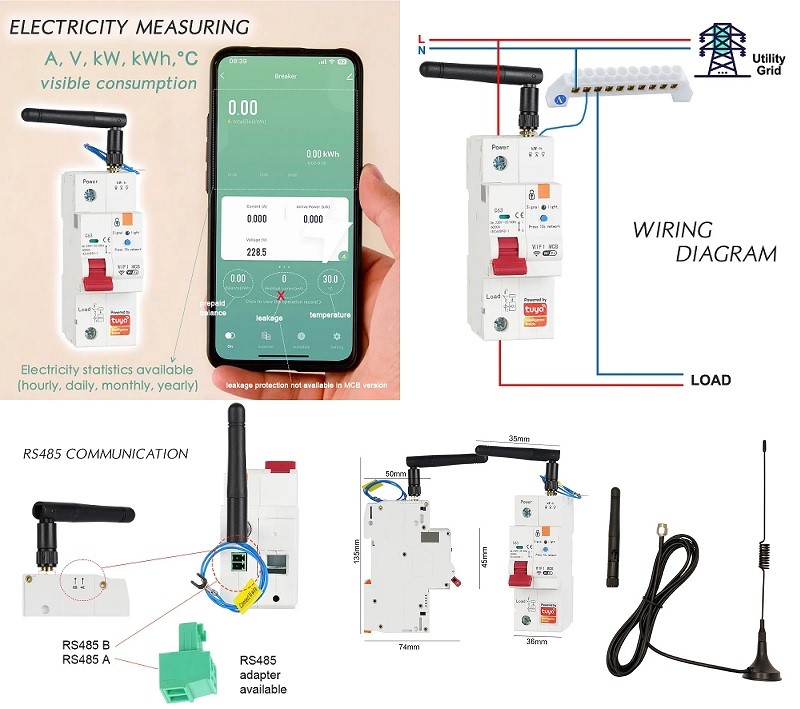

- Includes RS485 interface and 2 Wi-Fi antennas
- Mechanical safety lock for maintenance protection
- Standard 35mm DIN rail mounting
| Number of poles | 1P |
|---|---|
| Rated voltage | AC 230 V |
| Current | max. 63A |
| Frequency | 50/60 Hz |
| Breaking capacity | up to 6kA |
| Wi-Fi frequency | 2.4 GHz |
| Wi-Fi standards | 802.11b/g/n |
| RS485 interface | Yes |
| App | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa, Google Assistant |
| Operating temperature | -25°C to +70°C |
| Housing material | PC V0 |
| Installation | DIN rail, 35mm |
| Certifications | CE, RoHS, IEC60898-1 |
| Dimensions | 36x74x100 mm |
| Weight | 195g |
| Color | white |
| Package contents | 2x Wi-Fi antennas, RS485 adapter |
Which mobile applications work with this smart breaker?
The breaker can be managed remotely through the TuyaSmart or SmartLife app on Android and iOS devices.
How is this breaker installed?
It is designed for mounting on a standard 35mm DIN rail.
What is included in the package?
The package includes the device, 2 Wi-Fi antennas, and an RS485 adapter.
