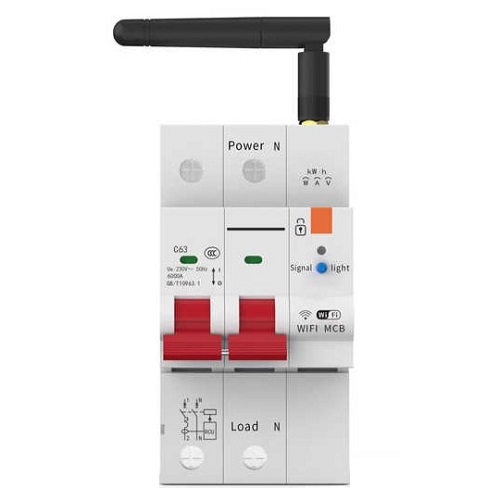

TUYA Smart Circuit Breaker, 1P+N, Wi-Fi, RS485, 63A
Price: 72.80 €
| Products ID: | 172338 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001084059 |
Delivery options to:
Choose countryThe TUYA smart 2-pole (1P+N) circuit breaker provides remote electrical circuit control and real-time energy metering on a standard 35mm DIN rail.
Key Features
- Remote management via TuyaSmart or SmartLife mobile apps and voice control with Google Assistant and Amazon Alexa
- Built-in energy metering with real-time monitoring of voltage, power, and consumption reports
- Comprehensive protection against overload, short circuit, overvoltage, high temperature, and leakage
- Integrated RS485 communication interface and 2 included Wi-Fi antennas
- Automated control using timers, schedules, delay settings, and custom smart scenes
| Number of poles | 1P+N |
|---|---|
| Rated voltage | AC 230 V |
| Current | max. 63A |
| Frequency | 50/60 Hz |
| Breaking capacity | up to 6kA |
| Wi-Fi frequency | 2.4 GHz (802.11b/g/n) |
| RS485 interface | Yes |
| App | Tuya Smart / Smart Life (Android, iOS) |
| Voice control | Amazon Alexa, Google Assistant |
| Operating temperature | -25°C to +70°C |
| Housing material | PC V0 (flame-retardant) |
| Installation | DIN rail, 35mm |
| Dimensions | 54x74x100 mm |
| Weight | 287g |
| Color | White |
| Certifications | CE, RoHS, IEC60898-1 |
Which applications are supported for remote management?
The circuit breaker works with the TuyaSmart and SmartLife apps on Android and iOS, as well as Amazon Alexa and Google Assistant.
How is this breaker installed?
It is designed for standard mounting on a 35mm DIN rail.
What is included in the package?
The package includes the TUYA smart circuit breaker, 2 Wi-Fi antennas, and an RS485 adapter.
