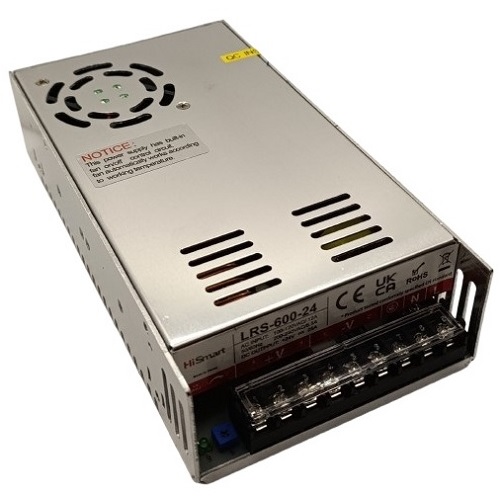

Switching Power Supply 24V, 25A, 600W
Price: 58.90 €
| Products ID: | 172802 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700820 |
Delivery options to:
Choose countrySwitching power supply 24V, 25A, 600W with a built-in DC fan and slim 50mm profile, designed for industrial, automation, control, and electrical distribution systems.
Key Features
- Output voltage 24V DC with ±10% adjustable range
- Maximum output current of 25A and 600W rated power
- Forced-air cooling via built-in DC fan with automatic temperature control
- Protections against short circuit, over temperature, overload, and over voltage
- Wide input range AC 100-240V (47-63Hz)
- Efficiency of 87% and ripple/noise of 300mV p-p
| Type | Switching power supply |
|---|---|
| Input range AC | AC 100-240V |
| Frequency | 47-63Hz |
| Output voltage DC | 24V |
| DC voltage adjustable range | ±10% |
| Max. output current | 25A |
| Rated power | 600W |
| AC current | 12A/110-120V, 5.5A/200-240V |
| Ripple and noise | 300mV p-p |
| Efficiency | 87% |
| Profile thickness | 50mm |
What built-in protections does this power supply have?
It features protection against short circuit, over temperature, overload, and over voltage.
How is the unit cooled?
It uses forced-air cooling via a built-in DC fan with automatic temperature-controlled operation.
Can the output voltage be adjusted?
Yes, the DC output voltage has an adjustable range of ±10%.
