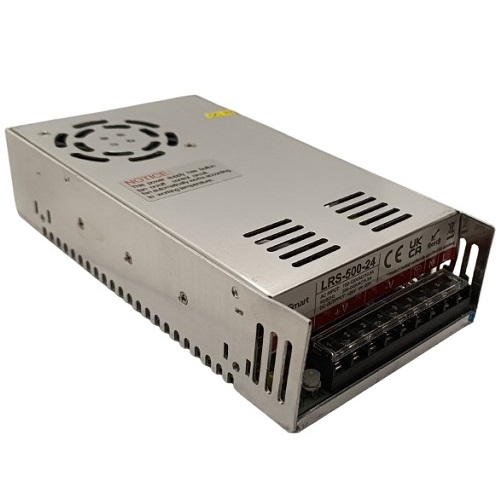

Switching Power Supply 24V, 20A, 500W with Cooling Fan
Price: 46.20 €
| Products ID: | 172799 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700806 |
Delivery options to:
Choose countryA slim 500W switching power supply delivering 24V DC output at up to 20A, designed for automation cabinets, control systems, and industrial distribution units.
Key Features
- Ultra-slim 50mm profile for installation where space saving is required
- Forced-air cooling via built-in DC fan with automatic temperature control
- Protections against short circuit, overload, over voltage, and over temperature
- Adjustable DC output voltage within ±10% range
| Type | Switching power supply |
|---|---|
| Input voltage AC | 100-240V (47-63Hz) |
| Output voltage DC | 24V |
| DC voltage adjustable range | ±10% |
| Max. output current | 20A |
| Rated power | 500W |
| AC current | 10.5A/110V, 5.5A/220V |
| Ripple and noise | 300mV p-p |
| Efficiency | 87% |
| Profile thickness | 50mm |
How is the unit cooled during operation?
It utilizes forced-air cooling via an integrated DC fan with automatic temperature-controlled operation.
What protection features are included?
The power supply includes protections for short circuit, over temperature, overload, and over voltage.
Can the output voltage be adjusted?
Yes, the 24V DC output voltage is adjustable within a range of ±10%.
