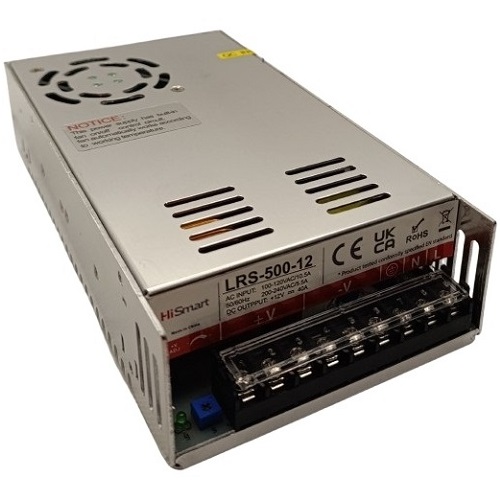

Switching Power Supply 12V, 40A, 500W with Cooling Fan
Price: 46.20 €
| Products ID: | 172798 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700790 |
Delivery options to:
Choose countrySwitching power supply operating in pulse mode with a 12V DC output, 40A maximum current, and 500W rated power. Its slim 50mm profile makes it suitable for installation in electrical distribution and automation cabinets where space saving is required.
Features
- Forced-air cooling via built-in DC fan with automatic temperature control
- DC output voltage adjustable range: ±10%
- Comprehensive protection against short circuit, overload, over voltage, and over temperature
- Suitable for industrial, control, automation, and electrical distribution applications
| Type | Switching power supply |
|---|---|
| Input voltage range AC | 100-240V (47-63Hz) |
| Output voltage DC | 12V |
| DC voltage adjustable range | ±10% |
| Max. output current | 40A |
| Rated power | 500W |
| AC current | 10.5A/110V, 5.5A/220V |
| Ripple and noise | 150mV p-p |
| Efficiency | 85% |
| Profile thickness | 50mm |
| Cooling | Built-in DC fan with automatic temperature control |
What protections are built into this power supply?
It includes short circuit, over temperature, overload, and over voltage protections.
Can the DC output voltage be adjusted?
Yes, the DC output voltage has an adjustable range of ±10%.
