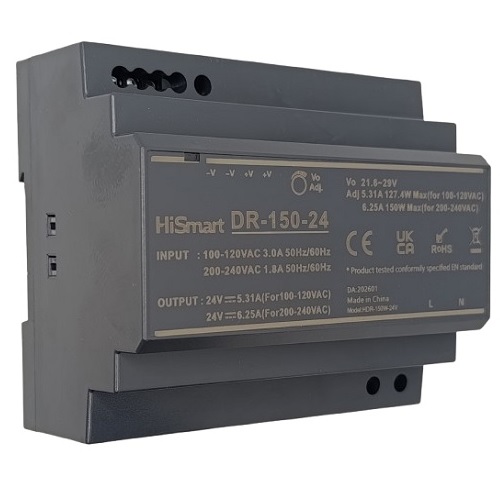

Power Supply 24V 6.25A 150W DIN Rail
Price: 27.80 €
| Products ID: | 172803 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700745 |
Delivery options to:
Choose countryCompact switching power supply designed for mounting on a standard 35 mm DIN rail in electrical distribution and automation cabinets.
Key Features
- 24V DC output voltage with 150W maximum power (6.25A)
- Mounts on standard 35 mm DIN rail
- Protection against overload, overvoltage, and short circuits
- Cooling by free air convection
- Equipped with an LED indicator
- Suitable for industrial, automation, control, and distribution systems
| Type | Switching power supply |
|---|---|
| AC Input range | 100-240V |
| Frequency | 50/60Hz |
| DC Output voltage | 24V |
| Rated current | 6.25A |
| Max. power | 150W |
| Efficiency | 89% |
| No load consumption | < 0.3W |
| Working temperature | -30°C~+60°C |
| Housing material | Plastic |
| Insulation | Class II |
| Dimensions | 105x90x55 mm |
| Weight | 340 g |
| Warranty | 24 months |
What type of mounting does this power supply support?
It is designed for mounting on a standard 35 mm DIN rail.
What built-in protections does the unit have?
The power supply includes overload, overvoltage, and short-circuit protection.
