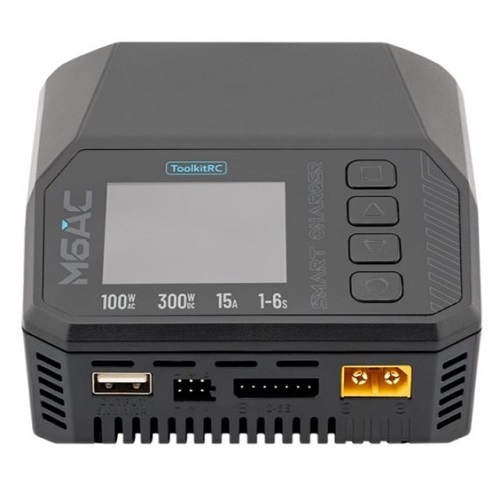

M6AC Smart Battery Charger AC 100W DC 300W
Price: 75.80 €
| Products ID: | 172330 |
|---|---|
| Manufactured by: | Toolkitrc |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6972969830650 |
Delivery options to:
Choose country

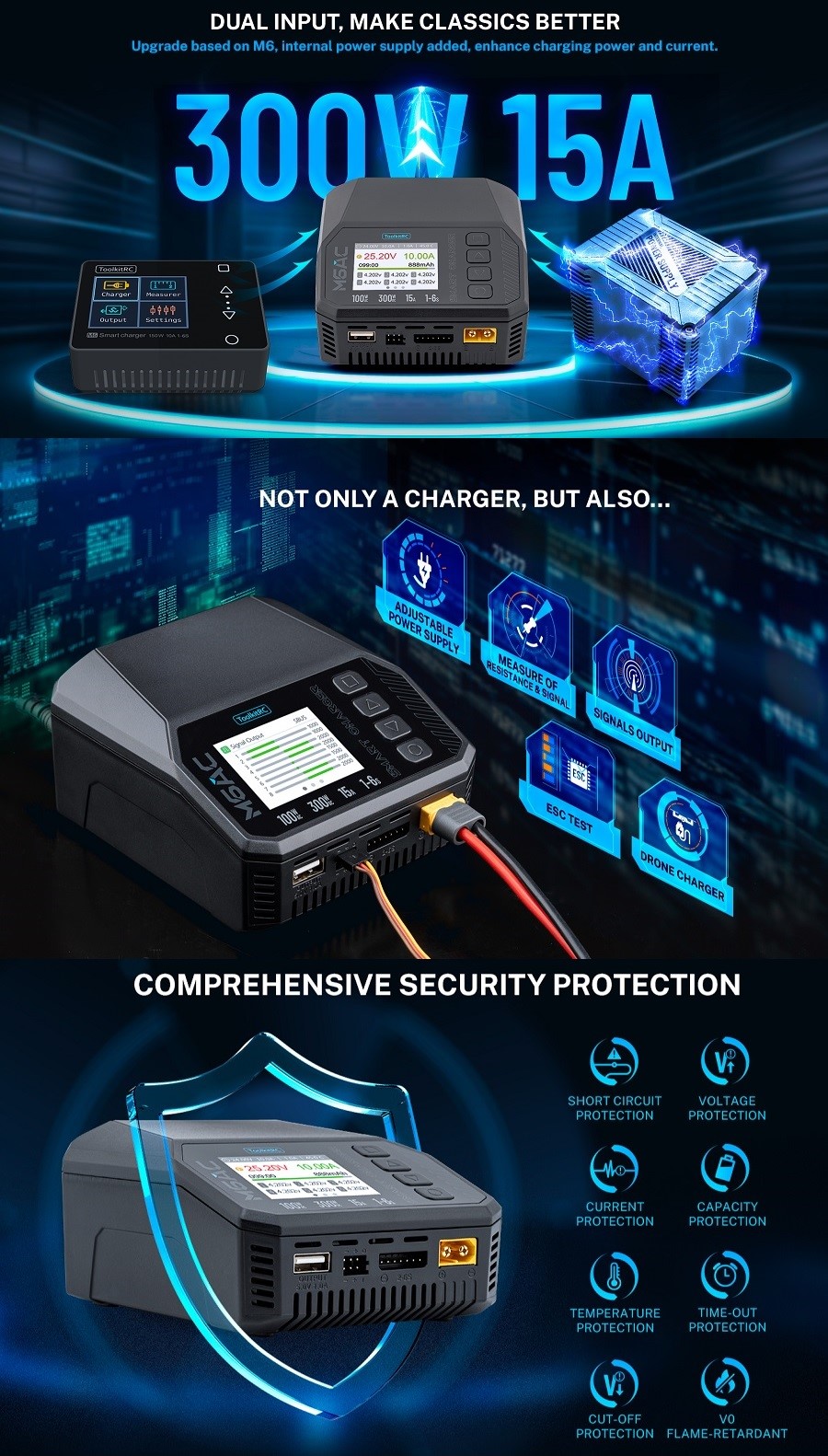

The M6AC is a compact microprocessor-controlled smart balance charger designed to charge, discharge, and balance LiPo, LiHV, LiFe, Li-ion, LTO, NiMH, and Pb batteries, as well as test RC signals and provide DC power.
Key Features
- Operates from both AC mains (100-240 V) and DC power sources (7-28 V)
- Charge power up to 100 W on AC and 300 W on DC with current from 0.1 to 15.0 A
- Powerful 1000 mA balance current with cell balancing accuracy < 0.005 V
- Clear 2.0-inch IPS LCD color screen with 320 x 240 resolution
- PWM, PPM, and SBUS signal measurement, generation, and ESC testing capabilities
- Multiple built-in protections against over-voltage, short-circuit, and reverse polarity
- Integrated USB Type-A output port
| Input Voltage (AC) | 100-240 V AC (max. 120 W) |
|---|---|
| Input Voltage (DC) | 7-28 V DC (max. 30 A) |
| Charge Power | 100 W (AC mode) / 300 W (DC mode) |
| Charge Current | 0.1-15.0 A @ max 300 W |
| Discharge Power | 15 W (0.1-3.0 A) / 300 W Recycle mode (0.1-15.0 A) |
| Balancing Current | 1000 mA |
| Balancing Accuracy | < 0.005 V |
| Supported Battery Types | LiPo / LiHV / LiFe / Li-ion / LTO 1-6 S; NiMH 1-16 S; Pb 1-10 S |
| Display | 2.0" IPS LCD (320 x 240) |
| USB Type-A Output | 5.0 V / 1.0 A @ 10 W |
| Connectors | DC input, AC input, Signal port (PWM / PPM / SBUS), Balance port 2-6 S, XT60 output, USB Type-A output |
| Dimensions | 108 x 106 x 60 mm |
| Weight | 347 g |
| Package Contents | M6AC charger, 120 cm AC power cable, 30 cm USB Type-A to USB Type-A cable, user manual, screen protector |
Which battery types are supported by this charger?
It supports LiPo, LiHV, LiFe, Li-ion, and LTO (1-6 S), NiMH (1-16 S), and lead-acid Pb (1-10 S) batteries.
What is the maximum charging power output?
The maximum charge power is 100 W when running on AC mains power and 300 W when connected to a DC power supply.
What items are included in the package?
The package includes the M6AC charger, a 120 cm AC power cable, a 30 cm USB Type-A to Type-A cable, a screen protector, and a user manual.
