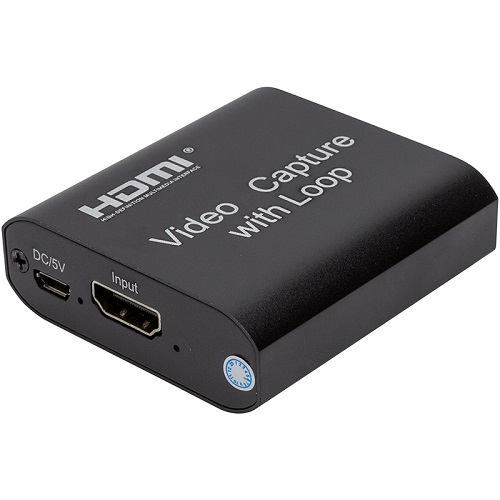

HDMI Video Capture Device with Loop Out, 4K 30Hz / 1080p
Price: 36.90 €
| Products ID: | 172872 |
|---|---|
| Manufactured by: | Power Plant, Llc |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000914142 |
Delivery options to:
Choose countryHDMI Video Capture Device captures high-definition video and audio and transmits them to a computer or smartphone for preview, recording, or storage.
Key Features
- HDMI Loop Out port for pass-through to an external display
- Supports input resolutions up to 4K at 30Hz
- Supports video output resolutions up to 1080p Full HD
- Compliant with USB Video Class (UVC) and USB Audio Class (UAC) standards
- Compatible with Windows, Android, and macOS operating systems
- Works with capture software such as OBS, VLC, and Amcap
| Maximum input resolution | 4K @ 30Hz |
|---|---|
| Maximum output resolution | 1080p (1920 x 1080) |
| USB standard | USB 2.0 |
| HDMI Loop Out | Yes |
| Supported audio format | LPCM |
| Video output formats | YUV, JPEG |
| Color depth | 8 / 10 / 12-bit (Deep Color) |
| Power parameters | 5V DC, max. 0.7A |
| Maximum input cable length | Up to 15 m (HDMI AWG26) |
| Operating temperature | -10°C to +55°C |
| Dimensions | 55 x 55 x 20 mm |
| Weight | 50 g |
What is the maximum supported resolution?
The device supports input resolutions up to 4K at 30Hz and output recording resolutions up to 1080p (1920 x 1080).
What is the function of the HDMI Loop Out port?
The HDMI Loop Out port allows you to pass through the HDMI signal directly to an external monitor or display.
Which operating systems are supported?
The device is compatible with Windows, macOS, and Android operating systems.
