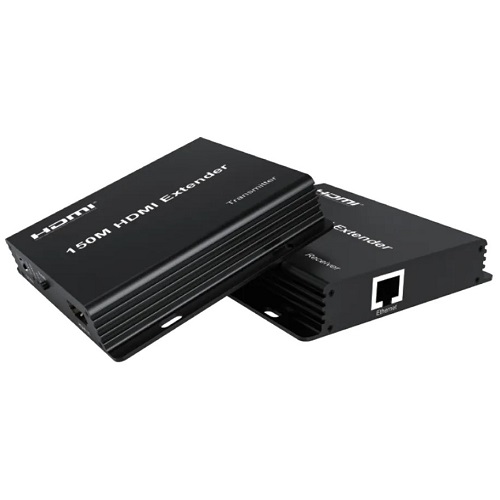

HDMI Signal Extender over Cat5e/Cat6 up to 150m, 1080p
Price: 72.60 €
| Products ID: | 172328 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000916047 |
Delivery options to:
Choose country
The HDMI extender transmits high-definition video and audio signals up to 150 meters using a single Cat5e or Cat6 Ethernet cable instead of an HDMI cable.
Key Features
- Lossless transmission without compression
- Signal transmission distance up to 150m via Cat5e/Cat6 cable
- Supported HDMI resolutions: 480p, 720p, 1080p
- Supports point-to-point and cascade connection modes
- Pure hardware plug and play design without extra software requirements
- Compatible with TVs, computer screens, projectors, and cameras
| Max cable length (CAT5e / CAT6) | 150 m |
|---|---|
| HDMI resolution | 480p, 720p, 1080p |
| Audio format | LPCM |
| Max bandwidth | 148.5 MHz |
| Max baud rate | 1 Gbps |
| Input cable distance | Up to 10m AWG26 HDMI |
| Output cable distance | Up to 15m AWG26 HDMI |
| Power adapter | AC (50Hz, 60Hz) 100V–240V; DC 5V / 1A |
| Max working current | 380 mA |
| Operating temperature | 0°C ~ +45°C |
| Operating humidity | 10–80% RH (non-condensing) |
| Dimensions | 90 x 91 x 19 mm |
| Weight | TX 120 g; RX 120 g |
| Package contents | Transmitter (TX), Receiver (RX), 2x Power adapters (5V / 1A DC), User manual |
What cable is required to connect the transmitter and receiver?
The system uses a single Cat5e or Cat6 Ethernet cable to transmit signals up to 150 meters.
What resolutions are supported by this extender?
It supports standard HDMI resolutions of 480p, 720p, and 1080p.
What is included in the package?
The package includes one transmitter (TX), one receiver (RX), two DC 5V/1A power adapters, and a user manual.
