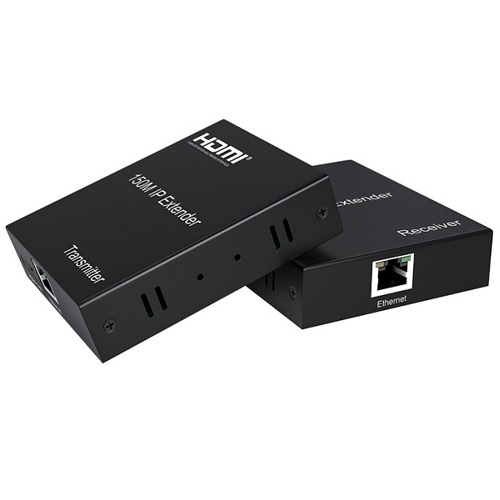

HDMI Extender over Ethernet Cable up to 150m, 1080p
Price: 63.60 €
| Products ID: | 172329 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000916160 |
Delivery options to:
Choose countryThis HDMI extender transmits high-definition audio and video signals up to 150 meters using a single Cat5e or Cat6 Ethernet cable instead of standard HDMI cabling.
Key Features
- Extends HDMI signals up to 150m at resolutions up to 1080p
- Local HDMI loop-out on the transmitter for local display monitoring
- Supports IR control pass-through

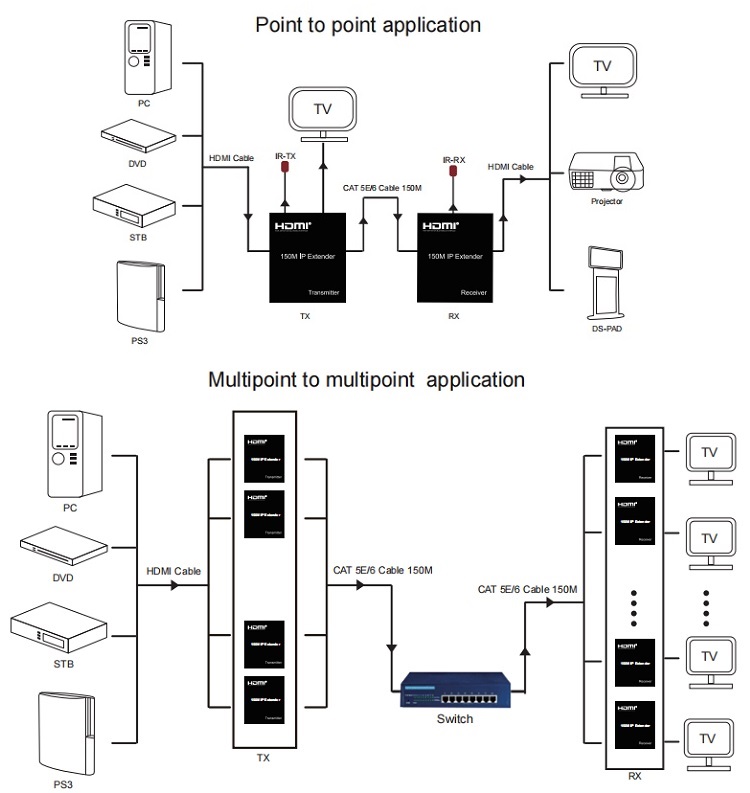

- Supports point-to-point, point-to-multipoint, and cascade connections
- Compatible with HDCP 1.4 standard and MJPEG decoding
- Plug and play connectivity with no additional software required
| Max Transmission Distance | 150m (Cat5e/Cat6) |
|---|---|
| Supported Resolutions | 480p, 720p, 1080p |
| Audio Sample Rate | 32kHz, 44.1kHz, 48kHz |
| Network Protocol | IEEE 802.3, TCP/IP |
| Content Protection | HDCP 1.4 |
| Power Supply | DC 5V / 1A (AC 100V-240V, 50/60Hz) |
| Operating Temperature | 0°C ~ +45°C |
| Operating Humidity | 10-80% RH (non-condensing) |
| Dimensions | 93 x 79 x 21 mm |
| Weight | TX 228g; RX 228g |
| Package Contents | Transmitter (TX), Receiver (RX), 2x Power Adapters (5V/1A DC), User Manual |
What cable is required to connect the transmitter and receiver?
The system uses a single Cat5e or Cat6 Ethernet cable to transmit audio and video signals up to 150 meters.
What is included in the package?
The package includes one transmitter (TX), one receiver (RX), two 5V/1A DC power adapters, and a user manual.
Can a local display be connected next to the video source?
Yes, the transmitter includes an HDMI loop-out port allowing a local monitor or TV to be connected alongside the source.
