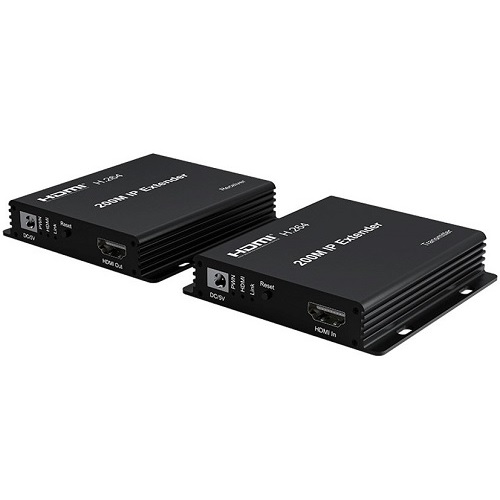

HDMI Extender over Cat5e/Cat6 up to 200m 1080P
Price: 70.30 €
| Products ID: | 172327 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000916030 |
Delivery options to:
Choose countryThis HDMI signal extender transmits high-definition audio and video signals up to 200 meters using a single Cat5e or Cat6 Ethernet cable.
Key Features
- Signal transmission up to 200m over Cat5e/Cat6 cable
- Supports 480p, 720p, and 1080p resolutions with H.264 decoding
- Operates over TCP/IP and IEEE802.3 Ethernet standards

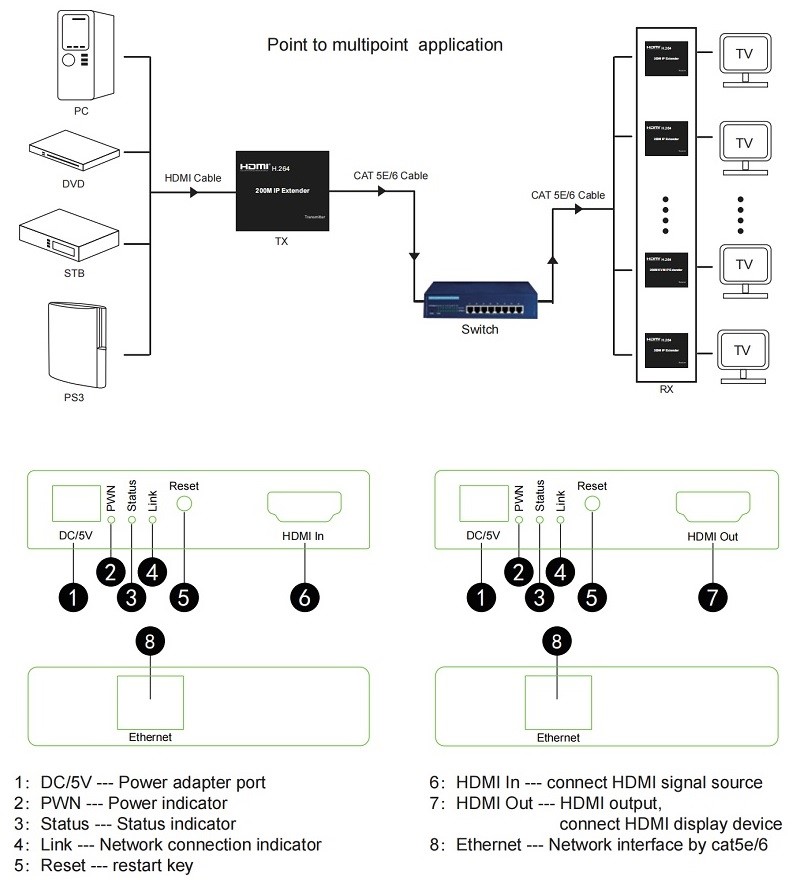

- Supports point-to-point, point-to-multipoint, and cascade modes
- Pure hardware plug-and-play design with no software required
| Max Cable Length | 200m (CAT5e / CAT6) |
|---|---|
| HDMI Resolution | 480p, 720p, 1080p |
| Decoding Mode | H.264 |
| Ethernet Standard | TCP/IP, IEEE802.3 |
| Power Adapter | AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A |
| Max TX Current | 350mA |
| Max RX Current | 450mA |
| Operating Temperature | -0°C ~ +45°C |
| Operating Humidity | 10-80% RH (non-condensing) |
| Dimensions | 90 x 91 x 19 mm |
| Weight | TX 120g; RX 120g |
| Package Contents | Transmitter (TX), Receiver (RX), 2x Power adapters (5V / 1A DC), User manual |
What type of cable is required for transmission?
The device uses a single standard Cat5e or Cat6 Ethernet cable.
What is the maximum supported transmission range?
It supports signal transmission up to 200 meters between the transmitter and receiver.
What is included in the package?
The package includes one transmitter (TX), one receiver (RX), two 5V/1A power adapters, and a user manual.
