HDMI Extender over Cat5e/Cat6 Cable up to 100m, 4K
Price: 89.80 €
| Products ID: | 171943 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000912964 |
Delivery options to:

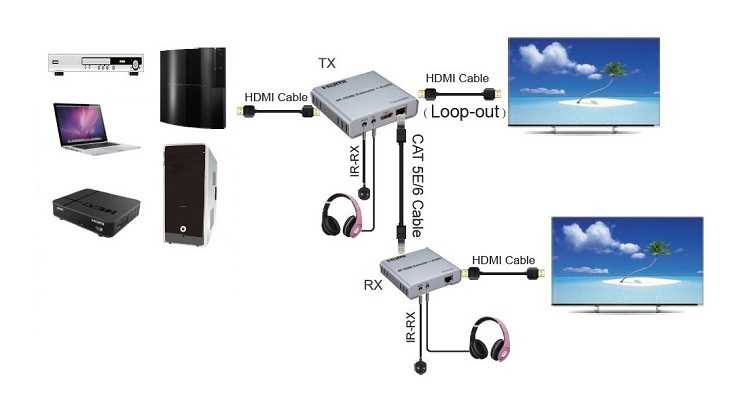

Choose countryThis HDMI signal extender transmits high-definition video and audio signals up to 100 meters using a single Cat5e or Cat6 network cable instead of standard HDMI cables.
Key Features
- Supports 4K resolution (3840x2160) and HDMI version 1.4b
- Transmission distance up to 100 meters over Cat5e/Cat6 cable
- Built-in 3.5mm audio ports on transmitter and receiver
- Supports infrared (IR) pass-through control
- Includes transmitter, receiver, and dual power adapters
| Max transmission distance (Cat5e/Cat6) | 100 m |
|---|---|
| HDMI version | 1.4b |
| Supported resolution | 4K / 1080p / 720p / 576p / 576i / 480p / 480i |
| Max bandwidth | 340 MHz |
| Max baud rate | 3x3.4 Gbps |
| HDMI AWG26 cable length to TX/RX | up to 15 m |
| Transmitter (TX) operating current | 350 mA |
| Receiver (RX) operating current | 200 mA |
| Power adapter | AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A |
| Operating temperature | -15°C ~ +55°C |
| Operating humidity | 5-90% RH |
| Dimensions | 81x87.5x23.5 mm |
| Weight | TX 210 g; RX 200 g |
What cable is required to connect the transmitter and receiver?
The system uses a single Cat5e or Cat6 (recommended) network cable to transmit the signal up to 100 meters.
What is included in the package?
The package includes a transmitter (TX), a receiver (RX), 2 power adapters (5V / 1A DC), 2 IR controllers, and a user manual.
