DIN Rail Power Supply 24V 20A 480W

Q: What rail size is supported for installation?

It is designed for mounting on a standard 35 mm DIN rail.

Q: What protective features are integrated?

The power supply includes protection against overload, overtemperature, overvoltage, and short circuits.

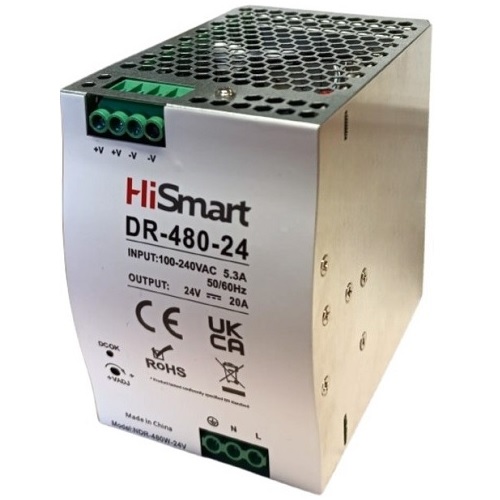

DIN Rail Power Supply 24V 20A 480W — primary image

Price: 83.70 €

Products ID:	172782
Manufactured by:	Hismart
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000700752

Delivery options to:

Choose country

Industrial switching power supply designed for mounting on a standard 35 mm DIN rail, suitable for industrial control systems, factory automation, and electromechanical equipment.

Key Features

Aluminum casing with free air convection cooling
Overload, overtemperature, overvoltage, and short-circuit protection
AC input range 90–264V
24V DC output with 20A rated current
No-load power consumption below 0.3W
Compliant with industrial immunity standard IEC 61000-6-2

Type	Switching power supply
Mounting	35 mm DIN rail
AC Input Range	90–264V
Frequency	47–63Hz
DC Output Voltage	24V
Rated Current	20A
Rated Power	480.8W
AC Current	4.8A/115V, 2.1A/230V
Ripple and Noise	240mvp-p
Efficiency	92%
No Load Consumption	< 0.3W
Casing Material	Aluminum
Standard	IEC 61000-6-2 (BS EN/EN61000-6-2)
