Maclean MCTV-930 Active Indoor TV Antenna DVB-T2 HEVC DAB FM
Price: 18.70 €
| Products ID: | 173085 |
|---|---|
| Manufactured by: | Maclean |
| Availablity: | Ready to Order |
| Delivery Time | 5-15 business days |
| EAN: | 5902211111801 |
Delivery options to:
Choose country

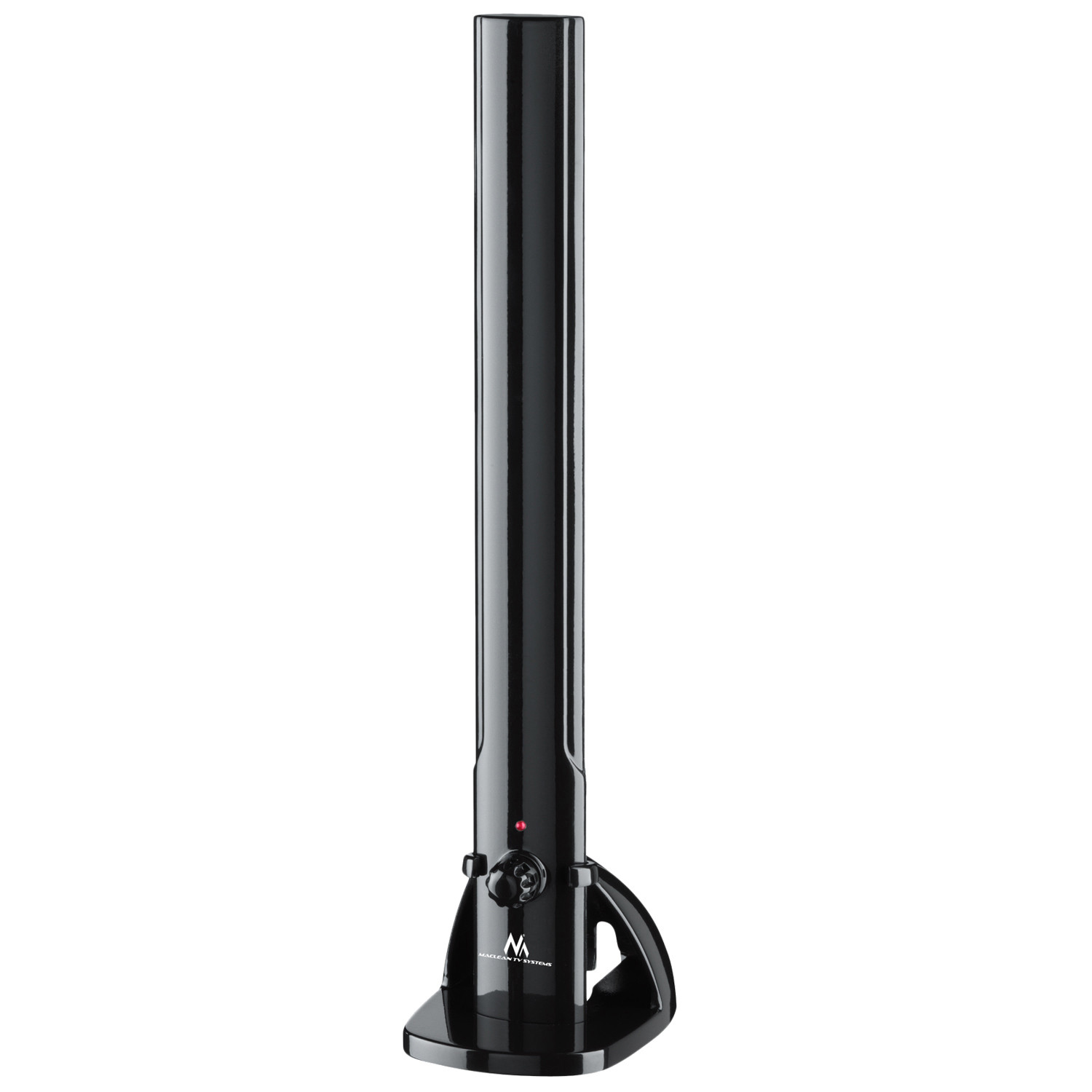

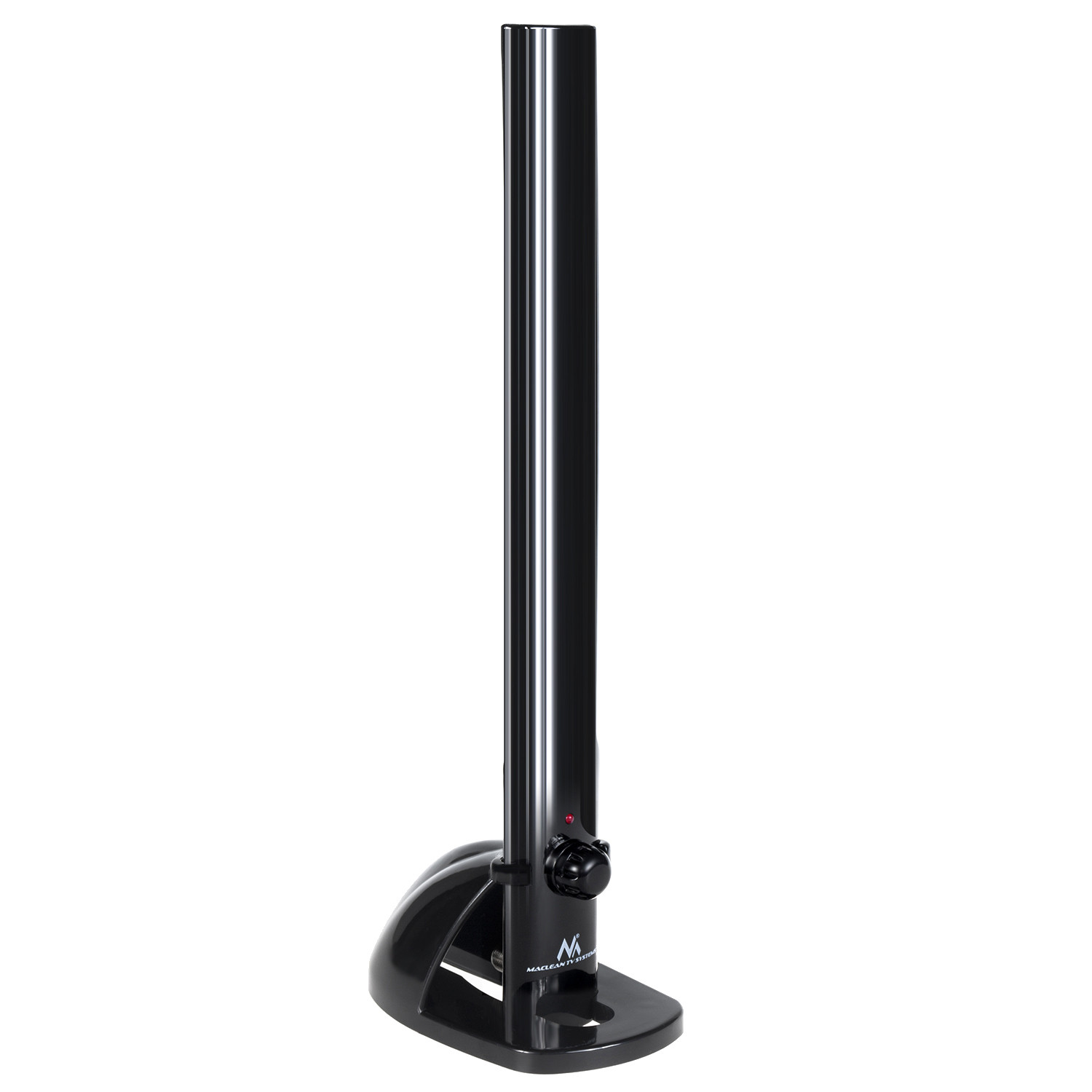

The Maclean MCTV-930 is an active indoor radio and television antenna with a compact tube design, engineered for receiving both digital and analogue broadcasts.
Key Features
- Compatible with DVB-T/T2 H.265 HEVC, DAB, and FM signals
- Integrated LTE filter to prevent mobile network interference
- Low-noise amplifier with a maximum output level of 100 dBµV
- Gain: VHF 26 dB and UHF 28 dB
- Powered via the included 6V power adapter or a DTV set-top box
- Compact vertical design with 30 cm height and dedicated stand
| Type | Active indoor antenna with amplifier |
|---|---|
| Signal Compatibility | DVB-T/T2 H.265 HEVC, ISDB-T, DMB-T/H, ATSC, DAB, FM |
| Frequency Range | VHF: 87.5 - 230 MHz, UHF: 470 - 694 MHz |
| Gain | VHF: 26 dB, UHF: 28 dB |
| Max Output Level | 100 dBµV |
| Noise Figure | ≤ 3 dB |
| Impedance | 75 Ω |

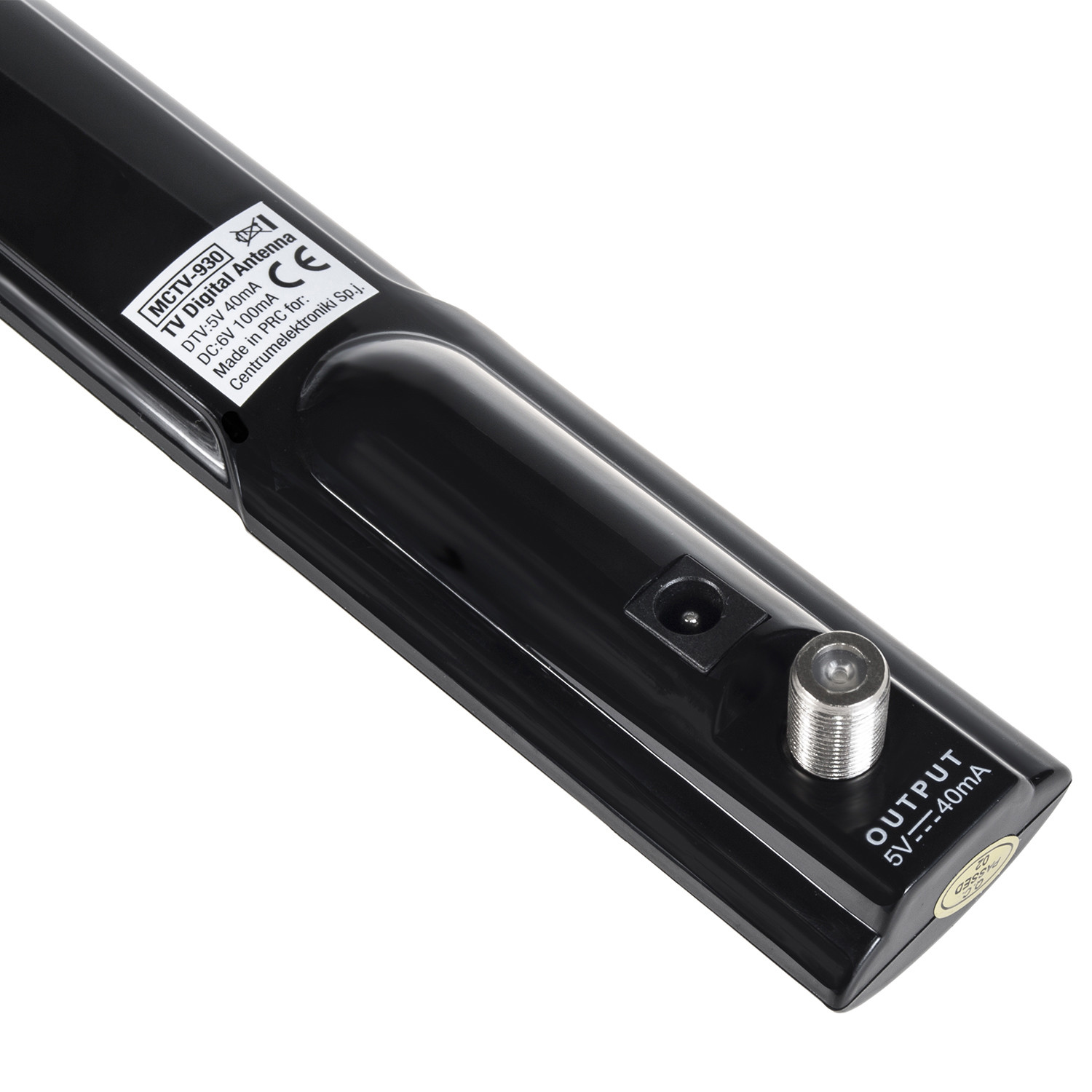

| Connector | F socket |
| Power Supply | AC/DC 150-240 V 50/60 Hz (DC 6 V, max. 100 mA) or DTV set-top box (DC 5 V / 40 mA) |
| Antenna Height | 30 cm |
| Base Dimensions | 70 x 110 mm |

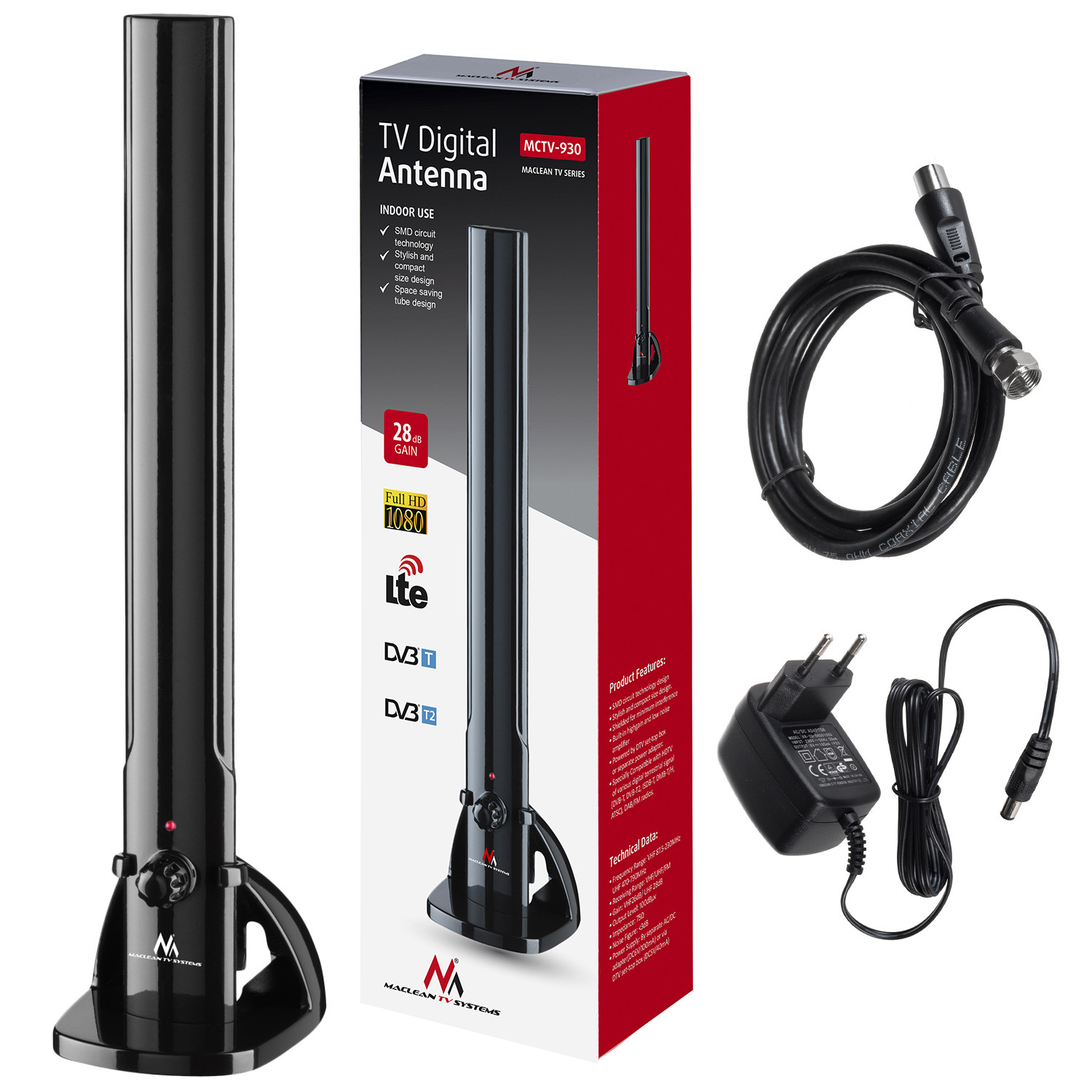

| Package Contents | MCTV-930 antenna, stand base, 6V 100mA power supply, antenna cable, manual |
How is the antenna powered?
It can be powered using the included 6V 100mA AC/DC power supply or directly via a DTV decoder (DC 5V / 40mA).
Which broadcast standards are supported?
The antenna supports digital terrestrial HDTV standards including DVB-T/T2 H.265 HEVC, ISDB-T, DMB-T/H, ATSC, as well as DAB digital radio and FM radio.
What is included in the package?
The set contains the MCTV-930 indoor antenna, base stand, 6V 100mA power adapter, antenna cable, and user manual.
