Maclean MCTV-946 Active Omnidirectional DVB-T/T2 HEVC Antenna
18.50 €
Products ID: 173053
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–15 business days
Delivery options to:
Choose countryThe Maclean MCTV-946 is an active omnidirectional antenna designed for receiving analog and digital DVB-T/T2 HEVC television signals with a hermetic housing.
Key Features
- 360° horizontal omnidirectional reception without the need for precise transmitter alignment
- Built-in LTE filter to eliminate cellular network interference
- Integrated amplifier providing gain up to 44 dB
- Hermetic housing for operation in various weather conditions
- Suitable for mounting on roofs, balconies, windows, or mobile objects such as cars and yachts
| Frequency range | 174-230 MHz, 470-790 MHz |
|---|---|
| Directionality | 360° |
| Polarization | Horizontal |
| Built-in filter | LTE |
| Gain | 20-33 dB, max 44 dB |
| Output impedance | 75 Ω |
| Power supply | 12V 10-30mA DC |
| EAN | 5902211114307 |
|---|
Does the antenna need to be pointed directly at the transmitter?
No, the antenna features 360° horizontal omnidirectional characteristics, so it does not require direct alignment towards the transmitter.
What is included in the package?

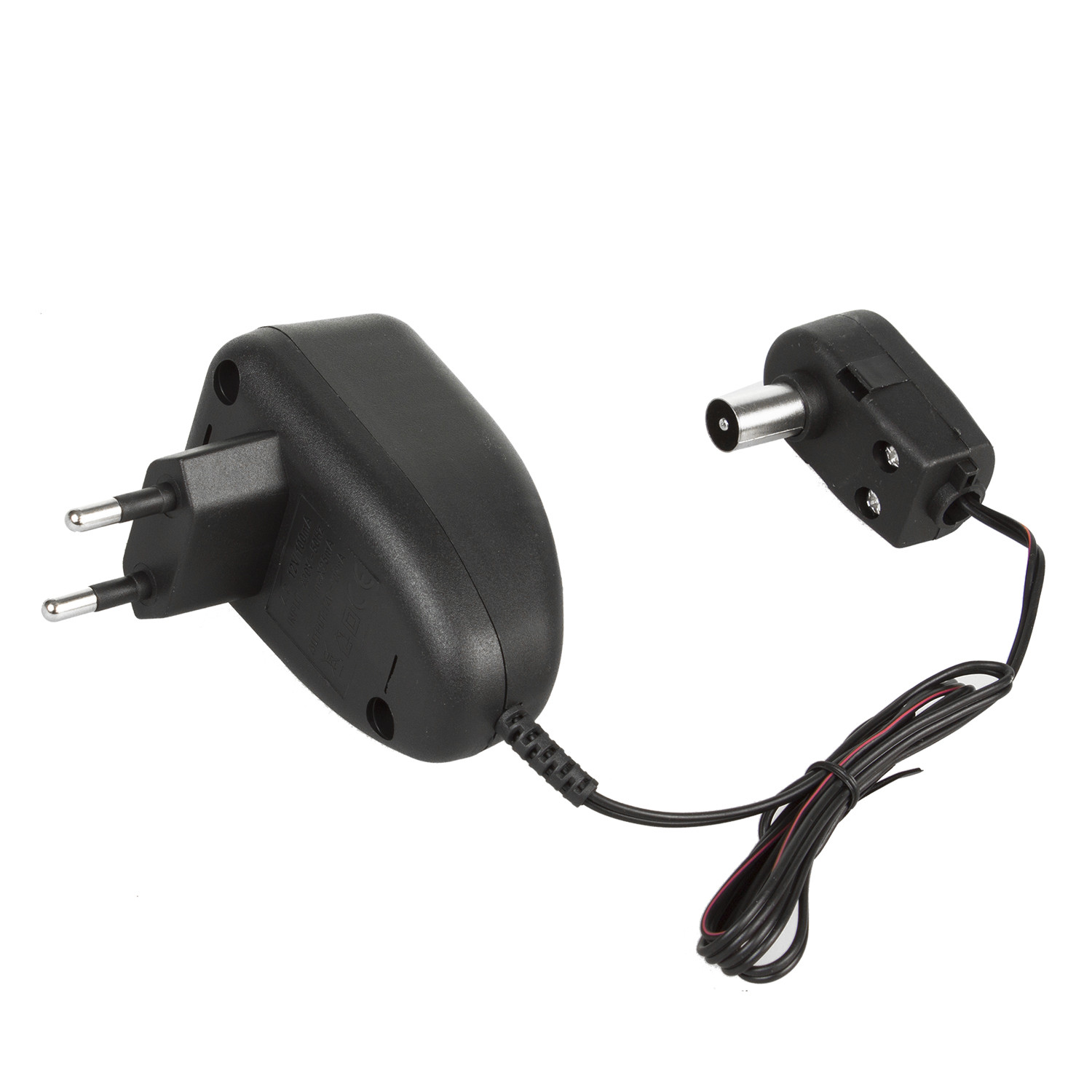

The set includes the Maclean MCTV-946 antenna, mounting bracket, power supply with separator, F-connector cable plug, and assembly manual.
