Maclean MCTV-104 Active Omnidirectional DVB-T/T2 HEVC TV Antenna
Price: 34.10 €
| Products ID: | 173093 |
|---|---|
| Manufactured by: | Maclean |
| Availablity: | Ready to Order |
| Delivery Time | 5-15 business days |
| EAN: | 5902211143512 |
Delivery options to:
Choose country
The Maclean MCTV-104 is a universal active omnidirectional antenna designed for receiving analog and digital DVB-T/T2 HEVC television broadcasts. It is suitable for camper vans, caravans, trucks, yachts, and holiday homes.
Key Features
- 360° horizontal omnidirectional reception without the need for directional alignment
- Built-in amplifier and integrated LTE filter
- Hermetic housing suitable for various weather conditions
- Central cable routing through the base for concealed installation
- Powered via standard USB 5V port
| Frequency range | 174–230 MHz, 470–698 MHz |
|---|---|
| Gain | 30-33 dB, max 44 dB |
| Output impedance | 75 Ω |
| Directivity | 360° |
| Polarization | Horizontal |
| Built-in filter | LTE |
| Power supply | USB 5V 30mA DC |
| Diameter | 26.5 cm |
| Mounting hole spacing | 42 x 42 mm |
| Multiplex support | MUX1, MUX2, MUX3, MUX8 |
How is the antenna powered?
The antenna is powered via a standard USB port supplying 5V 30mA DC using the included USB power plug with separator.
Does the antenna require pointing toward the TV transmitter?
No, it features a 360° omnidirectional horizontal reception pattern, eliminating the need to align it toward the broadcast tower.
What is included in the package?

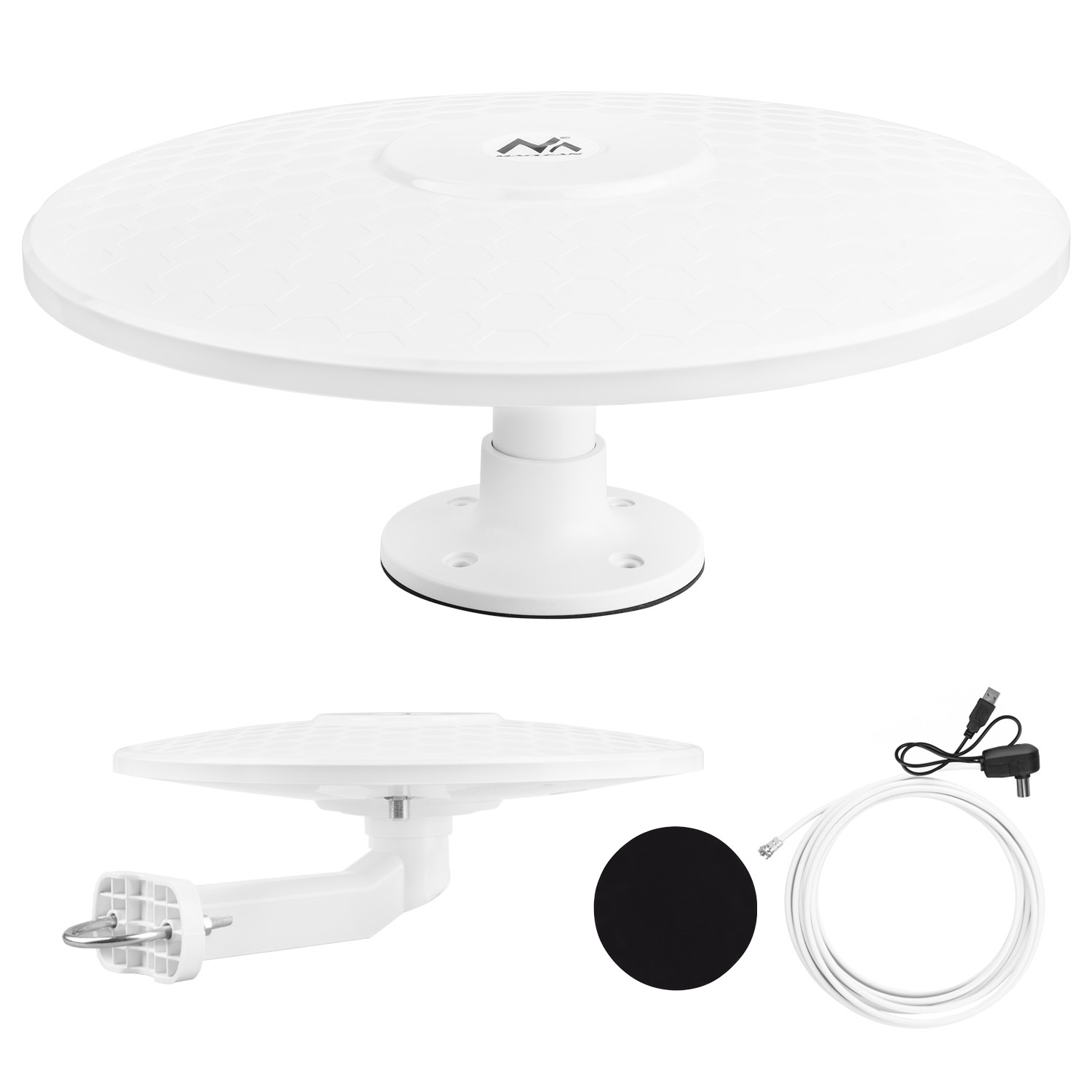

The package includes the Maclean MCTV-104 antenna, mounting bracket, coupler, base, 5 m 75 Ohm coaxial cable with F plug, USB power injector/separator, U-bolt clamp, rubber pad, and installation manual.
