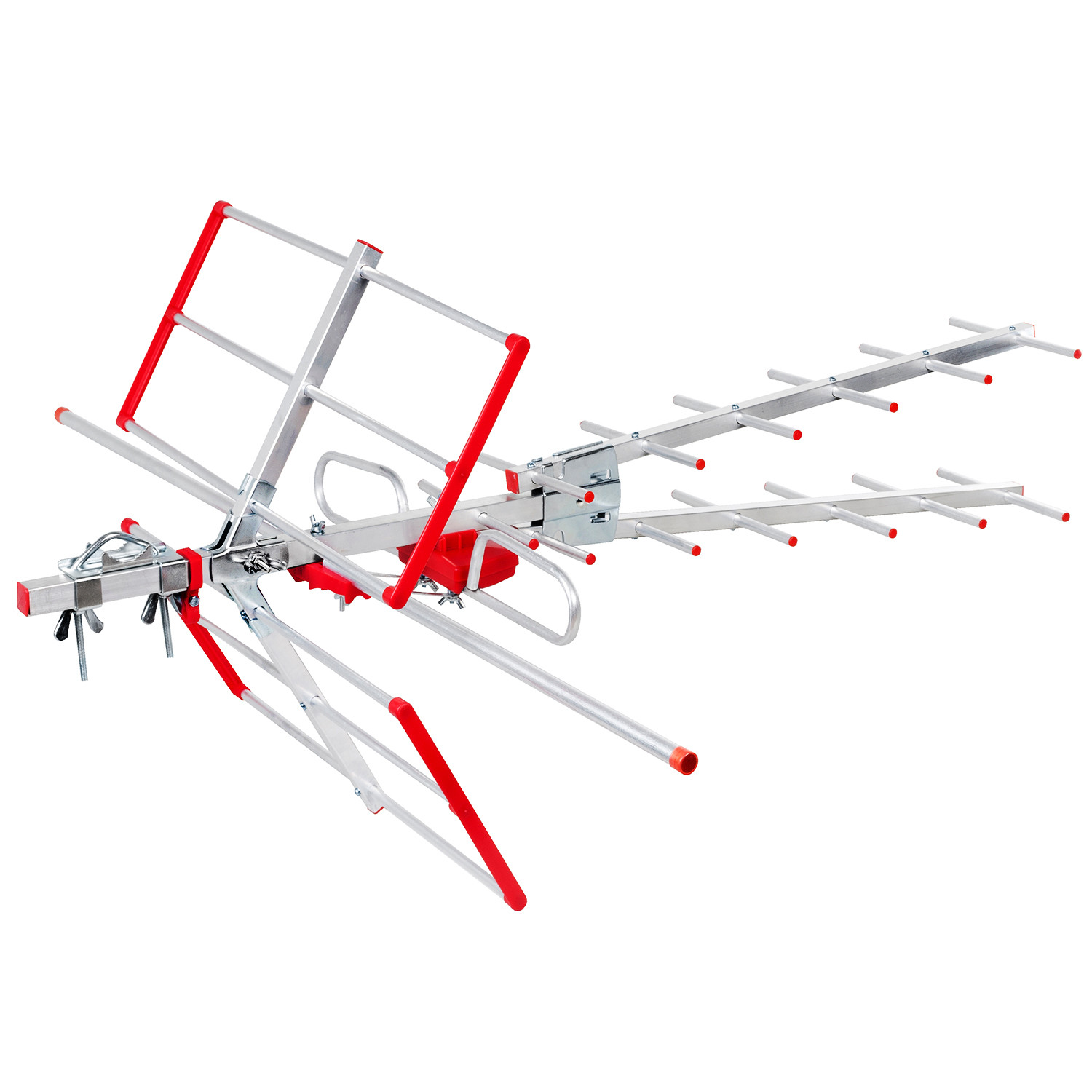

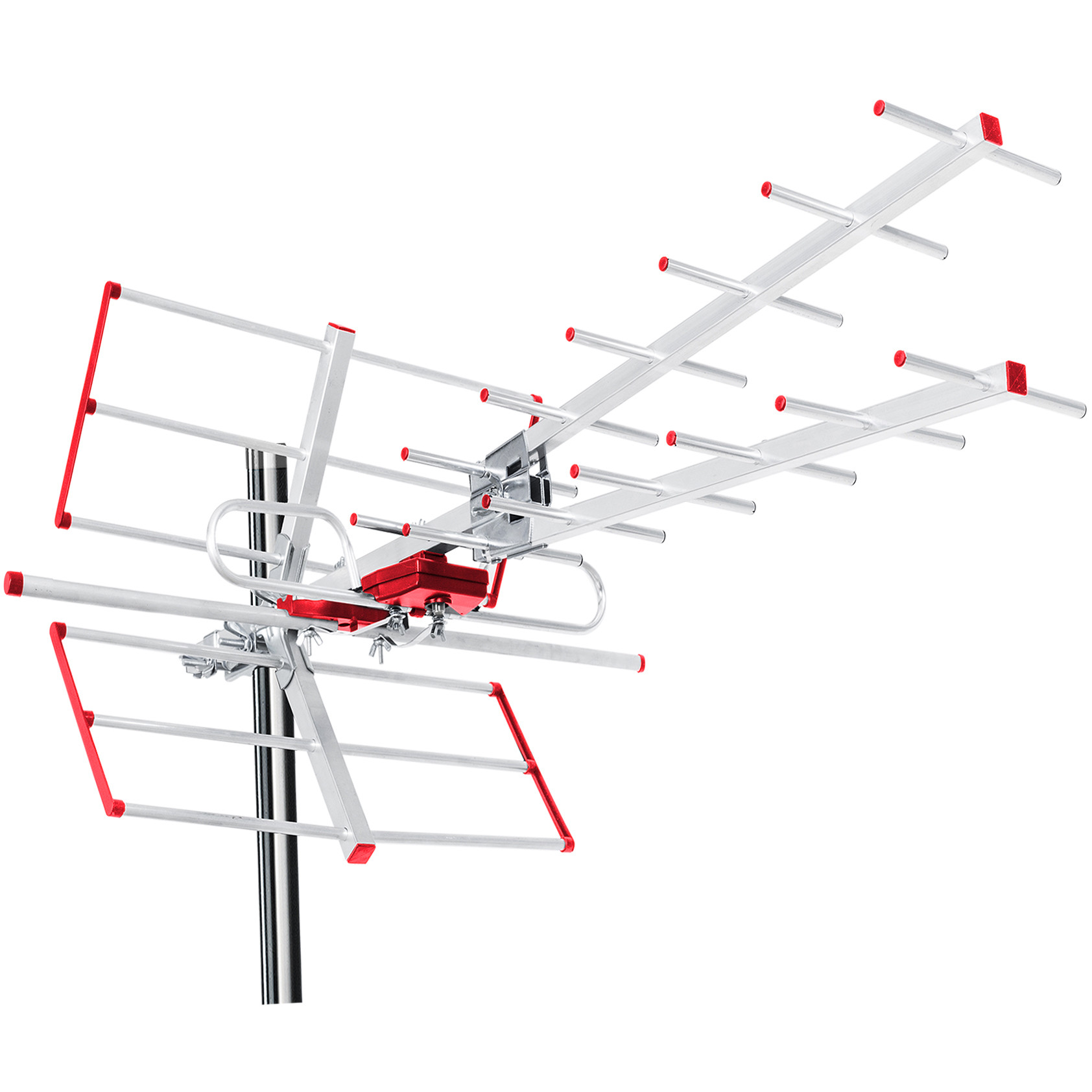

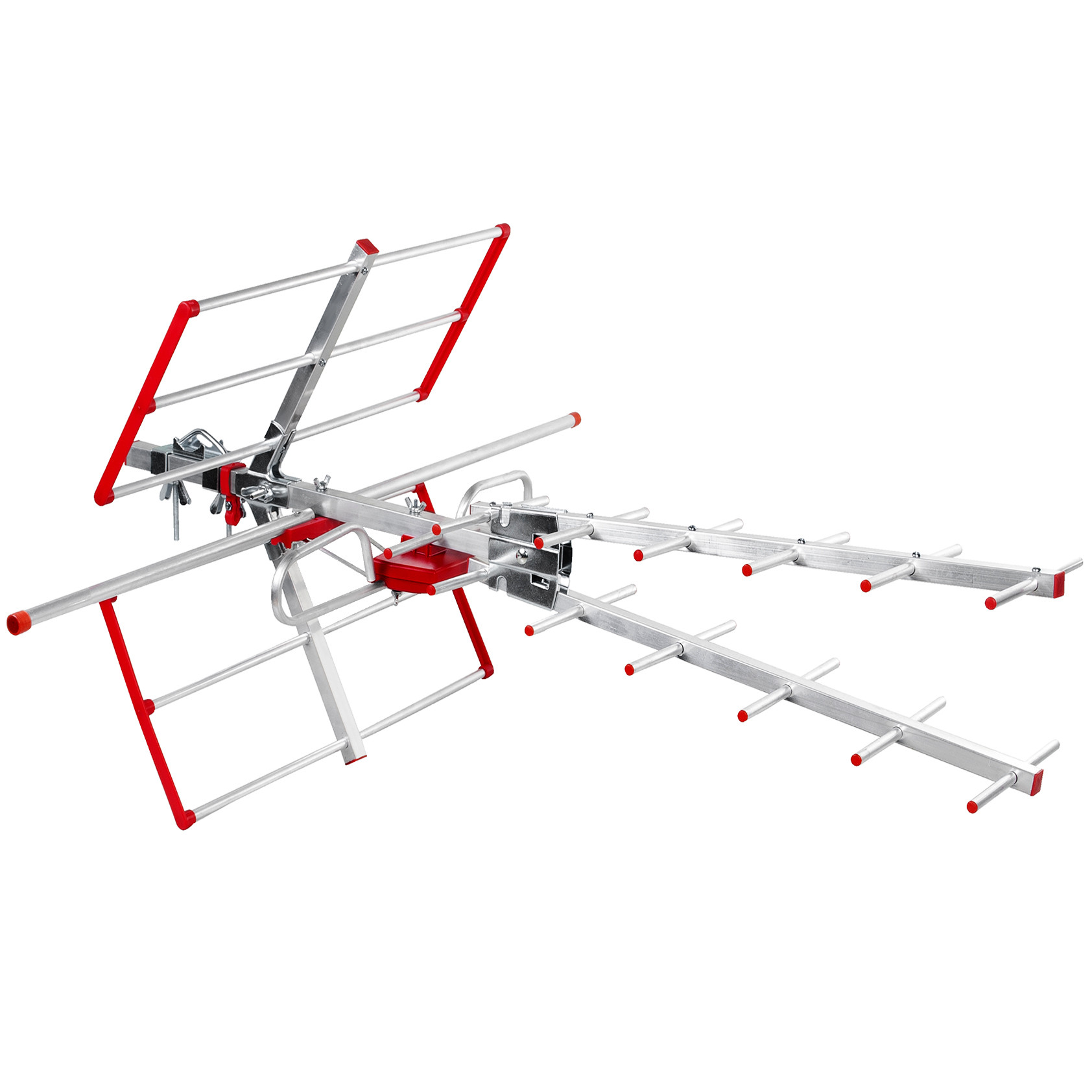

Maclean MCTV-855 Directional DVB-T/T2 HEVC TV Antenna Outdoor UHF/VHF LTE Filter
Price: 24.60 €
| Products ID: | 173033 |
|---|---|
| Manufactured by: | Maclean |
| Availablity: | Ready to Order |
| Delivery Time | 5-15 business days |
| EAN: | 5902211113089 |
Delivery options to:
Choose country
The Maclean MCTV-855 is a passive outdoor directional combo TV antenna designed for terrestrial digital DVB-T and DVB-T2 HEVC television reception as well as VHF band signals, including MUX 8 and DAB+ digital radio.
Key Features
- Built-in LTE filter blocks interference from mobile networks above 790 MHz
- Receives VHF (170–230 MHz) and UHF (470–790 MHz) frequency bands
- Corrosion-resistant aluminium components and waterproof balun enclosure
- Tool-free fast assembly in approximately 60 seconds

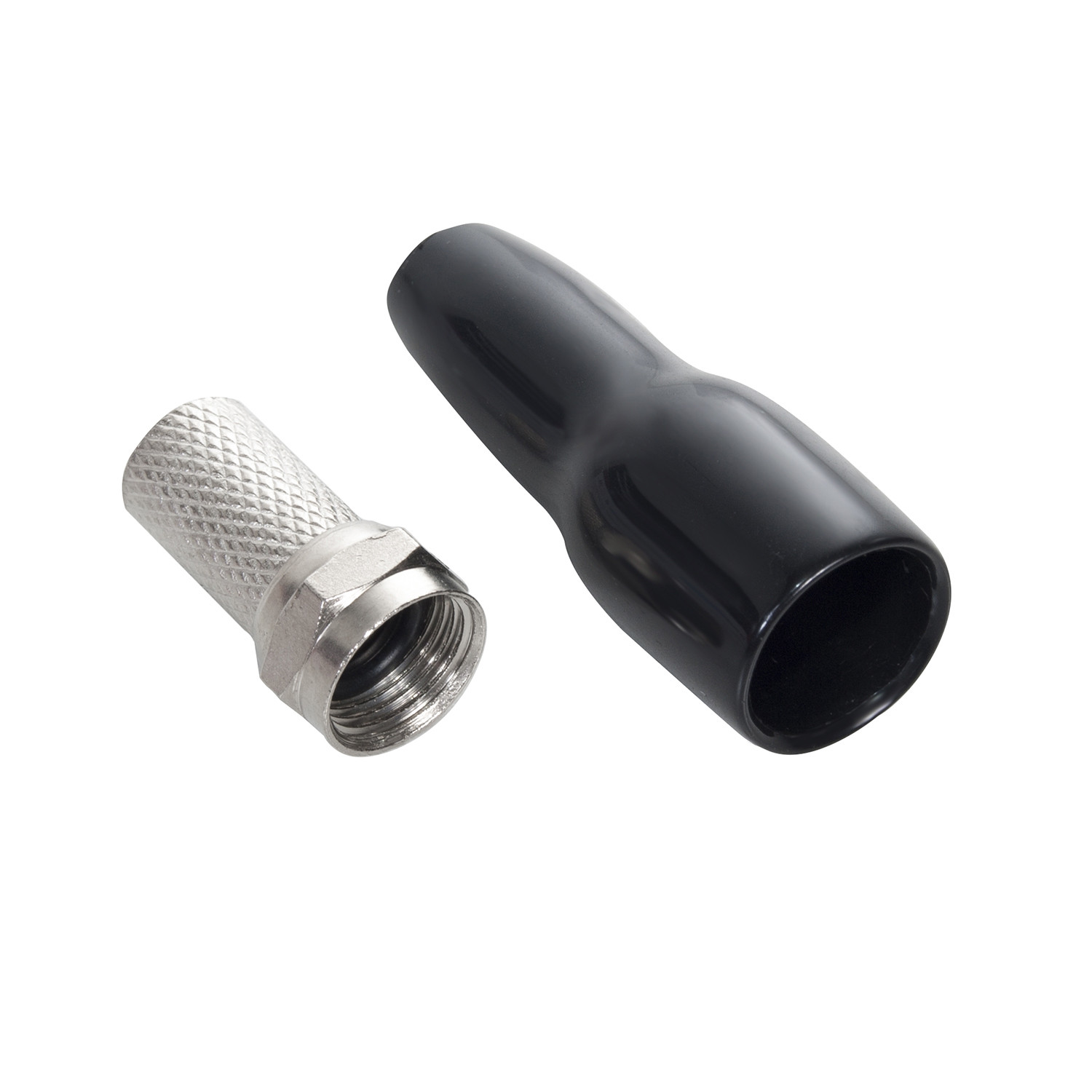

- F-type connector with 75 Ohm impedance
| Brand | Maclean |
|---|---|
| Model | MCTV-855 |
| Signal standards | DVB-T, DVB-T2 HEVC, DAB+ |
| VHF frequency range | 170-230 MHz |
| UHF frequency range | 470-790 MHz |
| Channels | VHF 6-12, UHF 21-69 |
| Gain | VHF: 5-6 dB, UHF: 10-12 dB |
| Front-to-back ratio | 28 dB |
| Beam width | H40° / V55° |
| Max output level | 100 dBµV |
| Impedance | 75 Ω |
| Connector | Type F |
| LTE filter | Built-in |
What frequency ranges does the Maclean MCTV-855 antenna support?
It covers VHF frequencies from 170 to 230 MHz (channels 6-12) and UHF frequencies from 470 to 790 MHz (channels 21-69).
What is the function of the built-in LTE filter?
The LTE filter eliminates unwanted frequencies above 790 MHz to prevent interference from 800 MHz mobile internet transmissions.
