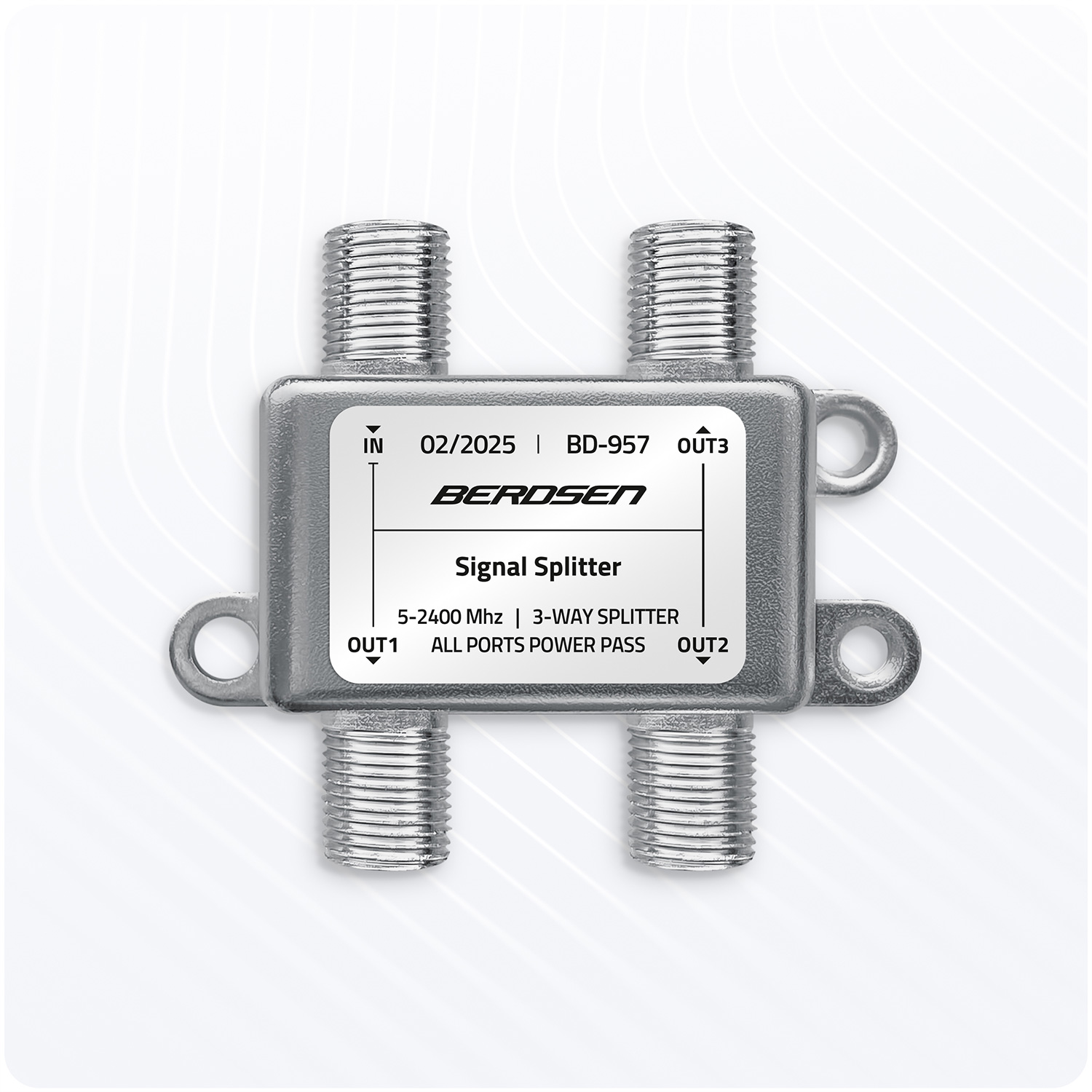

Berdsen BD-957 Passive 3-Way Antenna Splitter 5–2400 MHz
8.60 €
Products ID: 171991
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–14 business days
Delivery options to:

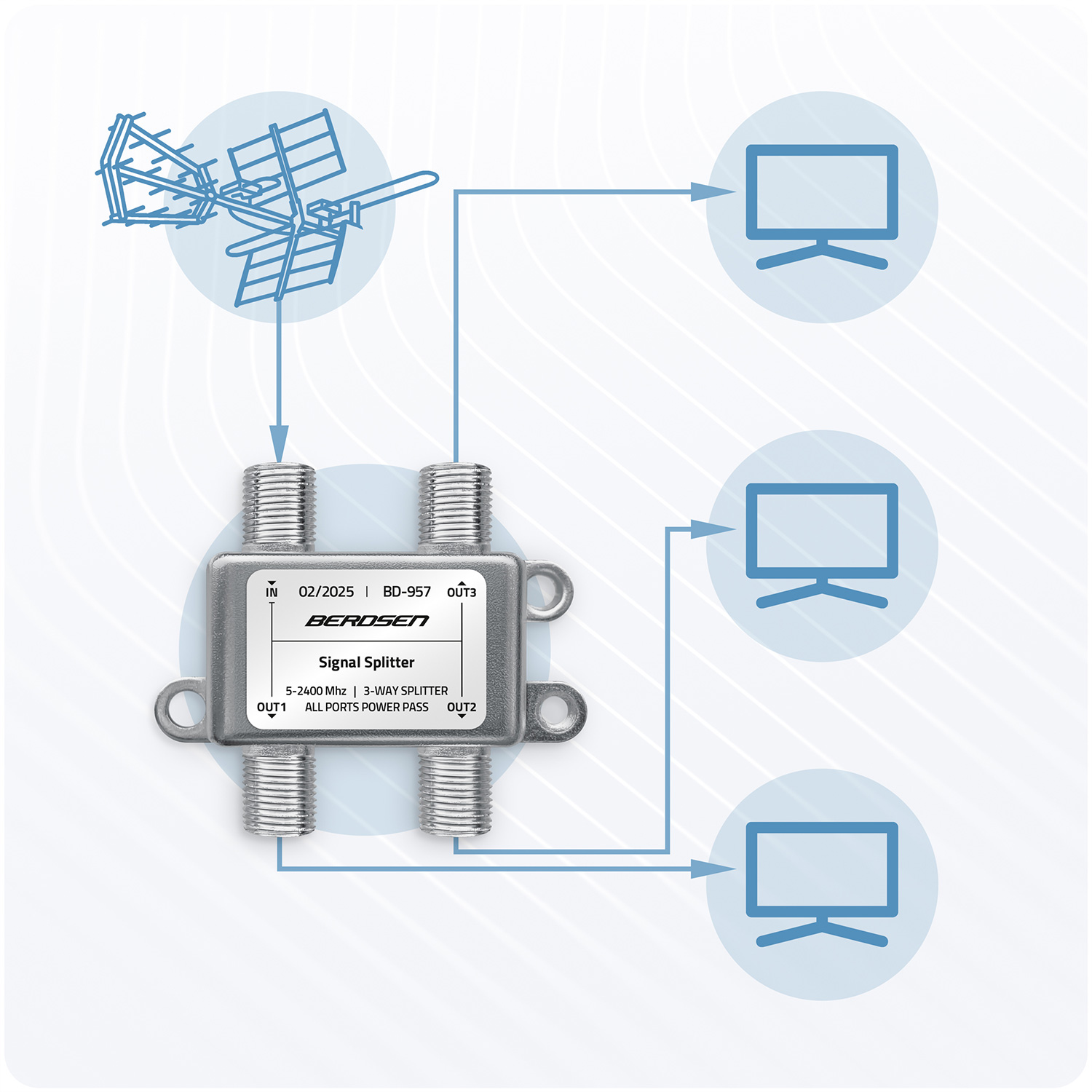

Choose countryThe Berdsen BD-957 is a passive 3-way antenna splitter designed to distribute a single signal to three independent receivers.
Key features
- 5–2400 MHz frequency range supports DVB-T, SAT, and CATV signals.
- All Ports Power Pass enables power supply to an antenna amplifier or LNB converter.
- Shielded metal housing protects against electromagnetic and radio frequency interference.

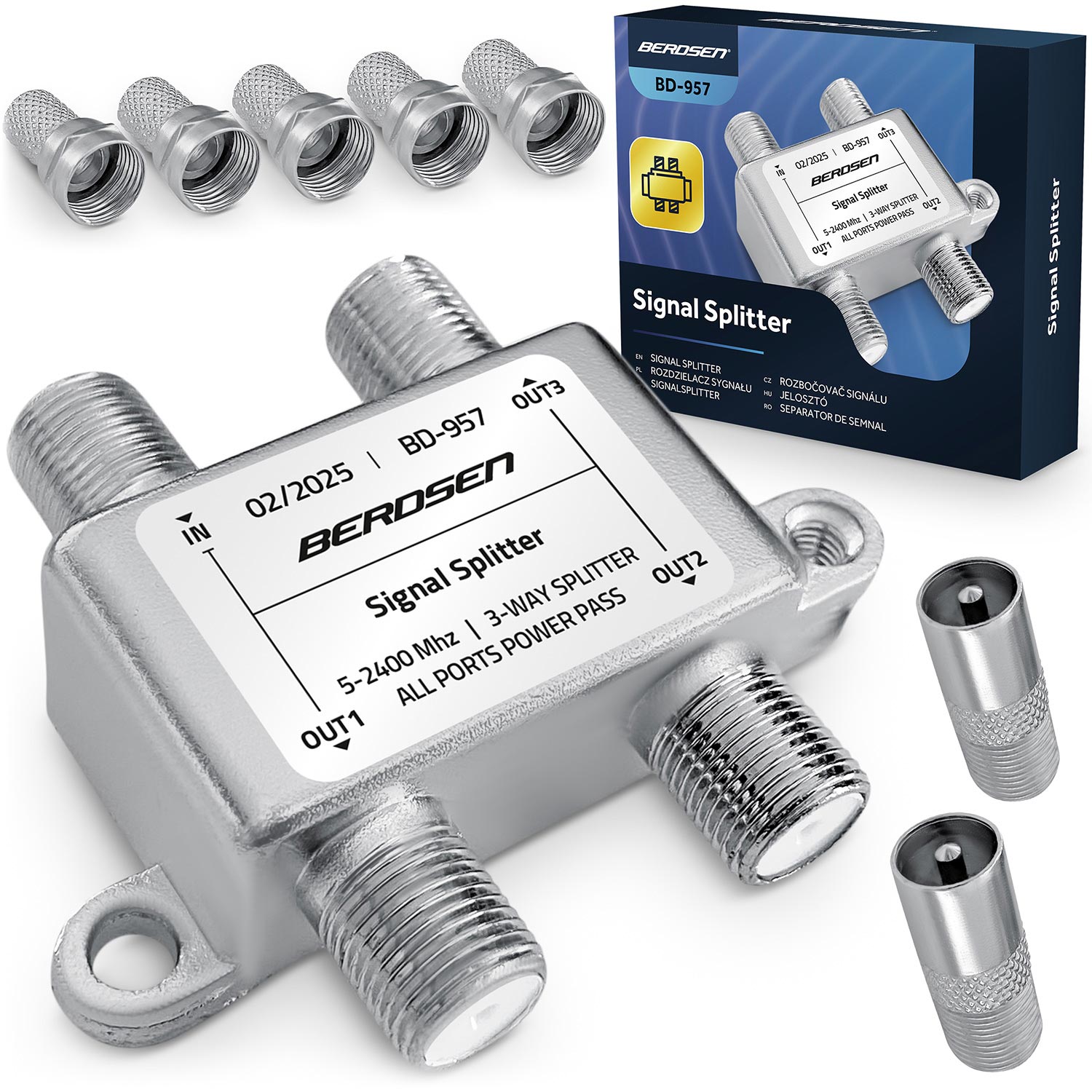

- Complete set includes 5 F-connectors and 2 F–IEC quick connectors.
| Brand | Berdsen |
|---|---|
| Model | BD-957 |
| Type | Passive 3-way signal splitter |
| Frequency range | 5–2400 MHz |
| Power Pass | All Ports Power Pass |
| Housing | Shielded metal |
| Connectors | F-type |

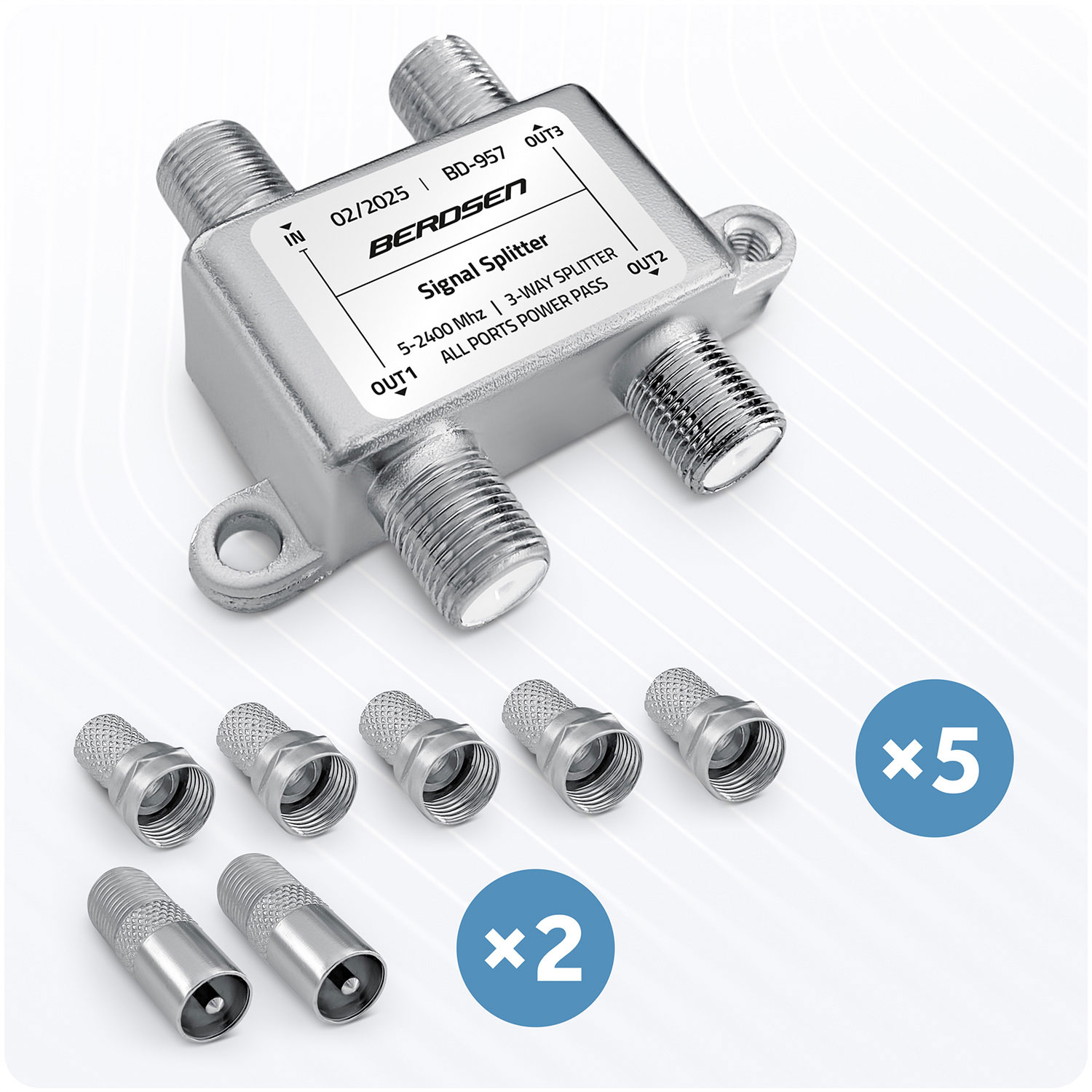

| Package contents | 1 × BD-957 splitter, 5 × F-connectors, 2 × F–IEC quick connectors |
| EAN | 5903890629564 |
|---|
What signal types are compatible with the BD-957 splitter?
The splitter operates within 5–2400 MHz, supporting DVB-T terrestrial, satellite (SAT), and cable (CATV) signals.
What is included in the package?
The set includes 1 Berdsen BD-957 splitter, 5 F-connectors, and 2 F–IEC quick connectors.
Does this splitter pass DC power?
Yes, it features All Ports Power Pass, allowing DC voltage to pass through all ports to power an amplifier or LNB converter.
