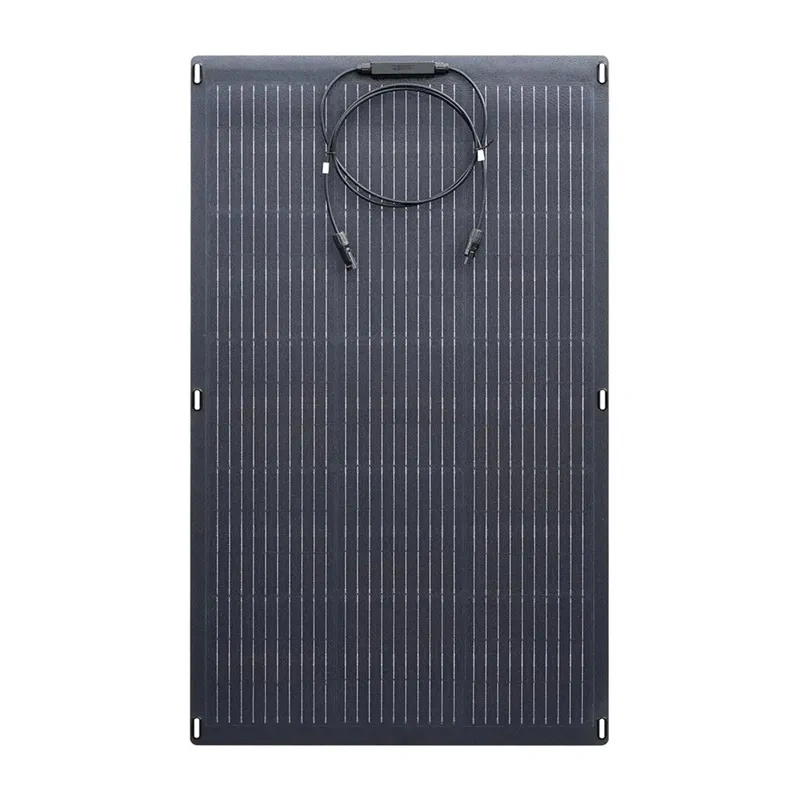

ALLPOWERS SF100 100 W flexible solar panel with MC4 connectors
Delivery options to:

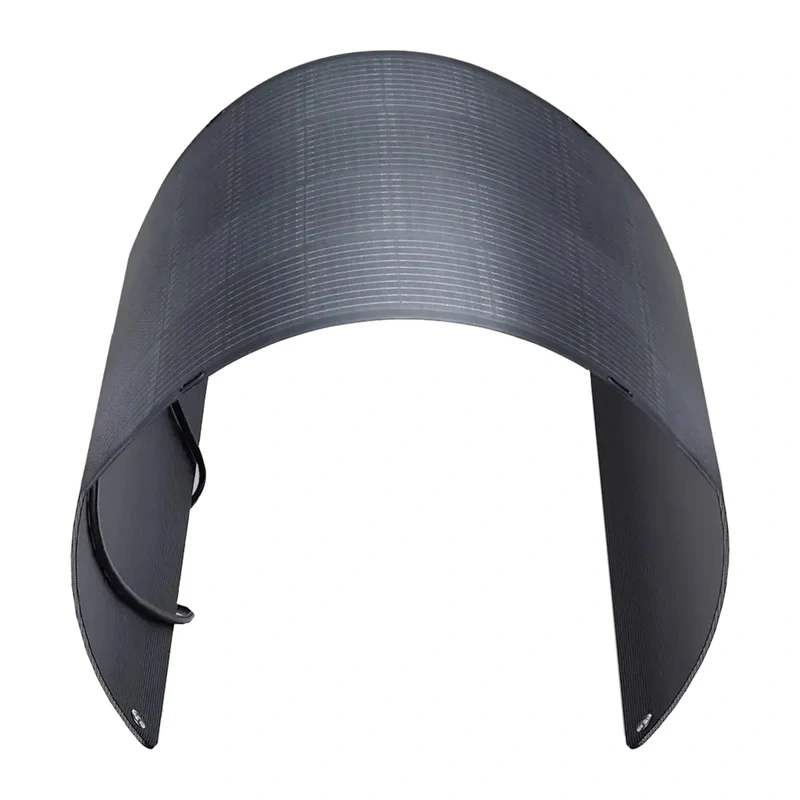

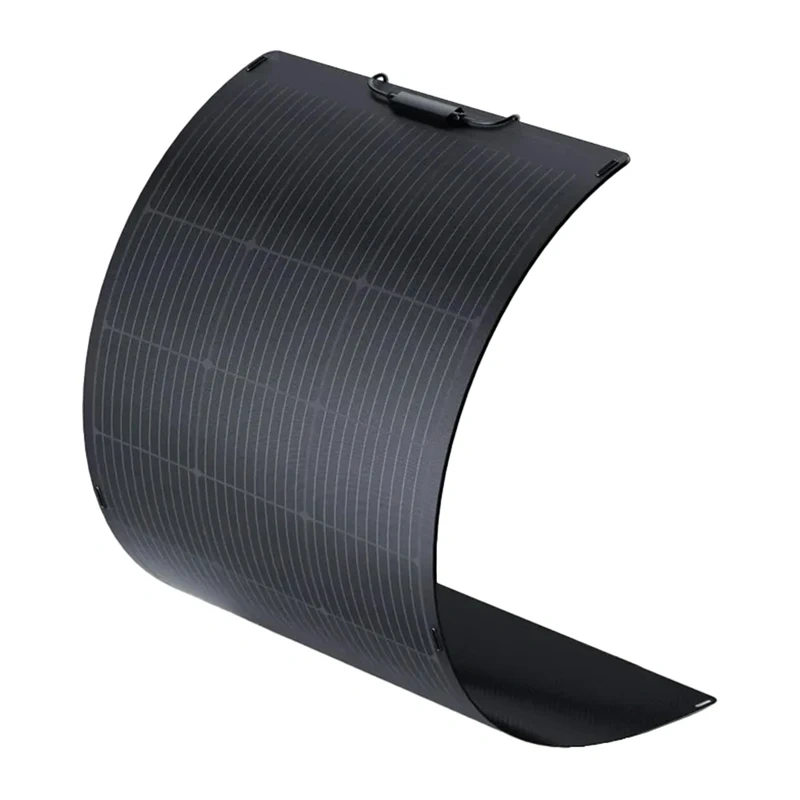

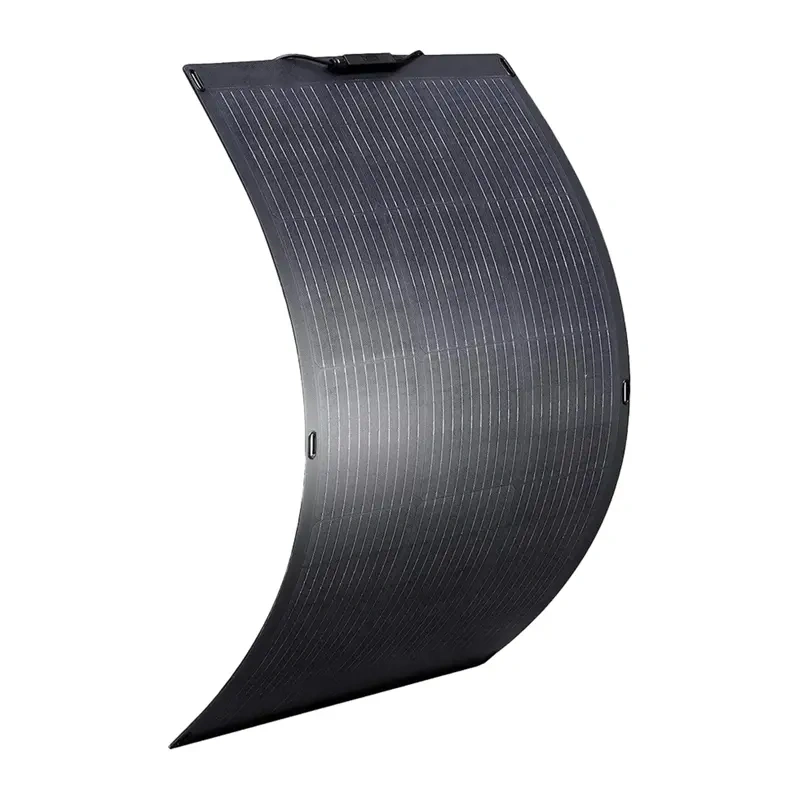

Choose countryThe ALLPOWERS SF100 is a flexible 100 W solar panel for motorhomes, trailers, boats and other surfaces where fitting a rigid module would be difficult. Its profile is 2.1 mm thick, and it can bend up to approximately 260°.
Mounting and connection
The flexible design accommodates slightly curved surfaces, with mounting holes along the edges to help secure the panel. Cables approximately 900 mm long terminate in MC4 connectors for connection to a compatible charge controller, energy storage system or other photovoltaic system components. The panel can be used in portable solar systems and small off-grid installations.
Cells and outdoor protection
- Monocrystalline cells: the declared efficiency of up to 25% applies to the cells themselves, not the complete module.
- Panel protection: the panel has an IP68 rating.
- Connection protection: the silicone-sealed junction box and MC4 connectors have an IP67 rating.
The panel is not designed to be submerged in water.
| Manufacturer | ALLPOWERS |
|---|---|
| Model | SF100 |
| Type | Flexible photovoltaic panel |
| Rated power | 100 W |
| Cell type | Monocrystalline |
| Declared cell efficiency | Up to 25% |
| Dimensions | 978 × 580 × 2.1 mm |
| Bendability | Up to approximately 260° |
| Panel protection rating | IP68 |
| Junction box protection rating | IP67 |
| MC4 connector protection rating | IP67 |
| Connectors | MC4 |
| Cable length | Approximately 900 mm |
| Mounting | Mounting holes along the panel edges |
| Use restriction | Not designed to be submerged in water |
| EAN | 6975274260396 |
|---|
What systems can the panel connect to?
Its MC4 connectors allow connection to a compatible charge controller, energy storage system or other photovoltaic system components.
Does the 25% efficiency apply to the complete panel?
No. The declared efficiency of up to 25% refers to the monocrystalline cells, not the complete photovoltaic module.
