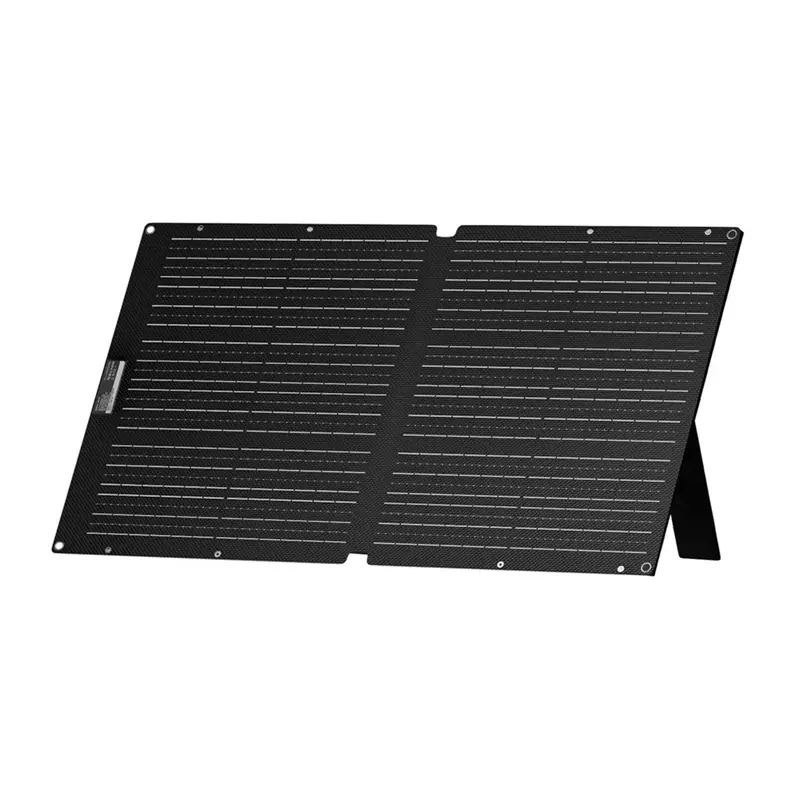

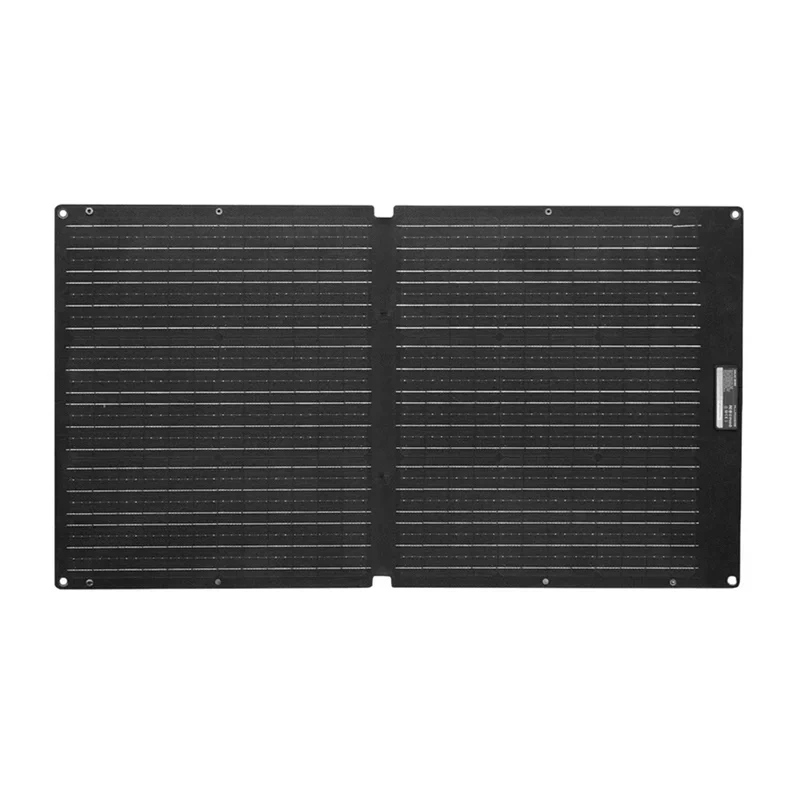

ALLPOWERS SOLAX SE100 100 W folding solar panel with MC4
Delivery options to:
Choose countryThe ALLPOWERS SOLAX SE100 is a 100 W folding solar panel for compatible portable power stations and solar generators. Take it camping, in a motorhome or on a boat, or use it as an additional energy source during a power outage.
Power generation and connection
Its monocrystalline cells have an efficiency of 23–25%, and the rated power tolerance is ±5%. Actual output depends on sunlight, temperature and panel orientation. The MC4 output and included MC4–XT60 cable connect to devices with suitable input specifications.
Positioning and transport

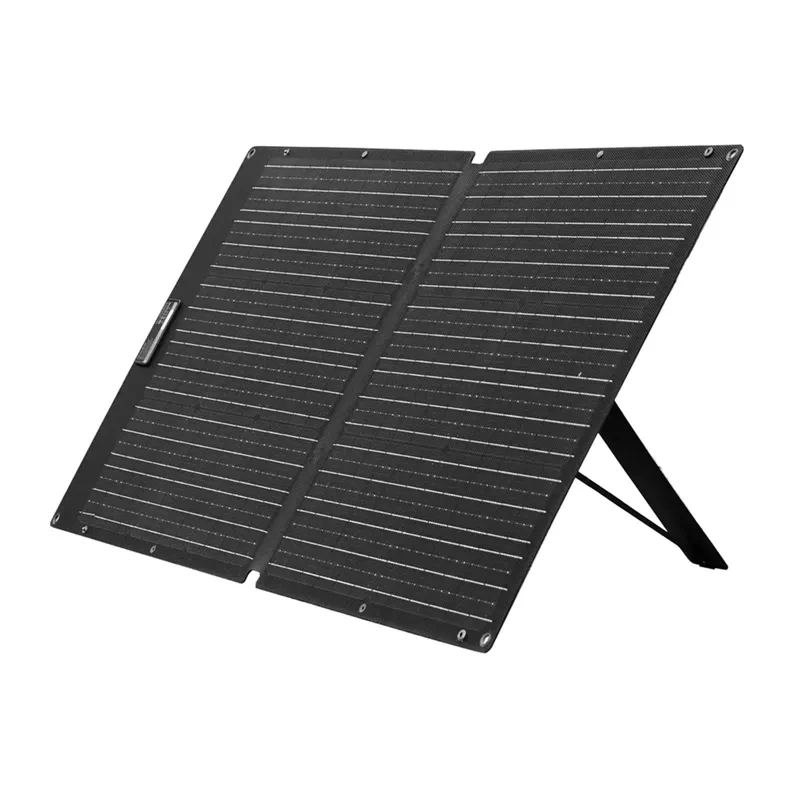

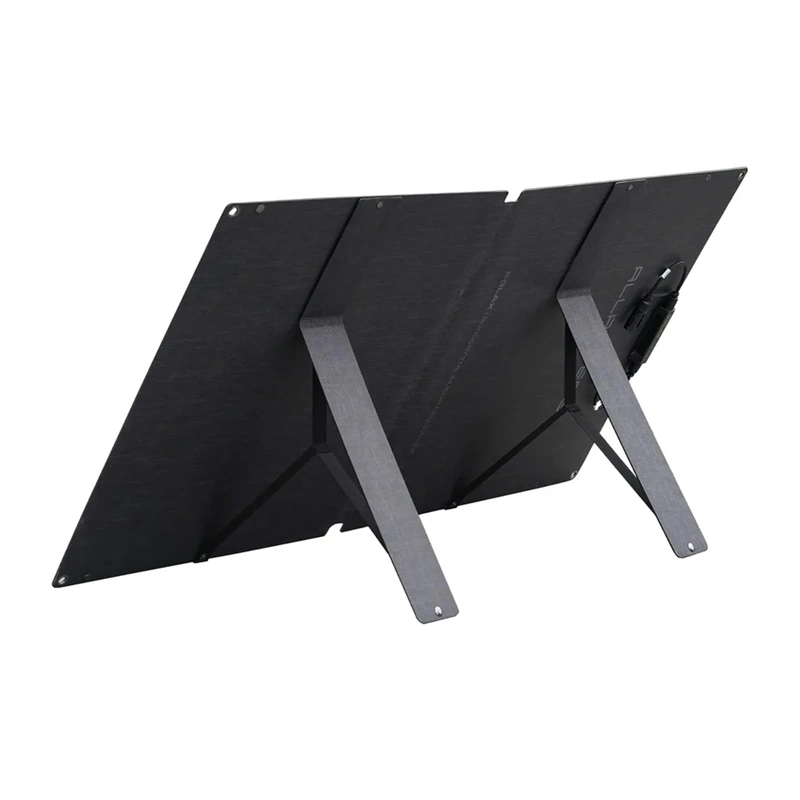

- Adjustable stand: change the tilt angle to face the panel towards the sun.
- Outdoor protection: the ETFE coating protects the cells while transmitting light, and the construction has an IP68 waterproof rating.

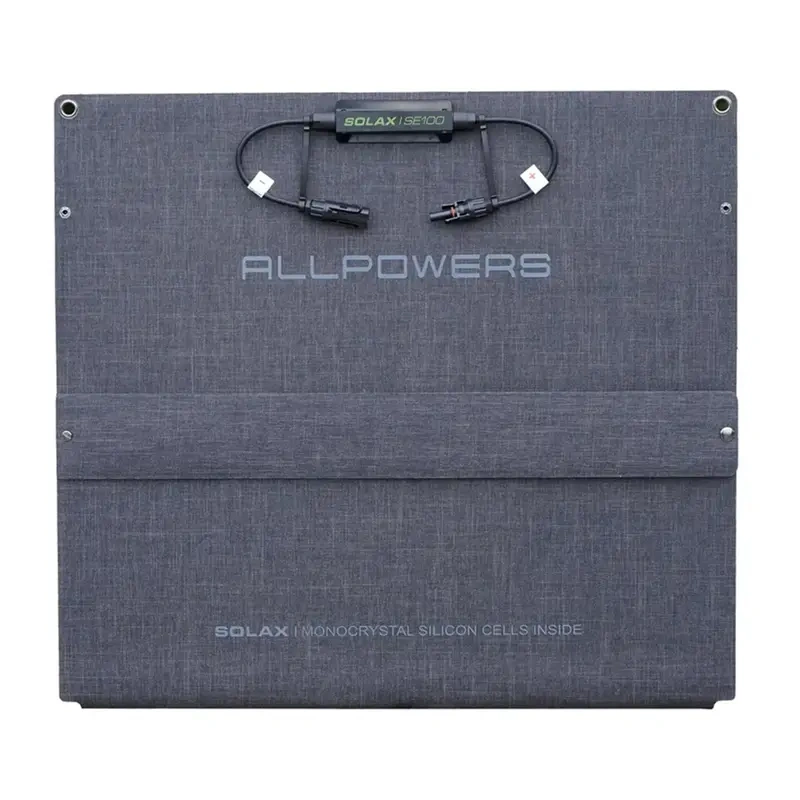

- Folding design: folded dimensions are 58.7 × 58.7 × 0.55 cm, with a net weight of 3.8 kg.
- Included: solar panel, MC4–XT60 cable and a bag for storage and transport.
The operating temperature range is −20 °C to 60 °C. Check that your power station’s solar input specifications match the panel’s electrical characteristics before connecting it.
| Manufacturer | ALLPOWERS |
|---|---|
| Model | SE100 |
| Type | Folding photovoltaic panel |
| Rated power | 100 W ±5% |
| Cell type | Monocrystalline silicon |
| Cell efficiency | 23–25% |
| Open-circuit voltage (Voc) | 24.48 V |
| Voltage at maximum power point (Vmp) | 20.8 V |
| Short-circuit current (Isc) | 5.33 A |
| Current at maximum power point (Imp) | 4.8 A |
| Surface material | ETFE |
| Protection rating | IP68 |
| Output connector | MC4 |
| Operating temperature | −20 °C to 60 °C |
| Unfolded dimensions | 105 × 58.7 × 0.3 cm |
| Folded dimensions | 58.7 × 58.7 × 0.55 cm |
| Net weight | 3.8 kg |
| Adjustable stand | Yes |
| EAN | 6975274261072 |
|---|
Will this panel work with any portable power station?
No. Compatibility depends on the power station’s input specifications and connection. The panel has an MC4 output and comes with an MC4–XT60 cable. Its Voc is 24.48 V, Vmp is 20.8 V, Isc is 5.33 A and Imp is 4.8 A.
Does the panel always deliver 100 W?
100 W is the rated power with a tolerance of ±5%. Actual output depends on sunlight, temperature and the orientation of the panel.
