Solar Panel Extension Cable Set 2x MC4 2m 6 mm² H1Z2Z2-K
Price: 15.90 €
| Products ID: | 185332 |
|---|---|
| Manufactured by: | Ecoflow |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
Delivery options to:

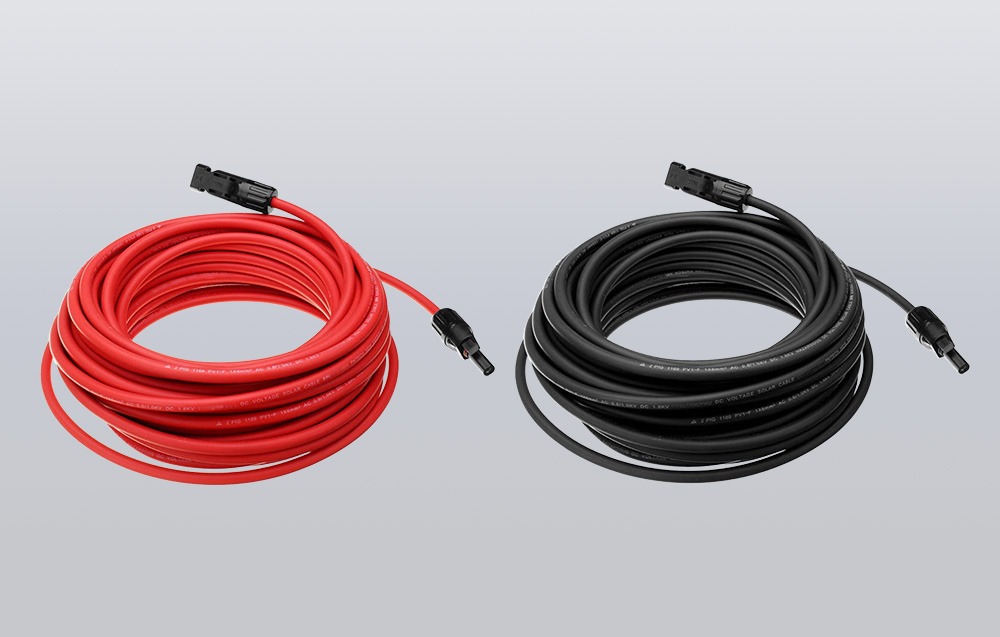

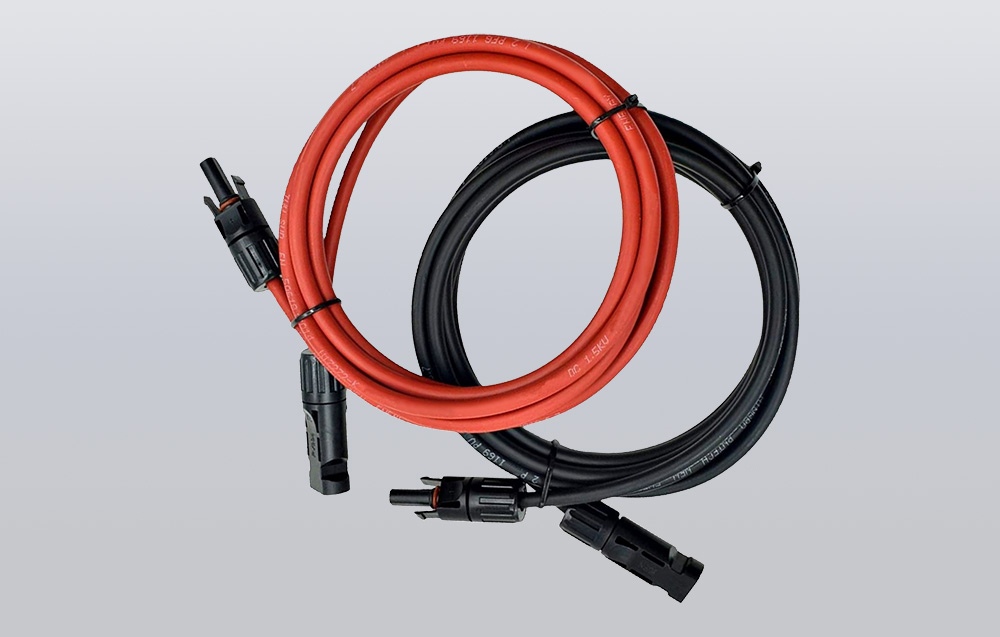

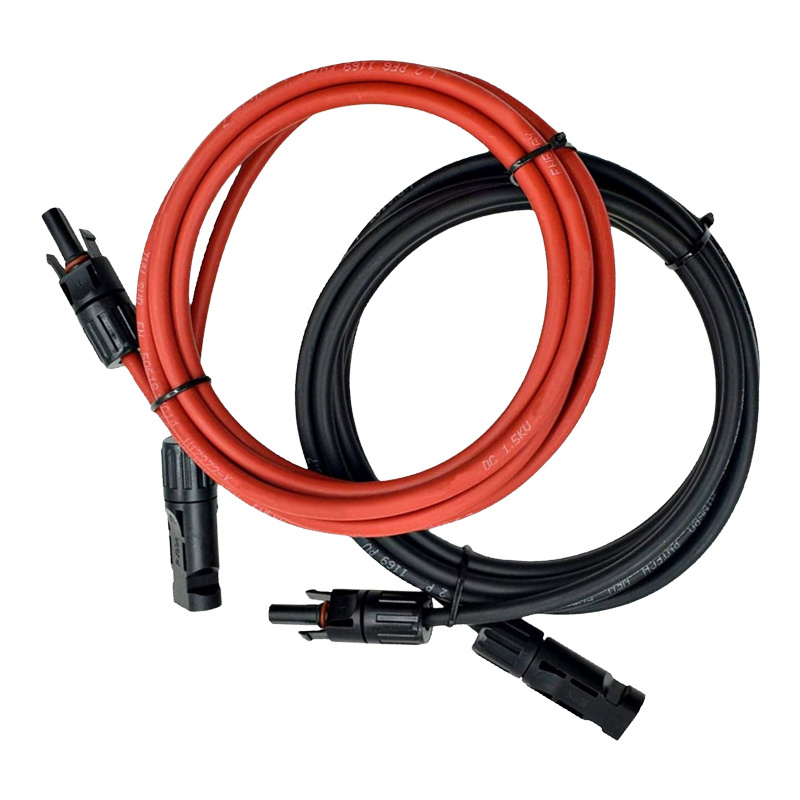

Choose countryThis set of two MC4 extension cables, each 2m long, is designed for reliable connection in photovoltaic installations.
Key Features

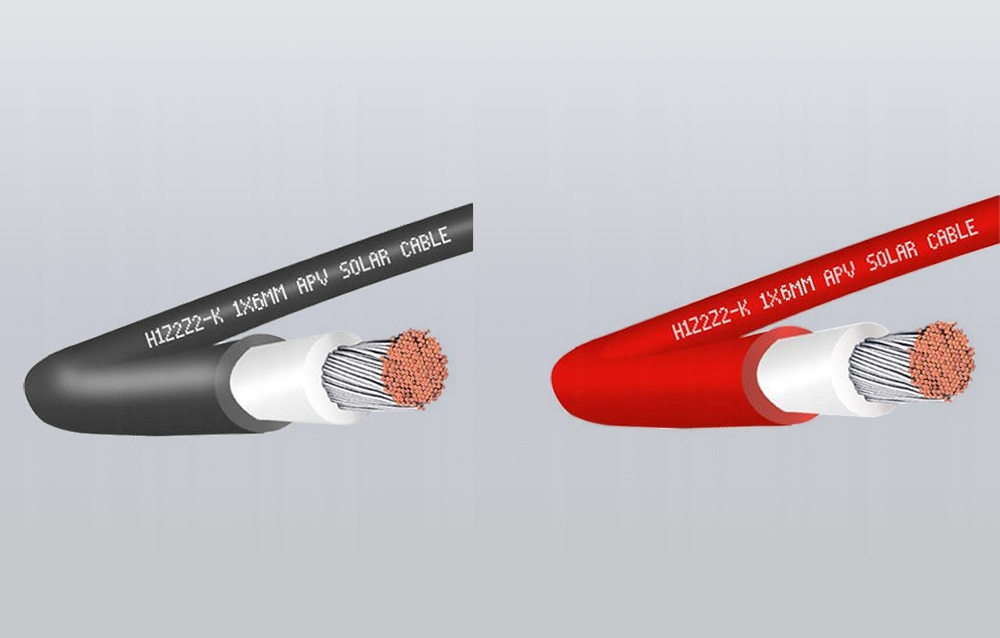

- Multi-stranded tinned copper core with halogen-free cross-linked plastic insulation
- H1Z2Z2-K cable type with a 6 mm² nominal conductor cross-section
- Operating voltage of 1.5 kV (1.8 kV) DC and rated voltage of 1.0/1.0 kV AC
- Resistant to UV radiation, fire, ozone, and harsh weather conditions
- Suitable for installation indoors, outdoors, and directly in the ground
- Wide operating temperature range from -40°C to +90°C
| Manufacturer | ADELID® Sp. z o.o. |
|---|---|
| Cable type | H1Z2Z2-K |
| Cable length | 2 m |
| Rated voltage | 1.0/1.0 kV AC |
| Operating voltage | 1.5 kV (1.8 kV) DC, according to EN 50618 |
| Insulation resistance | approx. 1000 MΩ/km |
| Test voltage (50Hz) | 6500 V (AC) |
| Rated conductor cross-section | 6.00 mm² |
| Outer diameter of the wire | 6.2 mm |
| Maximum diameter of a single wire in a conductor | 0.31 mm |
| Nominal insulation wall thickness | 0.7 mm |
| Nominal wall thickness of sheath | 0.8 mm |
| Max. resistance of the conductor at 20°C | 5.09 mΩ/m |
| Min. insulation resistance at 20°C | 580 MΩ/km |
| Current carrying capacity | according to EN 50618 |
| Resistance to ozone and atmospheric conditions | according to EN 50618 |
| UV resistance | according to EN 50618 |
| Resistance to fire | PN-EN 60332-1, LSOH |
| Expected service life | 25 years |
What is included in the package?
The package includes two MC4 extension cables, each measuring 2 m in length.
Can these cables be buried directly underground?
Yes, due to their protective coating, the cables can be installed indoors, outdoors, and directly in the ground.
What is the operating temperature range for these cables?
The cables operate within a temperature range of -40°C to +90°C, and can withstand up to 120°C for up to 20,000 hours.
