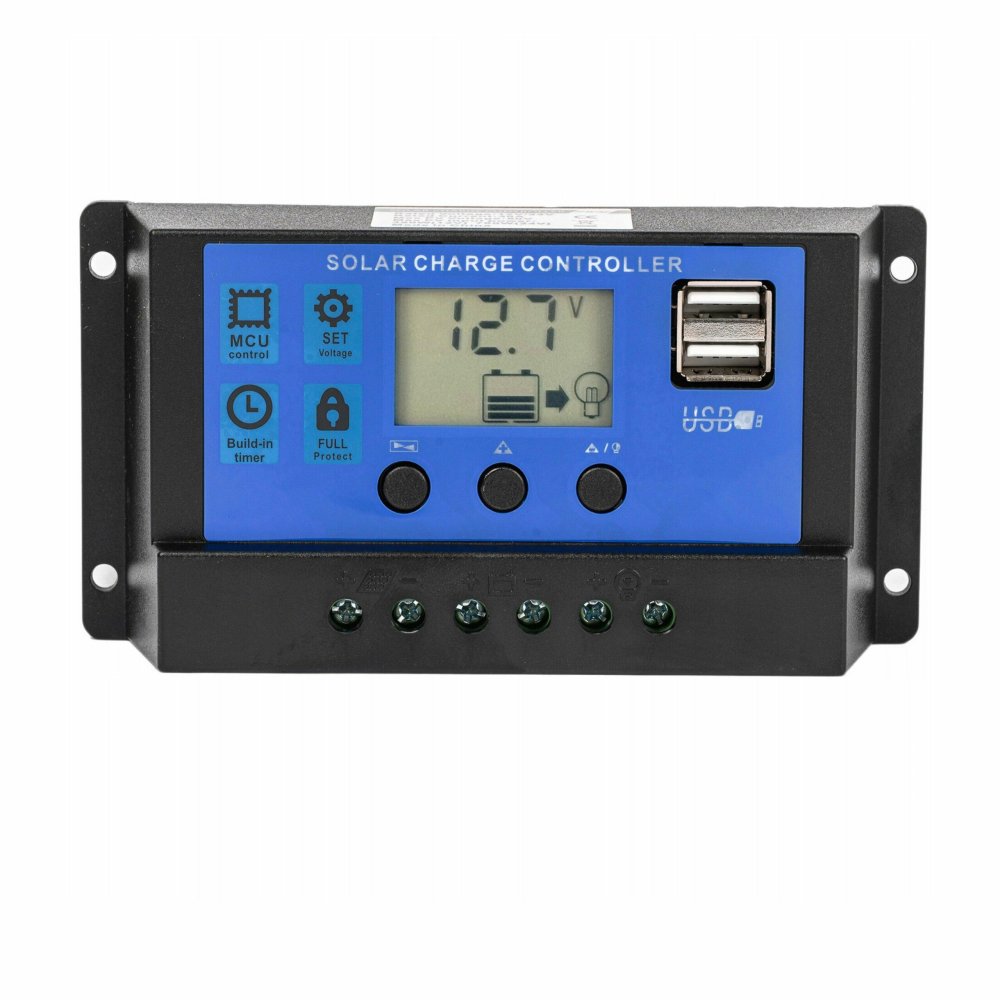

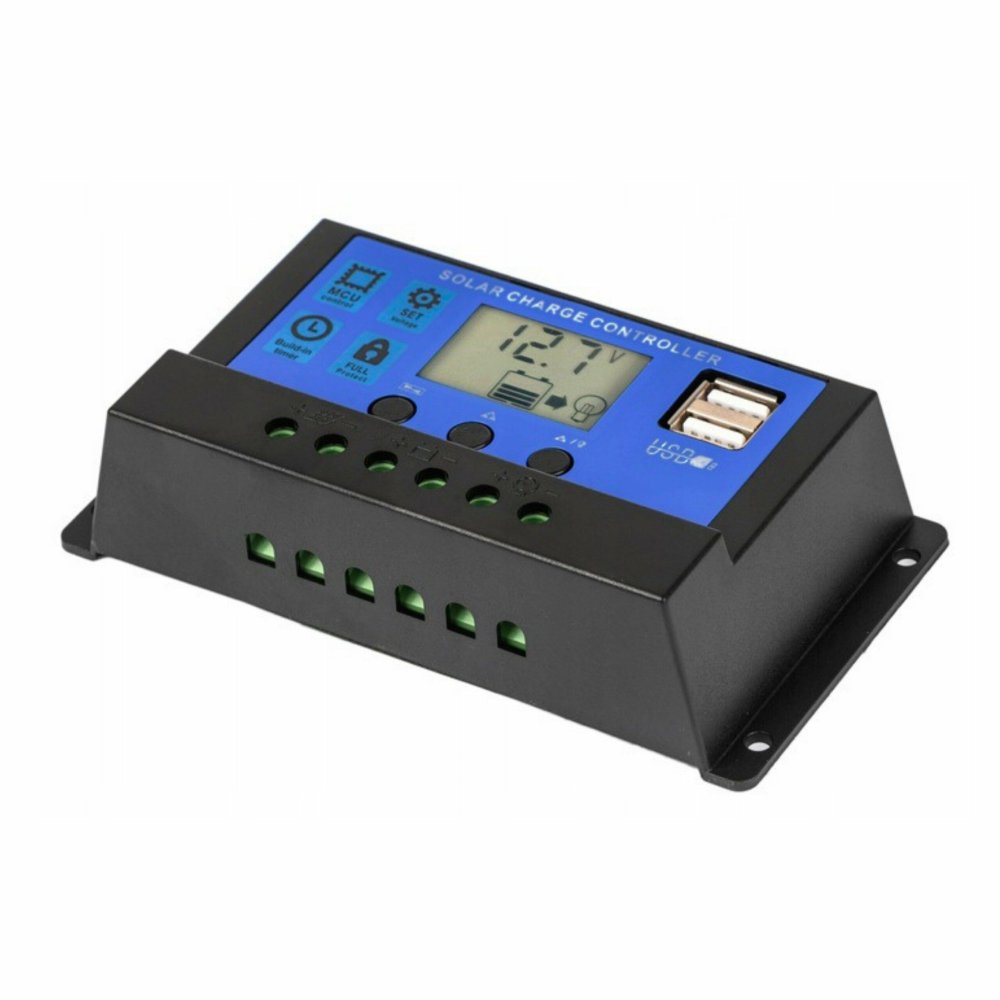

Solar charge controller, 60 A PWM, 12/24 V, LCD and 2 USB ports

11.10 € 12.20 € You save 1.10 € incl. VAT
SOLDOUT!

In your cart: 0

Get a stock alert

We will email you when this product is available again.

You are subscribed

We will email you as soon as this product is available again.

Delivery options to:

Choose country

This PWM solar charge controller regulates battery charging from solar panels and automatically detects whether the system runs at 12 V or 24 V. The maximum charge and discharge currents are both 60 A.

Monitoring and load control

  • LCD: shows battery voltage, charge level and charging status, along with panel status, LOAD output status and the controller’s operating mode.
  • Programmable LOAD output: offers a dusk mode for solar lighting and automatically disconnects the load at low voltage.
  • Two 5 V USB ports: charge phones and other mobile devices.
  • Multi-stage charging: automatically compensates for temperature.

System compatibility and protection

The controller supports AGM, gel and other lead-acid batteries in off-grid systems, such as those in motorhomes, boats and holiday cabins. The maximum panel power and voltage are 780 W and 23 V for 12 V systems, or 1560 W and 46 V for 24 V systems.

Built-in protection covers overcharge, over-discharge, overload, short circuits and reverse polarity.


TypePWM solar charge controller
System voltage12 V / 24 V (automatic detection)
Maximum charging current60 A
Maximum discharge current60 A
Maximum solar panel power780 W (12 V); 1560 W (24 V)
Maximum solar panel voltage23 V (12 V); 46 V (24 V)
DisplayLCD
USB ports2 × USB, 5 V / 2.5–3 A
Compatible batteriesAGM, GEL and other lead-acid batteries
Load disconnect voltageApprox. 11.1 V / 22.2 V
Load reconnect voltageApprox. 12.6 V / 25.2 V
Overcharge protection voltageApprox. 14.4 V / 28.8 V
Self-consumption current< 10 mA
Operating temperature−35 °C to +60 °C
ConditionNew
Load outputProgrammable LOAD output with dusk mode
Charging functionsMulti-stage charging with automatic temperature compensation
ProtectionOvercharge, over-discharge, overload, short-circuit and reverse-polarity protection; automatic low-voltage load disconnect
EAN5907621863388
Does this controller work with AGM and gel batteries?

Yes, it supports AGM, gel and other lead-acid batteries in 12 V or 24 V systems.

Can the controller operate solar lighting at dusk?

Yes, the programmable LOAD output has a dusk mode for solar lighting.
