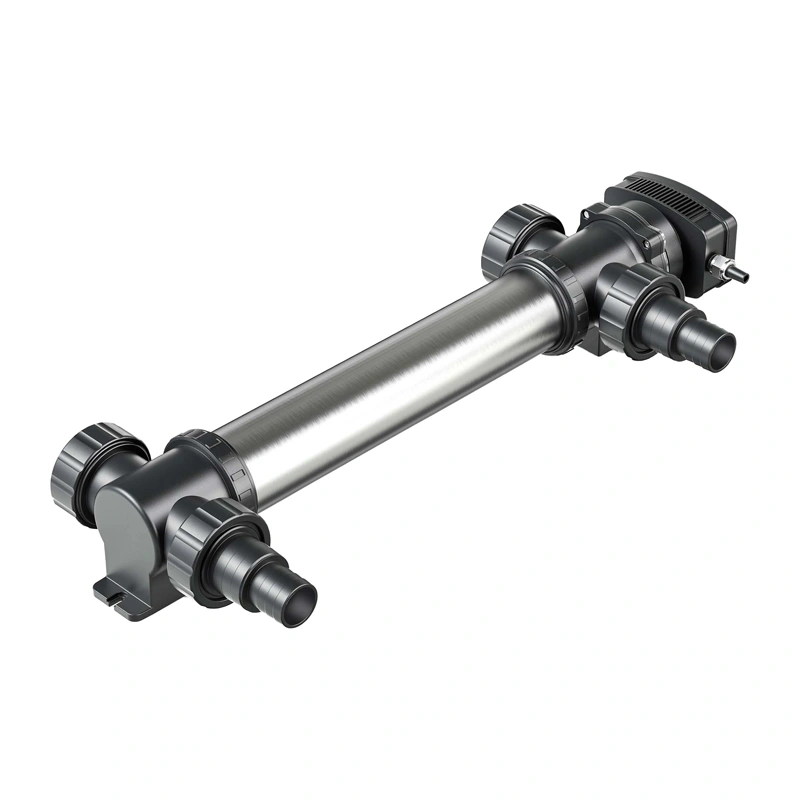

SUNSUN CUV-755 55 W UV-C pond lamp, up to 65 000 L

Price: 107.50 €

Products ID:	196853
Manufactured by:	Sunsun
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	6955974927089

Delivery options to:

Choose country

The SUNSUN CUV-755 is a 55 W flow-through UV-C lamp for ponds and water features up to 65 000 L. It helps control suspended algae responsible for cloudy, green water without using chemicals.

Water treatment within your filtration system

Water passes through the unit and is exposed to UV-C radiation. Algae form larger clusters that are easier for a mechanical filter to capture. The unit also helps reduce bacteria and other microorganisms in the water. For best results, use it alongside appropriately selected biological and mechanical filtration.

Construction and connection

Reflective housing: stainless steel reflects UV-C radiation so it can interact with the water again.
Flow path: the design has no internal helical coil, making cleaning easier and reducing contaminant build-up.
Connections: universal Ø 38 mm and Ø 50 mm connections link the unit to a filtration system.
Operating limits: maximum flow of 8 000 L/h and maximum pressure of 1 bar.

The unit requires a 220–240 V / 50 Hz power supply and has a 5 m power cord. Its operating temperature range is 4 °C to 35 °C. UV-C radiation acts on the flowing water inside the unit.

Manufacturer	SUNSUN
Model	CUV-755
UV-C power	55 W
Maximum pond capacity	65 000 L
Recommended / maximum flow rate	8 000 L/h
Maximum operating pressure	1 bar
Housing material	Stainless steel, ASA, ABS
Power supply voltage	220–240 V / 50 Hz
Protection rating	IP44
Protection class	I
Power cord length	5 m
Cable cross-section	3 × 0.75 mm²
Operating temperature	4–35 °C
Connections	Ø 38 mm, Ø 50 mm
Device length	684 mm

Does the UV-C lamp replace a pond filter?

The lamp is intended to work with a filtration system. UV-C treatment causes algae to form larger clusters that a mechanical filter can capture. Appropriately selected biological and mechanical filters are recommended for best results.

Which systems can the lamp connect to?

It has Ø 38 mm and Ø 50 mm connections. It is designed for ponds up to 65 000 L, a maximum flow of 8 000 L/h and an operating pressure of up to 1 bar.
