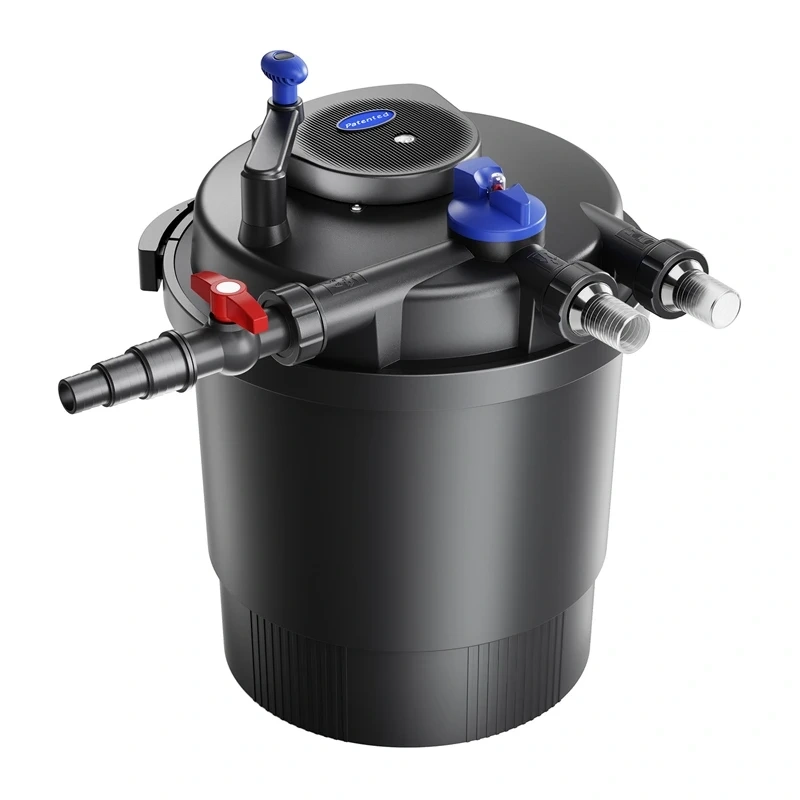

SUNSUN CPF-20000 pond pressure filter with 36 W UV-C lamp
Delivery options to:
Choose countryThe SUNSUN CPF-20000 is a pressure filter for cleaning water in ponds and fish tanks. It combines mechanical and biological filtration with a 36 W UV-C lamp and suits fish ponds up to 20 m³ or ornamental ponds without fish up to 40 m³.
Multi-stage water filtration
Filter elements trap suspended particles, plant debris and other fine contaminants. The filter media provide conditions for beneficial bacteria to develop, while the UV-C lamp helps reduce free-floating algae and green water. The filter chamber holds 50 l and supports a maximum flow rate of 12 000 l/h.
Connections and maintenance
- Hose connections: fits 1¼", 1½" and 2" hoses.
- Maintenance: a clogging indicator and quick-clean system for the filter elements.
- Positioning: the filter can be partially or fully concealed at the pond edge.
- Water return: the pressurised design allows treated water to be delivered to a higher stream or waterfall.
The housing is designed for outdoor use. The supply is 220–240 V / 50 Hz, maximum operating pressure is 0.3 bar and operating temperature is 4–35 °C.
| Manufacturer | SUNSUN |
|---|---|
| Model | CPF-20000 |
| UV-C lamp power | 36 W |
| Supply voltage | 220–240 V / 50 Hz |
| Maximum flow rate | 12 000 l/h |
| Maximum fish pond volume | 20 m³ |
| Maximum ornamental pond volume | 40 m³, without fish |
| Filter capacity | 50 l |
| Hose connections | 1¼", 1½", 2" |
| Maximum operating pressure | 0.3 bar |
| Protection rating | IP44 |
| Operating temperature | 4–35 °C |
| Material | ABS, PP, PC |
| Dimensions | 450 × 450 × 550 mm |
| Filtration types | Mechanical, biological and UV-C |
| Maintenance features | Clogging indicator and quick-clean system for filter elements |
| EAN | 6955974903748 |
|---|
What pond size is this filter suitable for?
It suits fish ponds up to 20 m³ and ornamental ponds without fish up to 40 m³. Maximum flow rate is 12 000 l/h.
Can it return water to a waterfall?
Yes. The pressurised design allows treated water to be delivered to a higher stream or waterfall. Maximum operating pressure is 0.3 bar.
