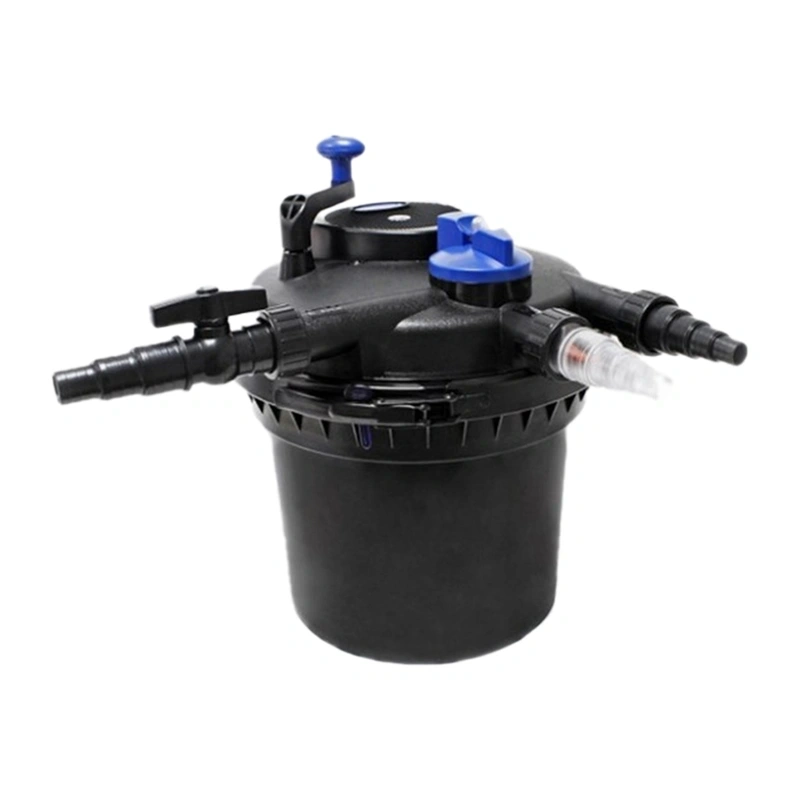

SUNSUN CPF-5000 pond pressure filter with 11 W UV-C lamp
Delivery options to:
Choose countryThe SUNSUN CPF-5000 is a compact pressure filter for small ponds, ornamental ponds and fish tanks. It combines mechanical and biological filtration with an 11 W UV-C lamp to help limit the algae responsible for green water.
Filtration and pond size
The filter supports fish ponds up to 4 m³ and ornamental ponds without fish up to 8 m³. It has a maximum flow rate of 8 000 l/h and a 20 l filter chamber.
- Mechanical filtration: filter elements trap fine suspended particles, sediment and organic debris.
- Biological filtration: the elements provide a habitat for beneficial bacteria that break down organic compounds.
- UV-C treatment: the lamp helps limit suspended algae, which are then captured by the filtration system.
- Maintenance: a filter-element cleaning system and clogging indicator help monitor operation.
Connections and installation
Hose connections accommodate 20, 25, 32 and 38 mm diameters. The pressurised design allows the filter to be partially concealed beside the pond and cleaned water to be directed to small cascades, streams or decorative features above the filter level. The unit requires a 220–240 V, 50 Hz supply. The pump needed to operate the filter is not included and must be purchased separately.
| Manufacturer | SUNSUN |
|---|---|
| Model | CPF-5000 |
| UV-C lamp power | 11 W |
| Unit power | 15 W |
| Supply voltage | 220–240 V / 50 Hz |
| Maximum flow rate | 8 000 l/h |
| Maximum fish pond volume | 4 m³ |
| Maximum ornamental pond volume without fish | 8 m³ |
| Filter screen area | 12 m² |
| Filter capacity | 20 l |
| Hose connections | 20 / 25 / 32 / 38 mm |
| Dimensions | φ382 × 474 mm |
| Filtration types | Mechanical, biological and UV-C |
| Maintenance features | Filter-element cleaning system and clogging indicator |
| EAN | 6955974902192 |
|---|
Is a pump included?
No. The pump required to operate the filter must be purchased separately.
Can it feed a cascade above the filter?
Yes. The pressurised design allows cleaned water to be supplied to small cascades, streams or decorative features above the filter level.
