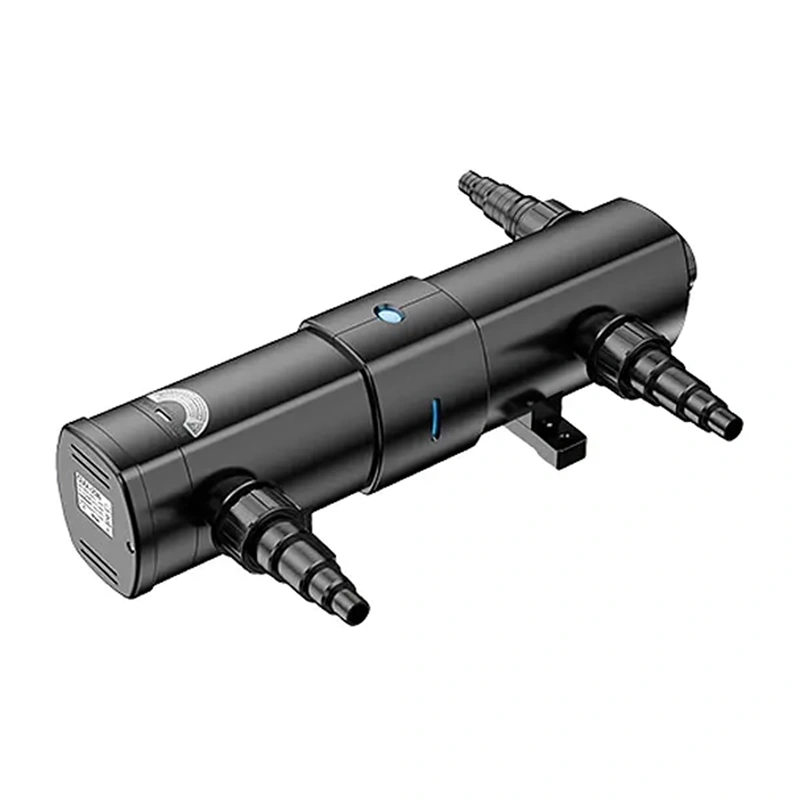

SUNSUN CUV-218 UV-C pond lamp, 18 W, up to 20 000 L

Price: 67.70 €

Products ID:	196848
Manufactured by:	Sunsun
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	6955974908071

Delivery options to:

Choose country

The SUNSUN CUV-218 is a UV-C lamp for treating water in ponds and other water bodies up to 20 000 L. It supplements filtration by limiting the reproduction of algae, bacteria and other microorganisms in the water.

Water treatment within the filtration circuit

UV-C radiation acts on microorganisms as water passes through the lamp chamber, helping to reduce green and cloudy water. The unit is designed for continuous operation in the water circuit alongside mechanical and biological filtration.

Power: the UV-C lamp is rated at 18 W, while total consumption including the power supply unit is 22 W.
System limits: maximum flow is 2 500 L/h and maximum operating pressure is 0.3 bar.
Connections: connectors accommodate 3/4", 1" and 1 1/2" hoses with approximate internal diameters of 20, 25 and 38 mm.

Installation space

The unit is 460 mm long. When integrating it into an existing filtration system, allow for its length and check the hose sizes, flow rate and operating pressure.

Manufacturer	SUNSUN
Model	CUV-218
Power consumption	22 W
UV-C lamp power	18 W
Maximum water capacity	20 000 L
Maximum flow rate	2 500 L/h
Maximum operating pressure	0.3 bar
Connections	3/4", 1" and 1 1/2" (approx. 20 mm, 25 mm and 38 mm)
Device length	460 mm
Operating mode	Designed for continuous operation in the water circuit
