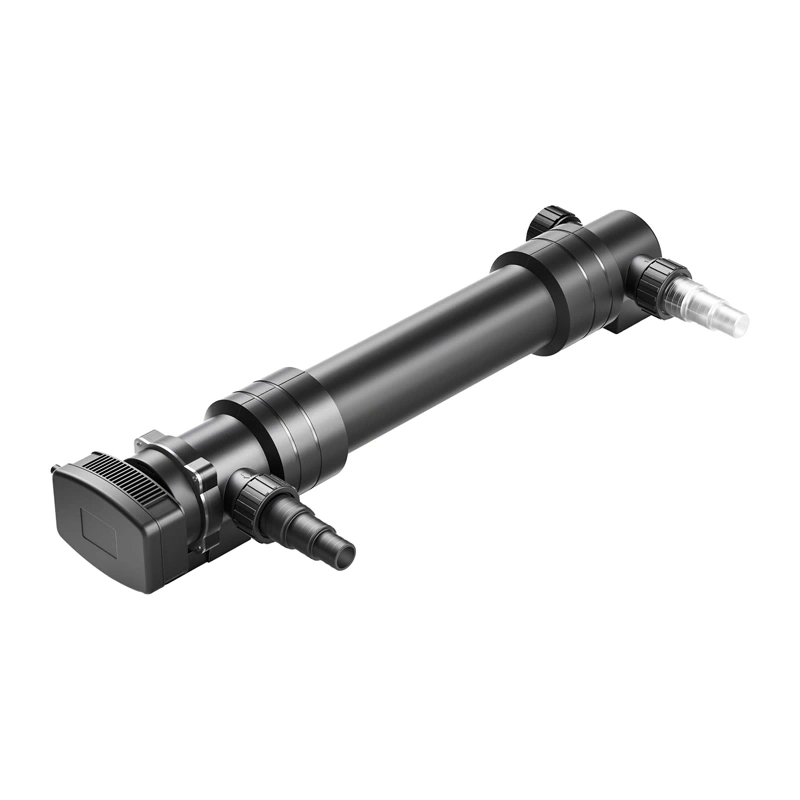

SunSun CUV-655 55 W UV-C pond clarifier

Price: 108.40 €

Products ID:	196852
Manufactured by:	Sunsun
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	6955974919848

Delivery options to:

Choose country

The SunSun CUV-655 is a 55 W flow-through UV-C lamp for pond and water-feature filtration systems. It helps reduce floating algae, bacteria and other microorganisms. It supports ponds up to 65 000 L, with a separate recommendation of approximately 18 000 L for koi ponds.

UV-C water treatment

The internal flow design prolongs water contact with UV-C radiation, while a stainless steel reflector directs rays back into the treatment chamber. Treated microorganisms clump into larger particles that can then be removed by a filter. Use alongside a biological filter is recommended. With a suitably selected filtration system, the first noticeable improvement in water clarity may appear in as little as 14 days.

Connections and operating conditions

Flow: recommended flow rate of 8 000 L/h and maximum operating pressure of 1 bar.
Hoses: connections for 25, 32, 38 and 50 mm hoses; the symmetrical ports can serve as either inlet or outlet.
Power: 220–240 V / 50 Hz supply with a 5 m power cable.
Installation space: dimensions of 691 × 261 × 118 mm; operating temperature of 4–35 °C.

The ASA and ABS housing also contains 2 ferrite magnets.

Manufacturer	SunSun
Model	CUV-655
UV-C power	55 W
Number of lamps	1
Maximum pond capacity	Up to 65 000 L
Recommended flow rate	8 000 L/h
Maximum operating pressure	1 bar
Supply voltage	220–240 V / 50 Hz
IP protection rating	IP44
Electrical protection class	I
Hose connections	25 / 32 / 38 / 50 mm
Power cable length	5 m
Cable cross-section	3 × 0.75 mm²
Housing material	ASA, ABS
Operating temperature	4–35 °C
Dimensions	691 × 261 × 118 mm
Colour	Black
Reflector material	Stainless steel
Magnets inside housing	2 ferrite magnets
Port configuration	Symmetrical ports can be used as either inlet or outlet
Recommended UV-C power for koi ponds	Approximately 3 W per 1 000 L of water
Recommended koi pond capacity	Approximately 18 000 L

Is it suitable for a 65 000 L koi pond?

65 000 L is the stated maximum pond capacity. For koi ponds, the manufacturer recommends approximately 3 W of UV-C power per 1 000 L, giving this 55 W model a recommended koi pond capacity of approximately 18 000 L.

Does the UV-C lamp replace a filter?

No. It treats the flowing water, while the resulting particles are removed by a filter. Use with a biological filter is recommended for the best results.
