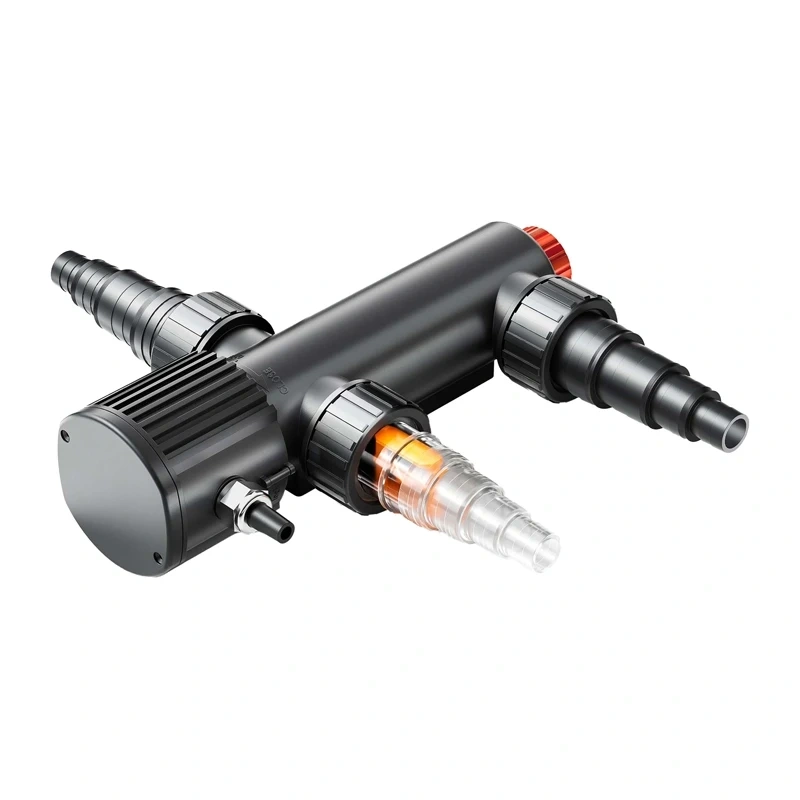

SUNSUN CUV-209 UV-C pond clarifier, 9 W, up to 8 000 L

Price: 40.30 €

Products ID:	196841
Manufactured by:	Sunsun
Availablity:	Ready to Order
Delivery Time	5-12 business days
EAN:	6955974908057

Delivery options to:

Choose country

The SUNSUN CUV-209 is a UV-C pond clarifier that limits free-floating algae, bacteria and other microorganisms associated with cloudy or green water. This 9 W lamp model is intended for ponds up to 8 000 L, or up to 3 000 L when keeping koi.

Water treatment within the filtration system

UV-C radiation acts inside the unit as water flows through it. It damages algae cells and encourages them to form larger clusters that a mechanical filter can capture. The treatment does not require added chemicals. Initial results from regular operation may be visible after about 14 days.

Connections and installation

Water flow: the recommended flow rate is 1 500 L/h and the maximum operating pressure is 0.3 bar.
Hose fit: stepped connections range from 3/4" to 1 1/2", approximately 19–38 mm.
Layout: the symmetrical design allows either port to act as the inlet or outlet, and the unit can be wall-mounted.
Power: 220–240 V / 50 Hz supply, 12 W power consumption and a 5 m power cord.

An internal flow guide prolongs water contact with the UV-C lamp. The housing is made from ABS and ASA plastics, and the operating water temperature range is 4–35 °C.

Manufacturer	SUNSUN
Model	CUV-209
UV-C lamp power	9 W
Power consumption	12 W
Maximum pond capacity	Up to 8 000 L
Maximum pond capacity with koi carp	Up to 3 000 L
Recommended flow rate	1 500 L/h
Maximum operating pressure	0.3 bar
Hose connections	3/4"–1 1/2" (approx. 19–38 mm)
Supply voltage	220–240 V / 50 Hz
Protection rating	IP44
Protection class	I
Power cord length	5 m
Cable cross-section	3 × 0.75 mm²
Operating water temperature	4–35 °C
Housing material	ABS, ASA
Dimensions	276 × 300 × 79 mm
Colour	Black
Number of UV-C lamps	1
Mounting option	Wall mounting
Port configuration	Either port can be used as the inlet or outlet

Is this clarifier suitable for a koi pond?

Yes. For koi ponds, the recommended maximum volume is 3 000 L. For other ponds, the stated maximum capacity is 8 000 L.

Does the UV-C lamp replace a mechanical filter?

UV-C treatment encourages algae to form larger clusters. These are then captured by a mechanical filter, so the lamp does not replace mechanical filtration.
