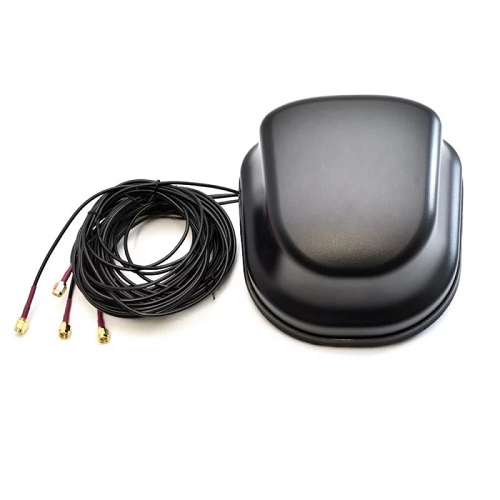

5G NR MIMO 4x Antenna (698–5000 MHz, 4 dBi, IP67, 4x 3m)
106.80 €
Hismart
Products ID: 170541
In supplier warehouse
Available to order: 5 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe multi-band 5G NR MIMO 4x antenna is designed for cellular network connectivity across a broad frequency range from 698 to 5000 MHz.
Key features
- MIMO 4x technology with linear polarization
- Frequency range: 698–960 / 1710–2690 / 2900–3800 / 4400–5000 MHz
- Signal gain: 4 dBi
- IP67 ingress protection rating
- Equipped with 4 cables (3 m each)
- RoHS compliant
| Frequency range | 698~960 / 1710~2690 / 2900~3800 / 4400~5000 MHz |
|---|---|
| Gain | 4 dBi |
| Polarization | Linear |
| Ingress protection | IP67 |
| Cables | 4x 3 m |
| Compliance | RoHS |
| EAN | 9990000992232 |
|---|
How many cables are included and what is their length?
The antenna comes with 4 integrated cables, each measuring 3 meters in length.
What frequency ranges does this antenna cover?
It covers 698–960 MHz, 1710–2690 MHz, 2900–3800 MHz, and 4400–5000 MHz frequency bands.
Is the antenna suitable for outdoor installation?
Yes, the antenna is rated IP67 for ingress protection against dust and water.
