GSM Antenna, 824-960/1710-2170MHz, 2dBi, 58mm
13.60 €
Hismart
Products ID: 170444
In supplier warehouse
Available to order: 8 pcs.
Delivery Time 5–10 business days
Delivery options to:

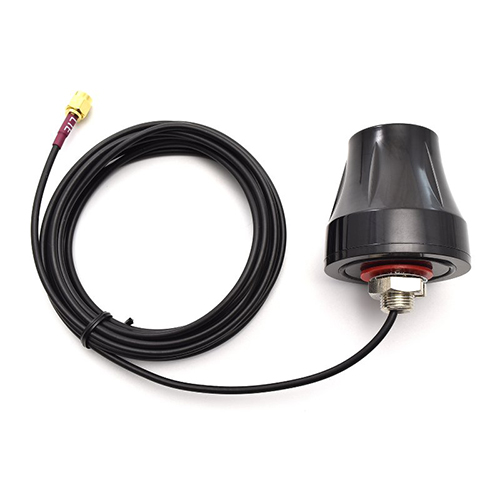

Choose countryA compact 58mm omnidirectional GSM antenna designed for 824–960MHz and 1710–2170MHz operating frequencies.
Key Features
- Frequency range: 824~960 / 1710~2170MHz
- Gain: 2 dBi

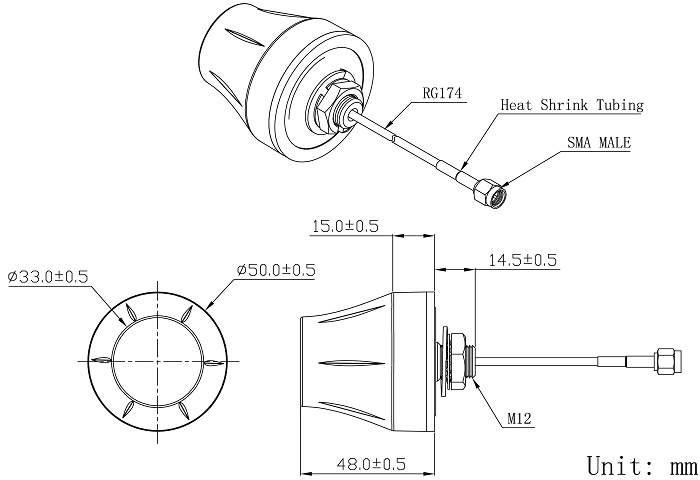

- Height: 58mm
- Includes 1m cable with SMA connector and mounting screw
- IP67 waterproof and dustproof antenna body (protection class does not apply to the SMA connector)
- RoHS compliant
| Antenna type | Omnidirectional GSM |
|---|---|
| Frequency | 824~960 / 1710~2170MHz |
| Gain | 2 dBi |
| Height | 58mm |
| Cable length | 1m |
| Connector | SMA |
| Ingress protection | IP67 (antenna body) |
| Compliance | RoHS |
| EAN | 9990000990832 |
|---|
What cable and connector are included?
The antenna comes with an integrated 1m cable fitted with an SMA connector.
Is the antenna waterproof?
The antenna body is rated IP67 for water and dust resistance. This rating does not apply to the cable's SMA connector.
