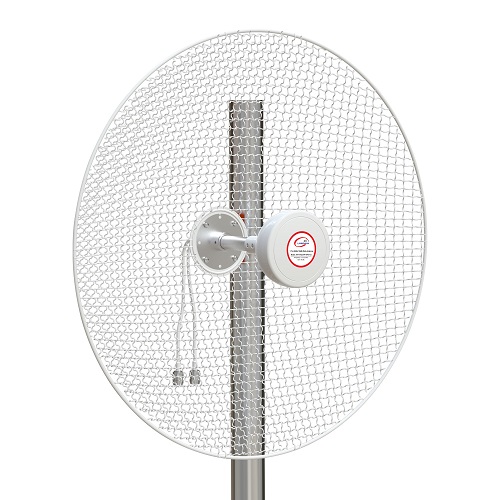

5G / LTE / CBRS 2x2 MIMO Dish Antenna, 1.7-4.2GHz, White
Price: 199.90 €
| Products ID: | 173199 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993505 |
Delivery options to:
Choose countryDual-polarized directional dish-design MIMO antenna engineered for LTE, 5G, CBRS, and Wi-Fi applications. Operating across two frequency bands with 2x2 MIMO support, it transmits and receives two independent signals simultaneously for long-distance connectivity in weak signal areas.
Key Features
- Dual frequency bands: 1710–2690 MHz and 3300–4200 MHz
- Gain: 1x 20±1 dBi (1.7–2.7 GHz) and 1x 22±1 dBi (3.3–4.2 GHz)
- Dual slant polarization (+/-45°)
- Connectors: 2x N Female
- Lightning protection with DC grounding
- Pole mount compatible with 30–50 mm diameter masts
| Frequency range | 1710-2690MHz / 3300-4200MHz |
|---|---|
| Gain | 1x 20±1dBi for 1.7-2.7 GHz, 1x 22±1dBi for 3.3-4.2 GHz |
| Polarization | Dual slant +/-45° |
| Beam width (1710-2690 MHz) | Horizontal 15°±5°, vertical 15°±5° |
| Beam width (3300-4200 MHz) | Horizontal 12°±5°, vertical 12°±5° |
| Connector | 2x N Female |
| Antenna diameter | 600 mm |
| Mounting | On a pole: diameter 30-50 mm |
| Lightning protection | DC grounding |
| Operating temperature | -40°C ~ +70°C |
| Color | White |
| Weight | 2kg |
| Warranty | 24 months |
What network standards are supported by this antenna?
The antenna supports LTE, 5G, CBRS, cellular networks, DAS (Distributed Antenna Systems), and 2.4GHz Wi-Fi (IEEE 802.11b/g/n).
What mast diameter is required for installation?
The integrated mount fits poles and masts with an outer diameter of 30 mm to 50 mm.
What type of RF connectors does the antenna have?
The antenna is equipped with two standard N Female connectors.
