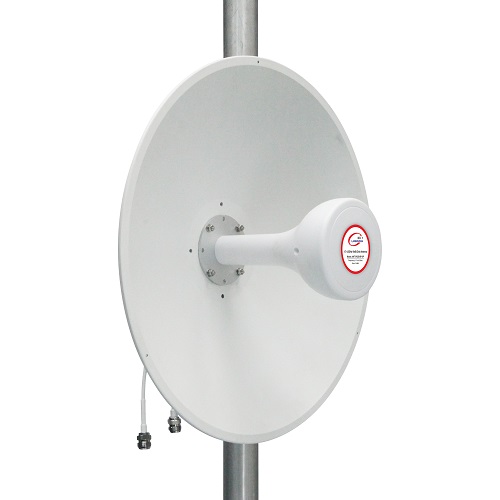

5G / LTE / CBRS 2x2 MIMO Dish Antenna, 1.7-4.2GHz, 17dBi+19dBi, White
101.20 €
Hismart
Products ID: 173170
In supplier warehouse
Available to order: 5 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryDirectional dish 2x2 MIMO antenna designed for 5G, LTE, CBRS, and Wi-Fi applications over long distances and in areas with weak signal coverage.
Key Features
- Dual frequency range operation: 1710–2690 MHz and 3300–4200 MHz
- Antenna gain: 17±1 dBi (1.7–2.7 GHz) and 19±1 dBi (3.3–4.2 GHz)
- 2x2 MIMO support for simultaneous dual-stream transmission and reception
- Dual slant +/-45° polarization
- Connectors: 2x N Female / SMA
- Pole mounting bracket for diameters 30–50 mm
| Frequency range | 1710-2690MHz / 3300-4200MHz |
|---|---|
| Gain | 1x 17±1dBi (1.7-2.7 GHz), 1x 19±1dBi (3.3-4.2 GHz) |
| Polarization | Dual slant +/-45° |
| Connector | 2x N Female/SMA |
| Antenna diameter | 400 mm |
| Mounting | On pole diameter 30-50 mm |
| Lightning protection | DC grounding |
| Operating temperature | -40°C ~ +70°C |
| Color | White |
| Weight | 2 kg |
| Warranty | 24 months |
| EAN | 9990000993499 |
|---|
What pole diameter is supported for mounting?
The antenna mounting kit supports poles with a diameter of 30 to 50 mm.
What frequency bands does this antenna cover?
It covers two frequency ranges: 1710–2690 MHz and 3300–4200 MHz.
