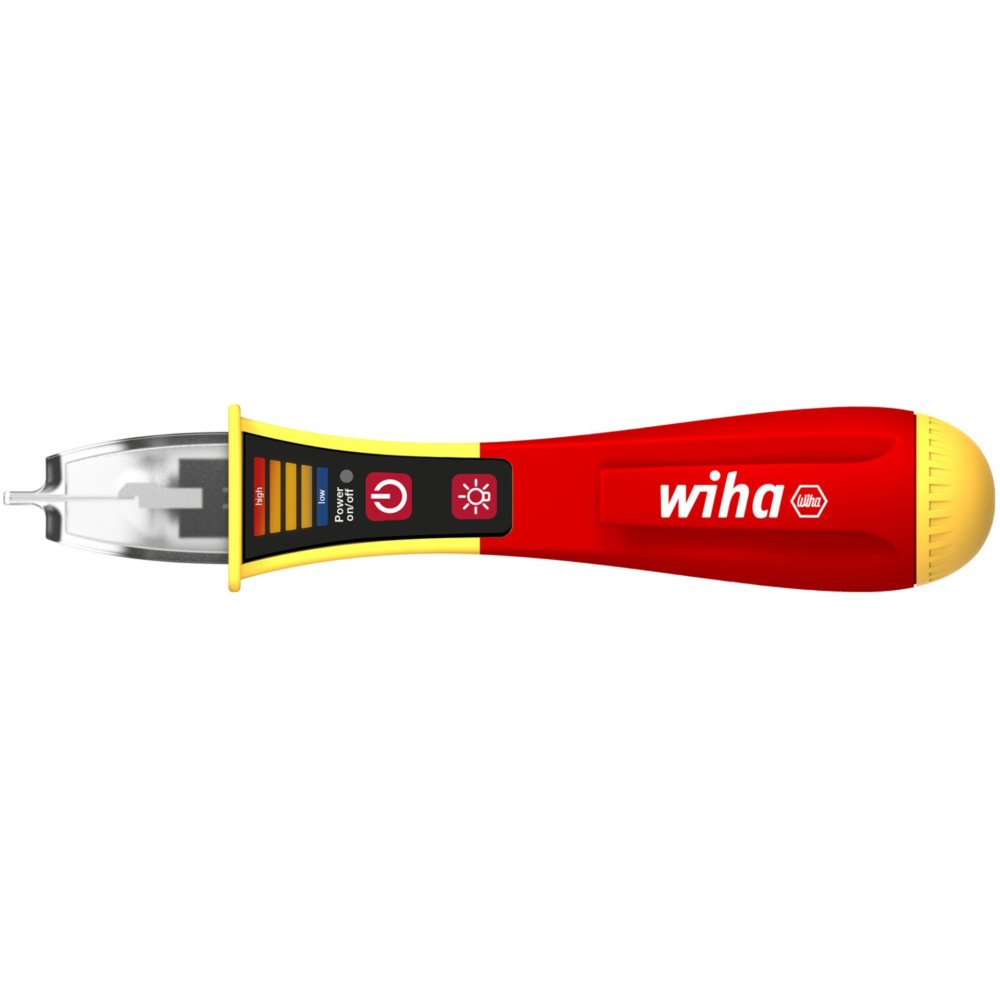

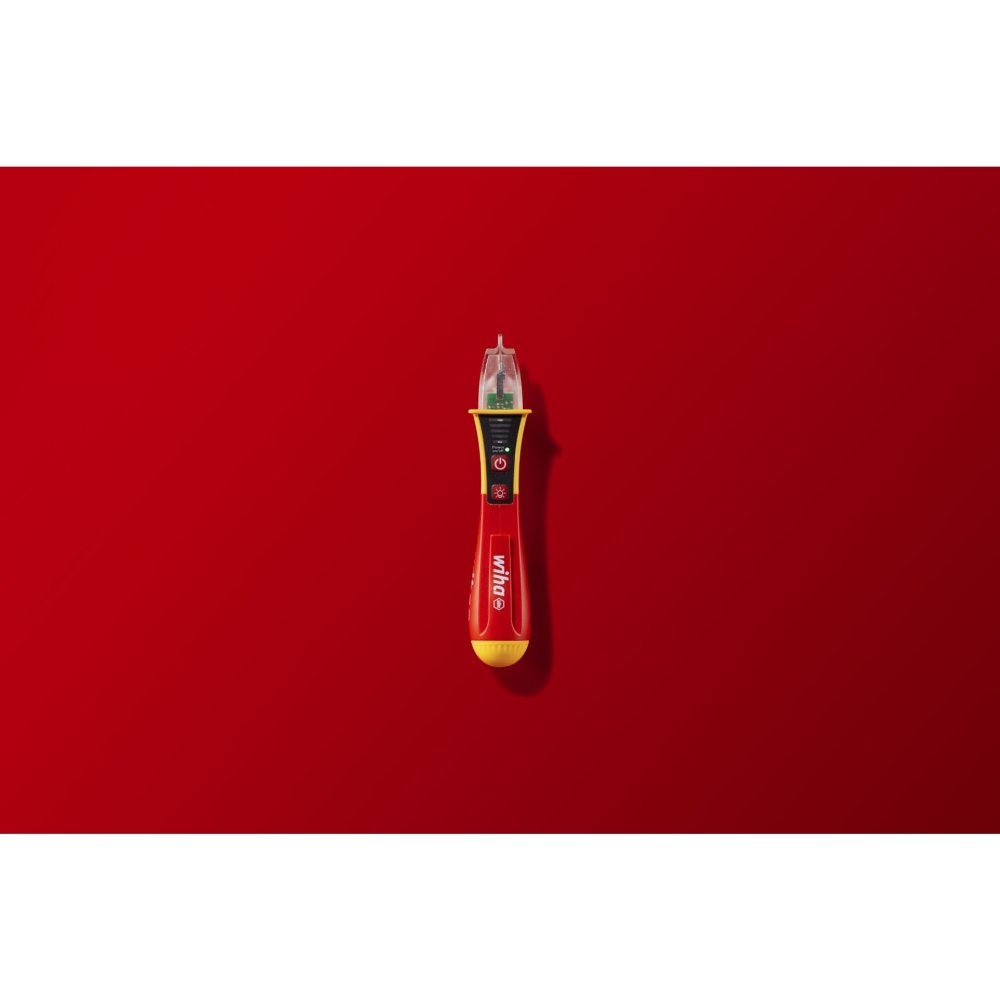

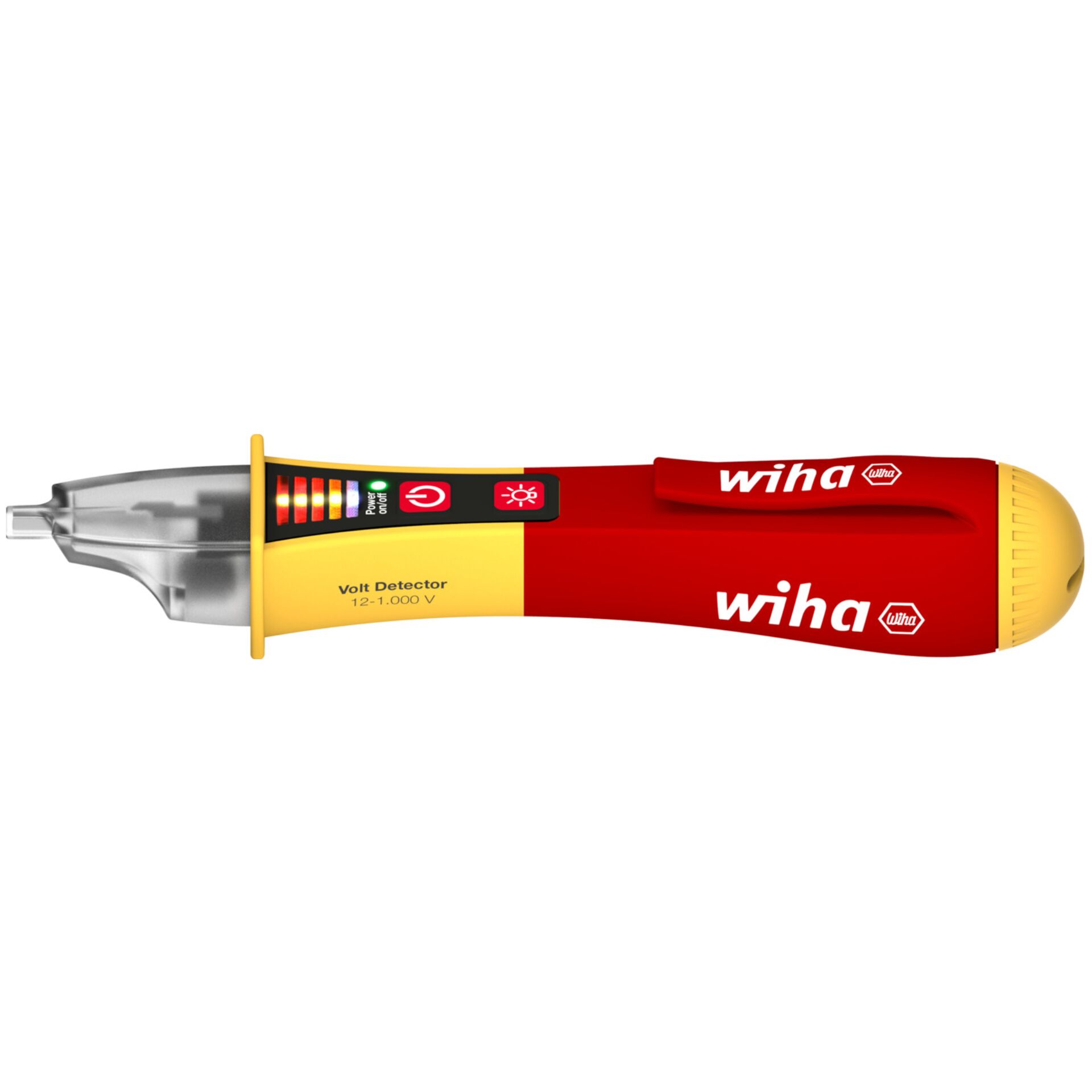

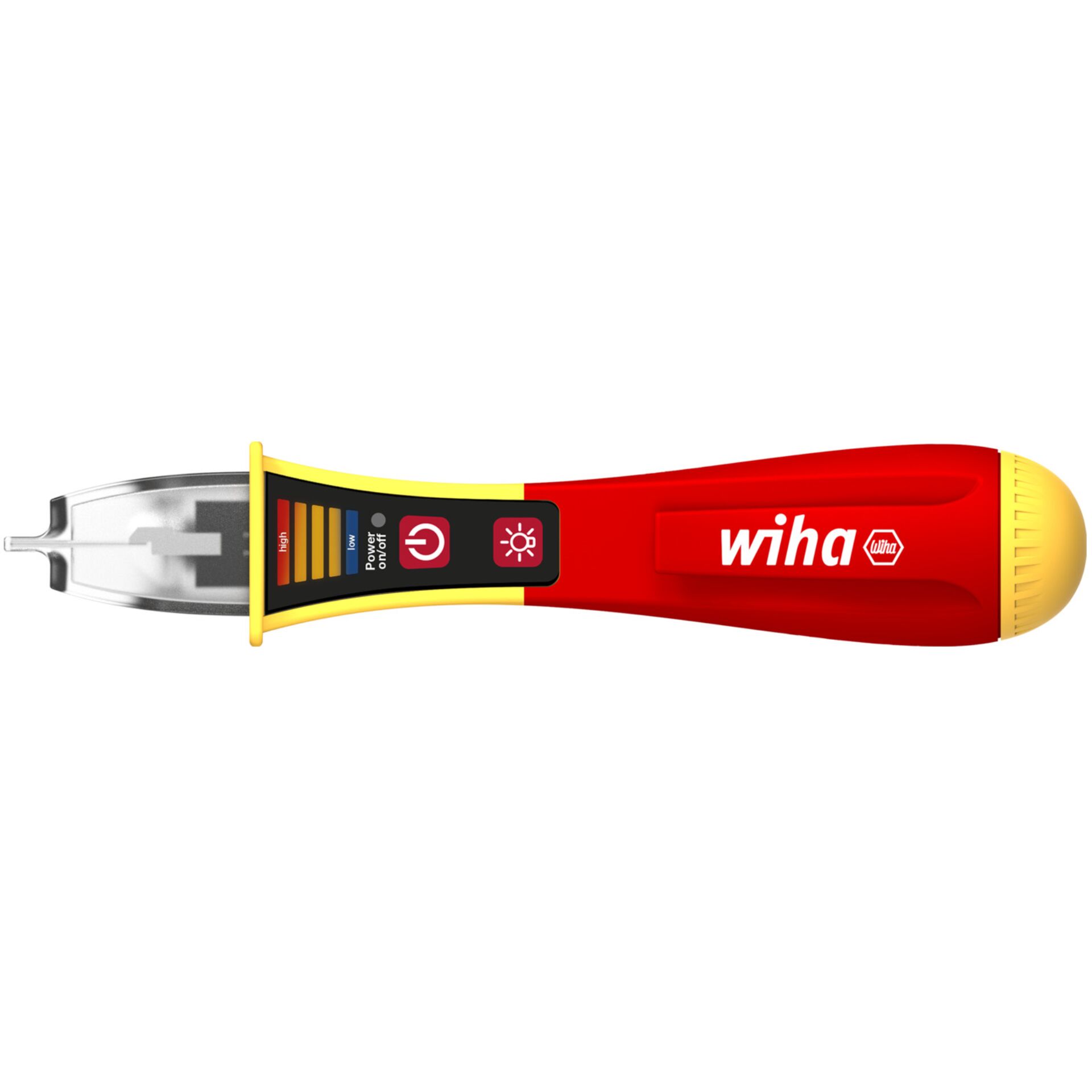

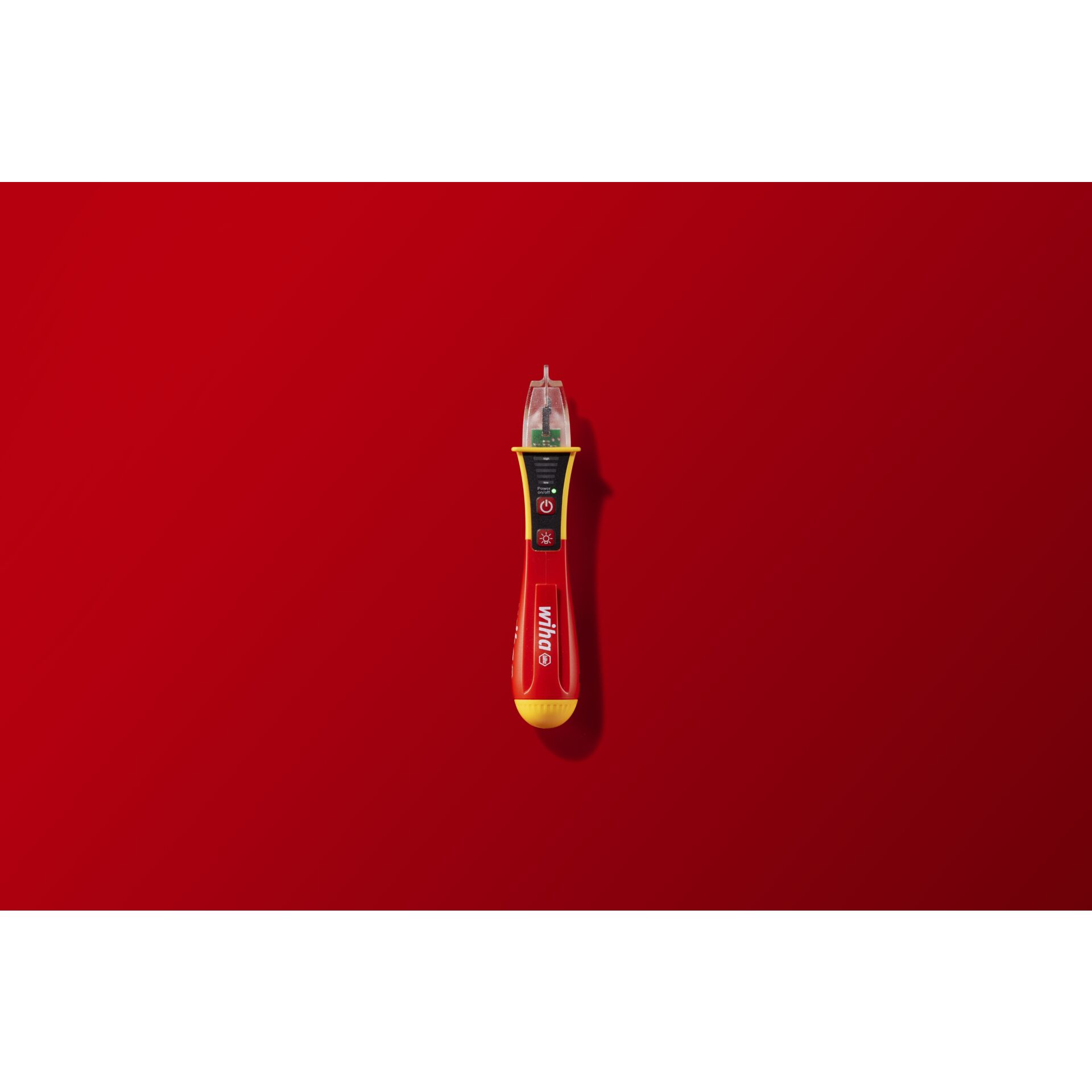

Wiha SB 255-13 Non-Contact Voltage Tester, 12-1000 V AC
41.30 €
Products ID: 182066
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 7–15 business days
Delivery options to:
Choose countryThe Wiha SB 255-13 is a single-pole non-contact voltage tester designed for quick detection of alternating voltage without direct conductor contact.
Key Features
- Measuring range: 12 - 1000 V AC
- Optical and acoustic signal indication
- LED lights up from blue (weak field) to red (strong field)

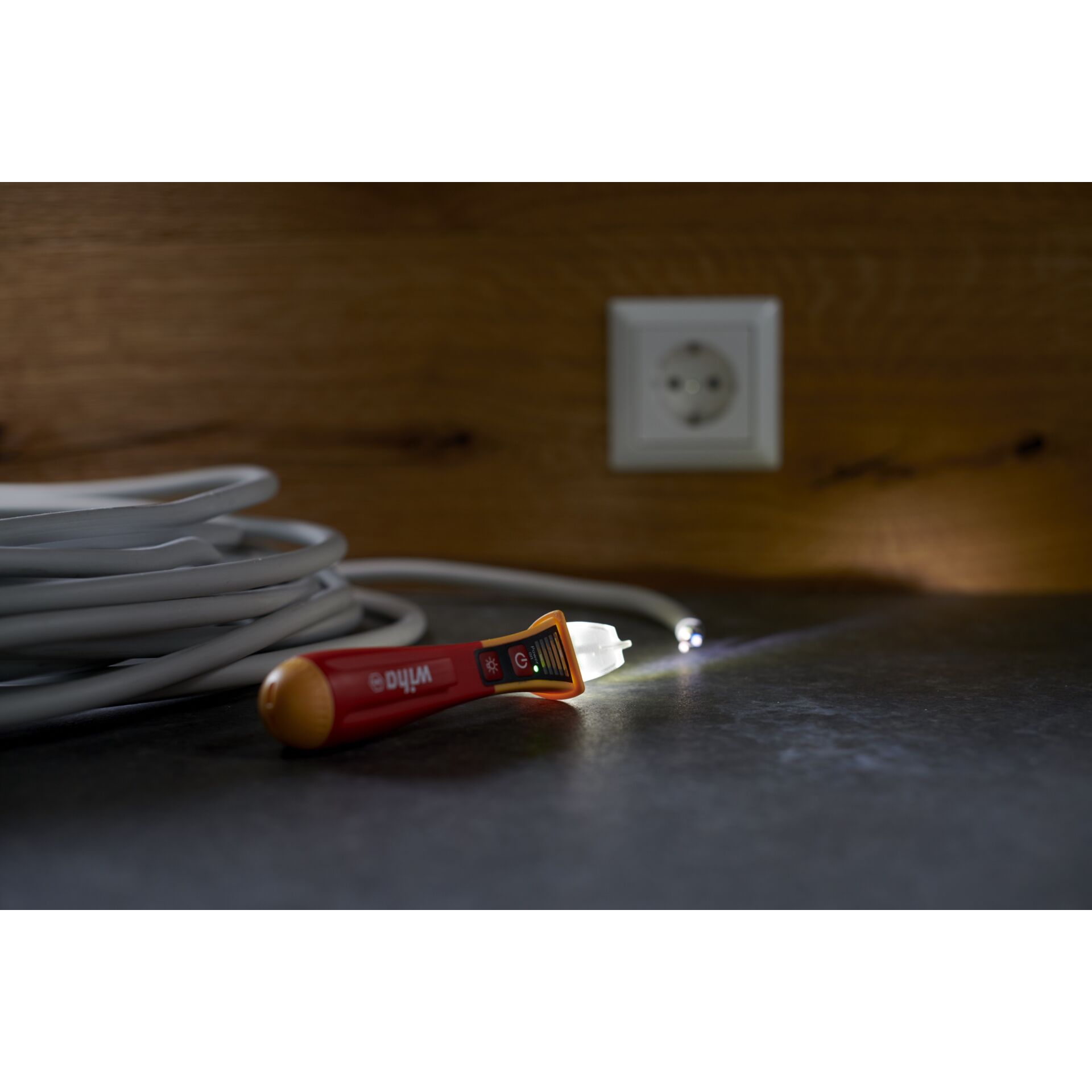

- Integrated bright LED flashlight
- Automatic switch-off after 4 minutes without use
- Compact housing with clip and IP67 protection rating
| Measurement method | Non-contact |
|---|---|
| Voltage measuring range | 12–1000 V AC |
| Measurement category | CAT IV 1 000 VAC |
| Protection class | IP 67 |
| Safety standards | EN 61010-1 / IEC 61326 |
| Power supply | 2x AAA (Micro / R03) |
| Automatic switch-off | After 4 minutes |
| Material | Plastic |
| Dimensions (L x W x H) | 150 x 28 x 28.5 mm |
| Weight without batteries | approx. 40 g |
| Weight with batteries | approx. 50 g |
| EAN | 4010995437978 |
|---|
What type of batteries are required, and are they included?
The tester requires 2x AAA (Micro / R03) batteries, which are included in the package.

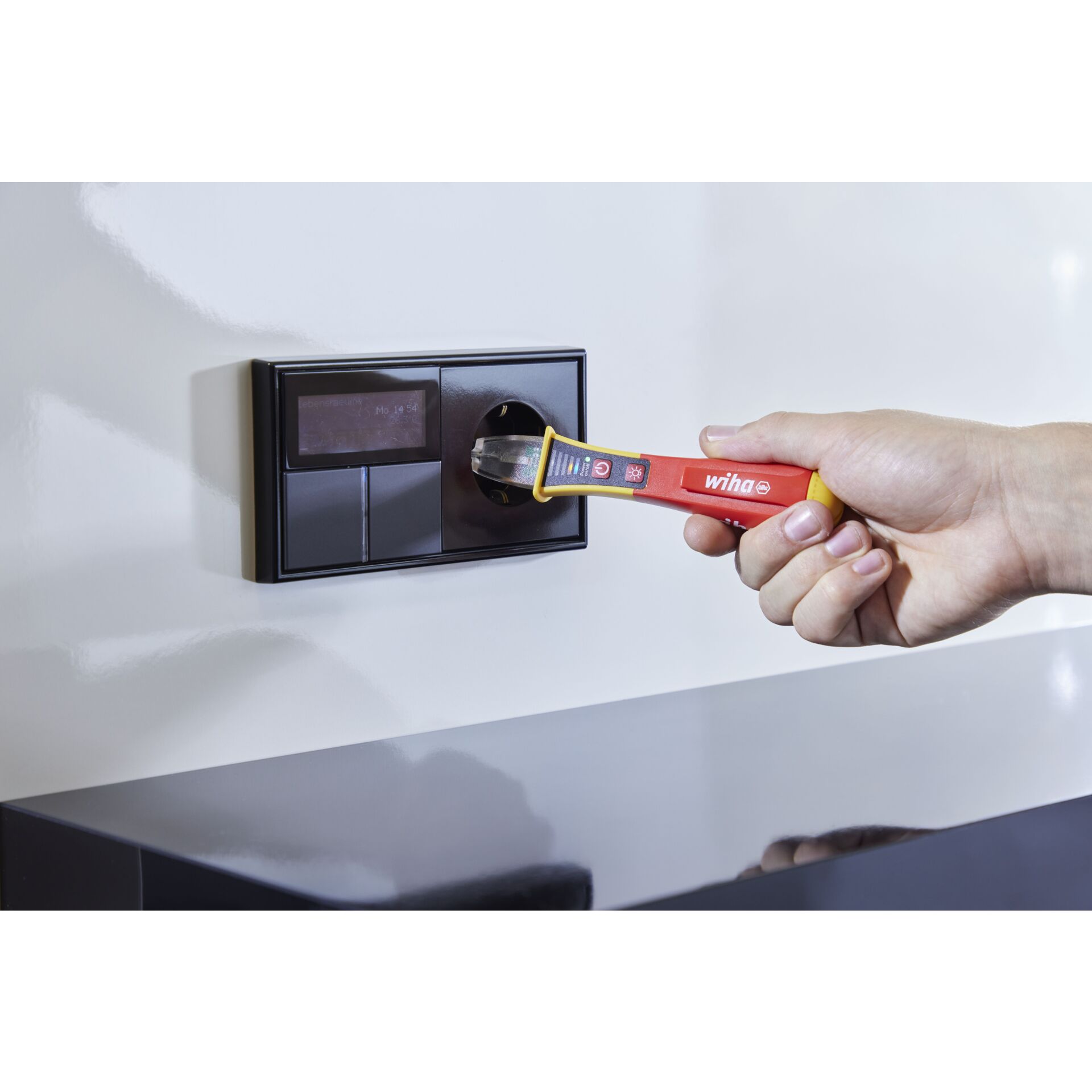

How does the tester signal detected voltage?
It provides both optical and acoustic signals. The integrated LEDs light up from blue for a weak field to red for a strong alternating electric field.
