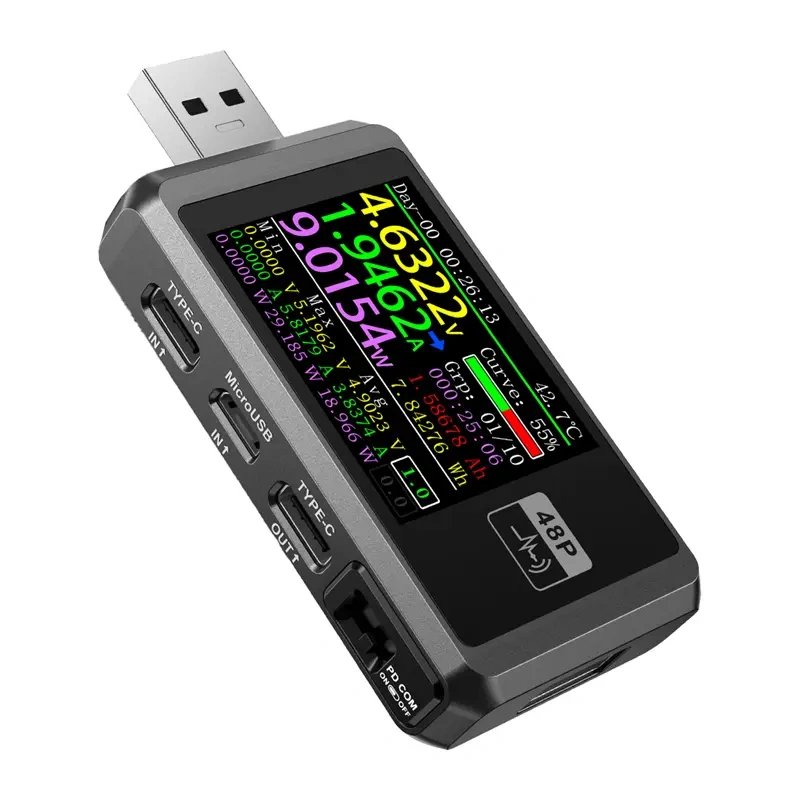

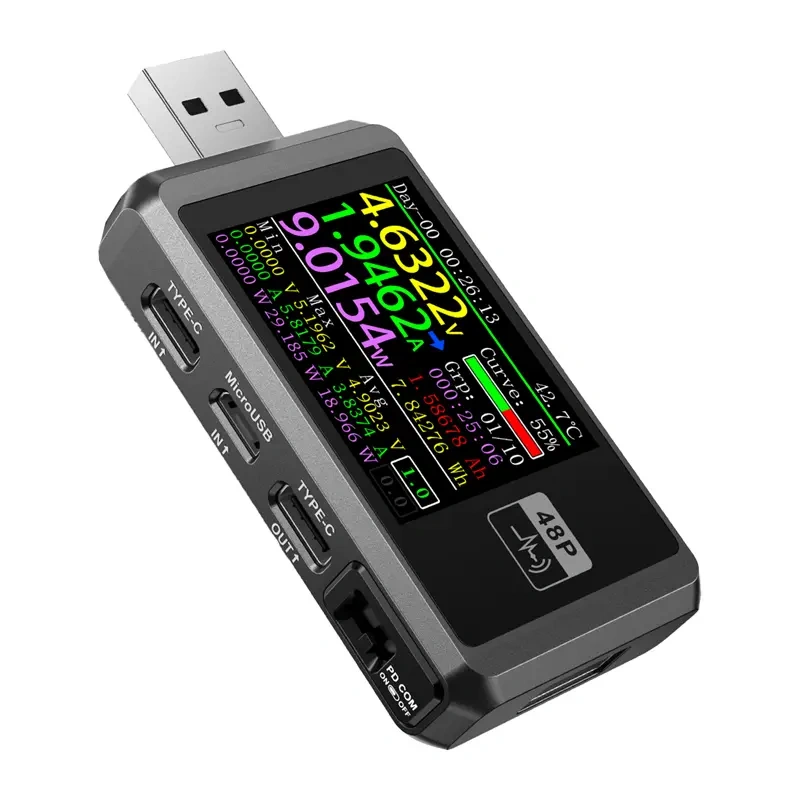

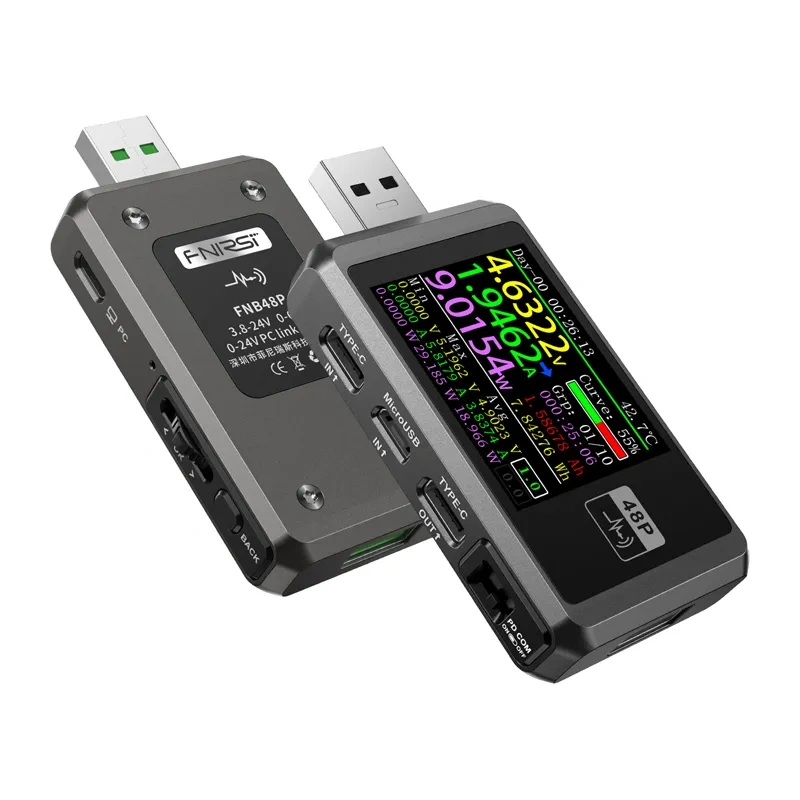

USB Port Tester FNIRSI FNB48P Black
40.20 €
Products ID: 176490
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe FNIRSI FNB48P is an advanced USB port tester with a 1.77-inch HD display, engineered to analyze charging parameters and verify fast charging protocols.
Key Features
- Supports USB-A, USB-C, and Micro USB interfaces up to 6.5 A
- Real-time voltage, current, and power monitoring with up to 0.00001 resolution
- Fast charging protocol recognition (PD, QC, AFC, FCP, SCP, VOOC, and more)
- Cable resistance measurement and PD e-marker chip reading
- Up to 10 measurement data recording groups with battery capacity calculation
- CNC-milled metal casing with a gravity sensor for automatic screen orientation
| Manufacturer | FNIRSI |
|---|---|
| Model | FNB48P |
| Monitored voltage | Range: 4–24 V, resolution: 0.00001 V, accuracy: ± (0.2% + 2) |
| Monitored current | Range: 0–6.5 A, resolution: 0.00001 A, accuracy: ± (0.5% + 2) |
| Monitored power | Range: 0–156 W, resolution: 0.00001 W, accuracy: ± (0.5% + 2) |
| Equivalent load resistance | Range: 0–9999.9 Ω, resolution: 0.0001 Ω, accuracy: ± (0.5% + 2) |
| D+ / D- line voltage | Range: 0–3.3 V, resolution: 0.001 V, accuracy: ± (1.0% + 2) |
| Device temperature | Resolution: 1 °C, accuracy: ± (1.2% + 3) |
| Capacitance | Range: 0–9999.99 Ah, resolution: 0.00001 Ah |
| Energy consumed | Range: 0–9999.99 Wh, resolution: 0.00001 Wh |
| Wire resistance | Range: 0–9999.9 Ω, resolution: 0.0001 Ω |
| Operating time | Maximum: 99 days, 23 hours, 59 minutes, 59 seconds, resolution: 1 s |
| Data recording time | Maximum: 999 hours, 59 minutes, 59 seconds, resolution: 1 s |
| EAN | 5905156102224 |
|---|
Which interfaces are supported by the tester?
The tester supports USB-A in/out, USB-C in/out, Micro USB in, and a dedicated PD COM interface.
Which fast charging protocols can the device detect?
The tester recognizes Apple 2.4A, QC2.0, QC3.0, USB Power Delivery, Samsung AFC, Huawei FCP and SCP, OPPO VOOC, DASH, WARP, SuperVOOC, as well as PE+ 1.1 and PE+ 2.0.
