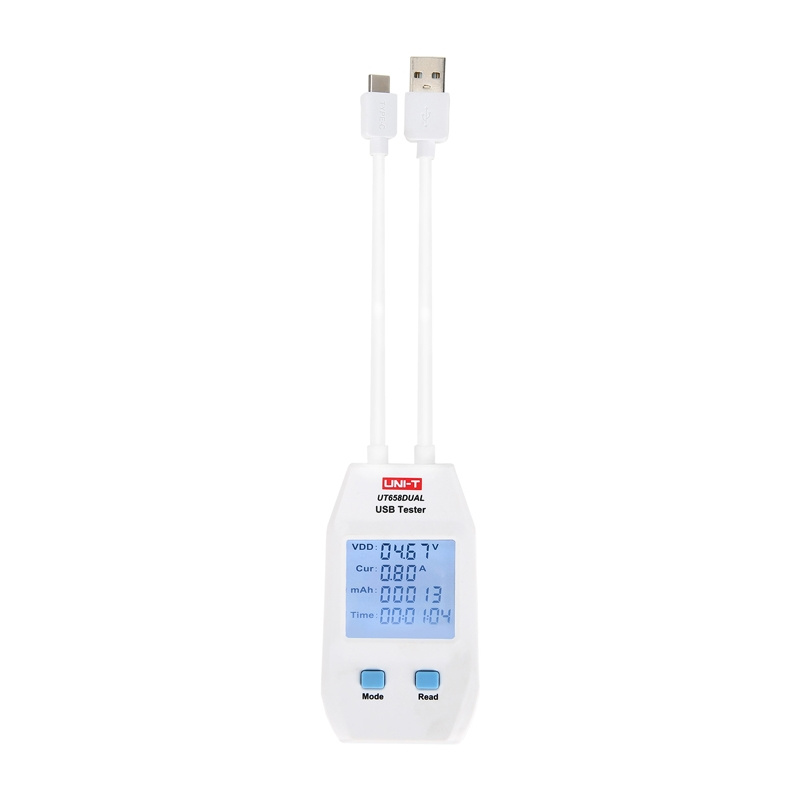

UNI-T UT658DUAL USB Type-A and Type-C Tester
Price: 17.80 €
| Products ID: | 175383 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750565896 |
Delivery options to:
Choose countryThe UNI-T UT658DUAL is a USB tester designed to test chargers, cables, and devices powered via USB Type-A and Type-C ports. It allows you to monitor voltage, current, power consumption, capacity, and circuit resistance.
Key Features
- Supports USB Type-A and USB Type-C connections
- Voltage measurement range from 4 to 24 V DC
- Current range up to 3 A (USB-A) and up to 5 A (USB-C)
- QC 3.0 (USB-A) and QC 4.0 (USB-C) fast charging support
- Internal storage for up to 10 sets of measurement data
- Recording timer up to 99 hours, 59 minutes, and 59 seconds
| Manufacturer | UNI-T |
|---|---|
| Model | UT658DUAL |
| Supported connectors | USB Type-A, USB Type-C |
| Voltage range | 4-24 VDC (resolution: 0.01 V) |
| Current range (USB-A) | 0.05-3 A DC (resolution: 0.01 A) |
| Current range (USB-C) | 0.05-5 A DC (resolution: 0.01 A) |
| Capacity range | 0-99999 mAh (resolution: 1 mAh) |
| Energy | Up to 1000 Wh |
| Circuit resistance | 1-480 Ω |
| D+/D- line voltage | 0-3.3 V |
| Fast charging protocols | QC 3.0 (USB-A), QC 4.0 (USB-C) |
| Recording time | Up to 99 h 59 min 59 s |
| Data storage | 10 sets |
| Power supply | Powered via USB port |
| Dimensions | 93 × 55 × 13 mm |
| Net weight | 65.8 g |
| Certifications | CE, UKCA |
What ports are available on the UNI-T UT658DUAL?
The tester is equipped with both USB Type-A and USB Type-C input and output interfaces.
Does this tester require external batteries?
No, the device is powered directly from the connected USB port.
What fast charge protocols does it recognize?
It recognizes QC 3.0 via the USB-A port and QC 4.0 via the USB-C port.
