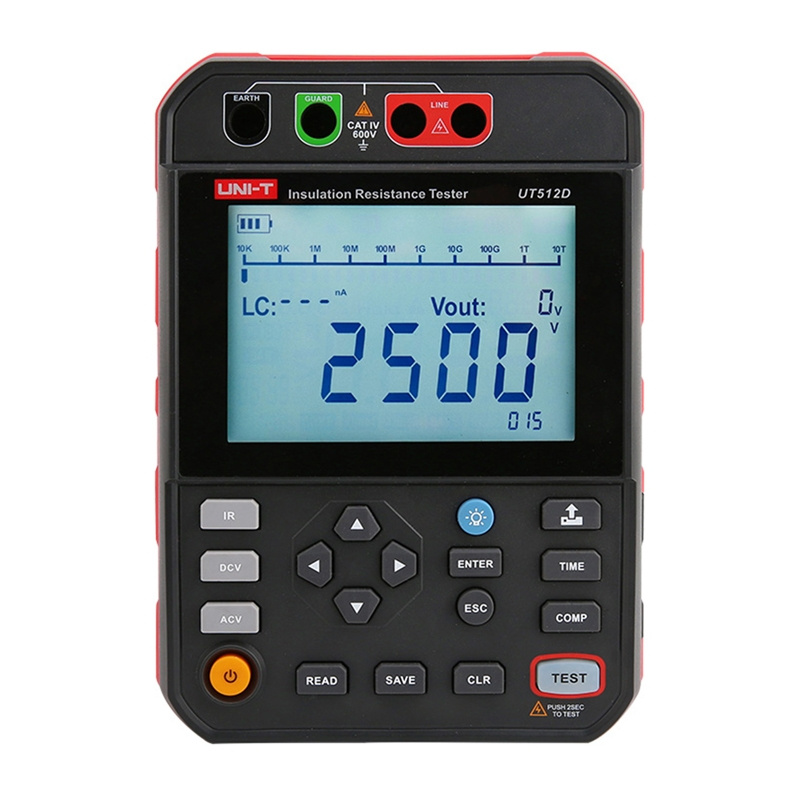

Uni-T UT512D High-Voltage Insulation Resistance Tester

Price: 257.20 €

Products ID:	176994
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750551257

Delivery options to:

Choose country

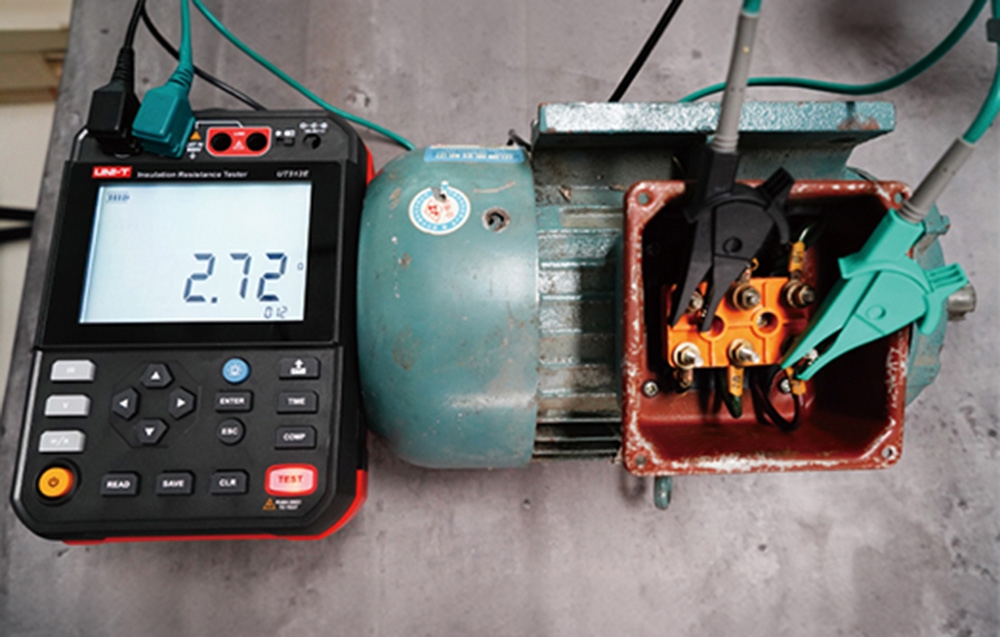

The Uni-T UT512D is a digital high-voltage insulation resistance tester engineered for demanding electrical installation and maintenance work in power generation, telecommunications, and industrial environments.

Key Features

Selectable test voltages: 250V, 500V, 1000V, and 2500V
Supports polarization index (PI) and dielectric absorption ratio (DAR) measurements
Automatic discharge and high-voltage warning alarm
Internal data logging memory for up to 999 measurements
PC connectivity and data export via USB

Manufacturer	Uni-T
Model	UT512D
Test voltages	250V / 500V / 1000V / 2500V
Maximum output voltage	up to 2.5 kV
Insulation resistance measurement	up to 249 GΩ (accurate) and up to 1.00 TΩ (indicative)
Short-circuit current measurement	approx. 3.5 mA
Data memory	up to 999 measurements
PC communication	via USB
Voltage category	CAT IV 600V
Power supply	8 × LR14 alkaline batteries
Dimensions	238 × 166 × 90.5 mm
Weight	approx. 1800 g (with batteries)
Certifications	CE, UKCA

What test voltage settings are supported by the Uni-T UT512D?

The tester supports four test voltage levels: 250V, 500V, 1000V, and 2500V.

What items are included in the package?

The package includes the Uni-T UT512D tester, 3 test leads (red, black, green), a USB cable, a user manual, a carrying strap, and 8 LR14 alkaline batteries.

How many records can be stored in the internal memory?

The device features data logging capability for up to 999 measurement records.
